Ponte Wireless Dahua - WBC5-30AC-05P - Frequenza di comunicazione 2.4/5Ghz - Banda 867Mbps - Supporta alimentazione PoE - Antenna integrata - Portata di comunicazione fino a 5Km - 2x Porte Ethernet: 1xPoE 1000Mbps/1x LAN 100Mbps - Alimentatore incluso - Protezione IP65 - Bridge network Mode - Connessione Wireless fino a 8 terminali - Reset Button - Facile da installare - Per installazione a palo.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

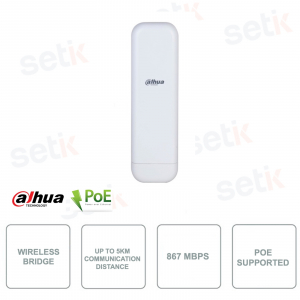

WIRELESS BRIDGE - FREQUENZA 2.4/5GHZ - 867MBPS - SUPPORTA POE - COMUNICAZIONE FINO A 5KM - ANTENNA INTEGRATA - DAHUA - WBC5-30AC-05P

Dettagli Prodotto:

-

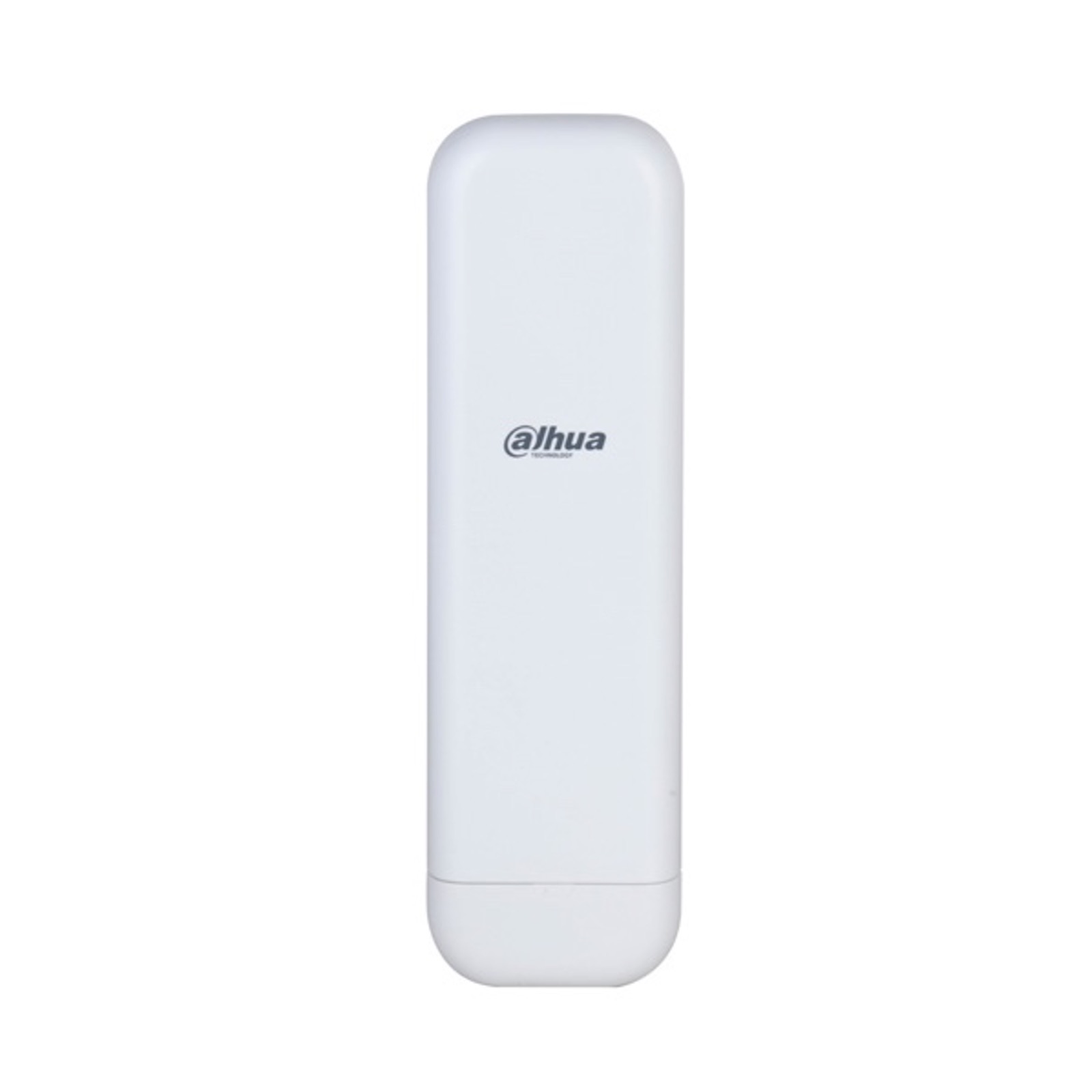

Ponte Wireless - Dahua - WBC5-30AC-05P
-
Frequenze di funzionamento: 2.4/5Ghz
-
Banda 867Mbps
-
Portata di comunicazione fino a 5Km
-
Protocollo di comunicazione wireless IEEE802.11a/n/ac
-
Connessione Wireless fino a 8 terminali
-
2 Porte Ethernet
-
1x Porta PoE 1000Mbps
-
1x porta LAN 100Mbps
-
Tasto di reset
-
Indicatore luminoso di stato e di funzionamento
-
Antenna direzionale integrata
-
Network Mode: Bridge
-
Configurabile da web
-
Protezione IP65
-
Protezione dai fulmini 6kV
-
Ideale per installazione su palo
-
Staffa di installazione su palo inclusa
-
Temperatura di funzionamento supportata ampia: -30°C - +65°C
-
Peso netto: 0.37Kg
-
Dimensioni: 268x82x35mm
Scheda tecnica
| WBC5-30AC-05P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 1 × PoE RJ–45 (1000 Mbps); 1 × LAN RJ–45 (100 Mbps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Module Connector | 1 × PoE RJ–45(IN: 30 W) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless Standard | 2.4GHz: 802.11b/g/n; 5GHz: 802.11a/n/ac | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | PoE IN: 802.3at; PoE OUT: 802.3af | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Included Power Adapter | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Included Antenna | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Ports | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port Speed | 10/100/1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reset Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | < 30 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Port | 2 × RJ–45; 1 × Reset | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Indicator Light | 1 × power indicator; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terminal Communication Protocol | IEEE802.11a/n/ac | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Access | Ethernet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Frequency | 2.4 GHz(2412 MHz–2472 MHz); 5.150 - 5.850 GHz(5.15 GHz–5.25 GHz and 5.735 GHz–5.835 GHz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modulation Type | OFDM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Antenna | Built-in directional antenna | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Antenna Interface | IPEX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Antenna Direction Angle | Horizontal 30°, vertical 20° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Polarization | Vertical/horizontal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cross-polarization Isolation | > 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Antenna Gain | 12 dBi | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. VSWR | < 2.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmission Distance | 5 km (16,404.20 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Air Interface Rate | 867 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP65 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Mode | Bridge | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Mode | Access point; client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Device Type | 802.11a/b/g/n/ac | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Channel Width | 20/40/80 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standard TX Power | Adapt to the regulations of countries or regions. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Connected Wireless Terminals | 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Funtion | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Encryption Mode | WPA-PSK/AES/TKIP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management and Log | Syslog;NTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Webpage Configuration Management | Web configuration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Firmware Update | Web update | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless Certification | CE/FCC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security Mechanism | WPA/WPA2; hidden SSID | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | UDP; TCP; HTTPS; IPv4; NTP; DHCP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TDMA Enhancement | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TDMA | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 0.46 kg (1.01 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.37 kg (0.82 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 297 mm × 110 mm × 108 mm (11.7" × 4.33" × 4.25") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Memory | 1 Gb | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Pole mounting bracket included | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input | 48 V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Statics Protection | Air discharge: 15 kV; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lighting Protection | Common mode: 6 kV; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Pole mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ulteriori dettagli

Download
Scaricate il Depliant Inglese
