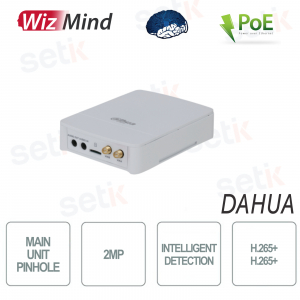

Dahua - 2MP Covert Pinhole Wizmind Network Camera-Main Box Funzioni intelligenti Audio Allarme

Dahua - 2MP Covert Pinhole Wizmind Network Camera-Main Box Funzioni intelligenti Audio Allarme

-58%

Dahua -  2MP Covert Pinhole Wizmind Network Camera-Main Box - Unità principale Pinhole con sensore CMOS da 1/2,8 pollici - PoE - H.265+ - ROI - WDR - 3D DNR - HLC - Funzioni intelligenti: intrusione, oggetti abbandonati, riconoscimento volti - 2x ingresso, 2x uscita Allarme - 1x entrata, 1x uscita Audio



Riferimento: IPC-HUM8241-E2

Marca: Dahua

EAN: 6923172519849

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

L'azienda asiatica, nata nel 2001, deve la sua fama all'eccellente qualità dei propri prodotti in termini di prestazioni e capacità. La gamma di prodotti Dahua spazia dai classici sistemi TVCC fino a sistemi di sicurezza più complessi e articolati: non solo videosorveglianza dunque, ma anche controllo accessi, sistemi videocitofonici, prodotti per il rilevamento termico e molto altro ancora. Dahua è da anni un solido punto di riferimento sul mercato TVCC internazionale, grazie agli enormi investimenti dedicati ogni anno alla Ricerca e Sviluppo. Dal 2016 ad oggi Dahua ha registrato oltre 800 brevetti col proprio marchio. Attualmente Dahua può vantare di essere tra i primi 10 leader mondiali nel mondo della sicurezza. Quest'anno si è aggiudicato la 2° posizione nella classifica "2021 TOP SECURITY 50".

SERIE OEM: I prodotti a marchio Dahua venduti da Setik SRL possono eventualmente essere consegnati come prodotti OEM, ovvero prodotti che sono a tutti gli effetti originali Dahua, ma che presentano una veste estetica differente riservata al mercato online (generalmente per quanto riguarda logo e imballo). Ciò non incide in alcun modo sulla garanzia e sulle caratteristiche tecniche del prodotto, che è sempre autentico Dahua, nè tantomeno su eventuali aggiornamenti e funzionalità.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. è uno dei principali fornitori mondiali di soluzioni di videosorveglianza, con più di 13.000 dipendenti e 35 filiali attive in tutto il mondo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Prodotti Dahua: Telecamere, DVR, NVR – Prezzi e Offerte | Setik [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Catalogo Dahua completo per installatori, professionisti e utenti finali: DVR, NVR, telecamere IP, software DSS. Spedizione rapida, promo e sconti quantità [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


DAHUA SOTTOCOSTO×


 SCONTI INCREDIBILI
su una selezione di prodotti DAHUA
 Scoprili subito >>

FUORI TUTTO ×


  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>



DAHUA - UNITA' CENTRALE PINHOLE - SENSORE 1/2.8" - 1080P - PoE - FUNZIONI INTELLIGENTI

Prodotto Marca Dahua
Dahua -  2MP Covert Pinhole Wizmind Network Camera-Main Box - Unità principale Pinhole con sensore CMOS da 1/2,8 pollici
PoE - H.265+ - ROI - WDR - 3D DNR - HLC
Funzioni intelligenti: intrusione, oggetti abbandonati, riconoscimento volti
2x ingresso, 2x uscita Allarme - 1x entrata, 1x uscita Audio

Dettagli prodotto




Scheda tecnica

Model
IPC-HUM8241-E2
Camera
Image Sensor 1/2.8" 2 Megapixel progressive CMOS
Max Resolution 1920 (H) × 1080 (V)
ROM 128MB
RAM 1GB
Scanning System Progressive
Electronic Shutter Speed Electronic Shutter Speed
Min. Illumination 0.005 Lux@F2.0 (Color,30 IRE) 0.0005 Lux@F2.0 (B/W,30 IRE)
S/N Ratio >56 dB
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture 2.8 mm: F2.0
Field of View L1/L4: Horizontal: 105°; Vertical: 58°; Diagonal: 118° L3: Horizontal: 114°; Vertical: 60°; Diagonal: 136° L5: Horizontal: 109°; Vertical: 58°; Diagonal: 127°
Iris Control  Fixed
Close Focus Distance 2.8 mm: 0.5 m
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection
of vehicle and human); loitering detection, people gathering, and parking detection
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+ Smart H.264+
Video Frame Rate Main stream: 1920 × 1080 @25/30 fps
Sub stream: 704 × 576 @25 fps; 704 × 480 @30 fps
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Manual; auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8, IE9, and IE11 Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Certification
Certifications CE-LVD:EN62368-1;
CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B
Audio Input 1 channel (3.5 mm JACK port)
Audio Output 1 channel (3.5 mm JACK port)
Alarm Input 2 channels in: 5 mA 3V–5V DC
Alarm Output 2 channels out: 1,000 mA 30V DC/500 mA 50V DC
Power
Power Supply 12V DC/PoE(802.3af)
Power Consumption Basic: 2.8W (12V DC); 3.5W (PoE)
Max. (Intelligence + WDR): 4.5W (12V DC); 5.5W (PoE)
Enviroment
Operating Temperature –40°C to +60°C (–40°F to 140°F)
Operating Humidity ≤95%
Storage Temperature –40°C to +60°C (–40°F to 140°F)
Protection IP66 (L3)
Structure
Casing Metal
Product Dimensions E1: 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") L1: ?30.5 mm × 48.7 mm (?1.20" × 1.92")
L3: ?30.5 mm × 57.6 mm (?1.20" × 2.27")
L4: 35 mm × 35 mm × 26.7 mm (1.38" × 1.38" × 1.05") L5: 35 mm × 35 mm × 28.4 mm (1.38" × 1.38" × 1.12")
Net Weight 210 g (0.5 lb)
Gross Weight 376 g (0.8 lb)

Ulteriori dettagli



Download

Depliant in inglese.




Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
