156122.363.WH1 | RIPETITORE WIRELESS CON IL SUPPORTO DI FOTO-VERIFICA E CONNESSIONE ETHERNET

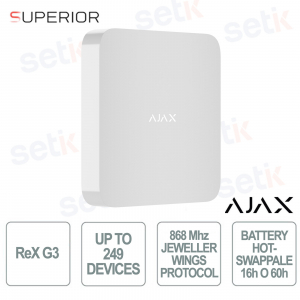

L’Ajax Superior ReX G3 Jeweller, 156122.363.WH1, bianco è un range extender radio professionale progettato per ampliare la copertura e la stabilità delle comunicazioni nei sistemi Ajax Grade 3, garantendo prestazioni affidabili anche in strutture complesse e di grandi dimensioni. Grazie ai protocolli Superior Jeweller e TurboWings, assicura trasmissioni rapide, supporto completo alla foto-verifica MotionCam e una portata radio fino a 3.500 m in campo aperto. Integra inoltre la connessione Ethernet per garantire stabilità anche in ambienti con forti interferenze, mentre le batterie hot-swappable da 16 o 60 ore assicurano continuità operativa. Certificato EN 50131 Grade 3 e dotato di protezioni antisabotaggio avanzate, si installa facilmente tramite QR code e si configura rapidamente dall’app Ajax.
Specifiche principali:
- Copertura radio fino a 3.500 m con protocolli Superior Jeweller e TurboWings
- Supporto foto-verifica MotionCam per valutazioni rapide degli eventi
- Connessione Ethernet per massima affidabilità in contesti difficili
- Protezioni antisabotaggio Grade 3: anti-jamming, tamper, autenticazione dispositivi
- Batteria hot-swappable con autonomia da 16 a 60 ore (a seconda del modello)
- Installazione rapida con QR code e configurazione tramite app Ajax
- Design compatto bianco, con alimentazione 110–240 V AC e protezione IP20
Ulteriori dettagli
Scheda tecnica
| 156122.363.WH1 | |
| Connection possibilities | Number of Superior ReX G3 Jeweller connected to the hub up to 5 For all compatible hub models. Number of devices connected to Superior ReX G3 Jeweller up to 249 Depends on the hub model |
| Wireless communication | Data transfer protocols Superior Jeweller To transmit commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweller protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled. Jeweller To transmit commands, alarms, and events from devices without Superior Jeweller support. Wings To transmit large data packets, such as firmware updates, and photos. Frequency bands 865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Radio communication range up to 3,500 m (TBC) up to 11,450 ft (TBC) Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device and the hub model. Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Advanced encrypted communication The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity. Enhanced frequency hopping To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies. |
| Recommendations | The device operating voltage is 110–240 V~. Superior ReX G3 Jeweller is designed for indoor installation only. |
| Communication channels | Ethernet 1 × 8P8C socket Up to 100 Mbps. External antenna connectors Jeweller Wings The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately. |
| Delivery time | Alarm delivery time to the hub 0.3 s Photo delivery time to the hub 18 s Via Superior ReX G3 Jeweller using the Wings channel. Delivery time depends on the settings. 10 s Via Superior ReX G3 Jeweller using the Ethernet channel. Delivery time depends on the settings. |
| Sabotage protection | Tamper alarm The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. Protection against spoofing device authentication Frequency hopping The system sends notifications to all users and the security company of jamming or losing connection with the devices. Jamming alert Superior ReX G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds. Communication loss detection after 36 s Detection time depends on the Jeweller/Fibra settings. |
| Power supply | Main power supply type Type A Device operating AC voltage range 110–240 V, 50/60 Hz From the main power supply. Up to 15 W of mains power consumption. Device operating DC voltage range 6.0–8.2 V⎓ Low battery voltage 7.0 V⎓ Low battery recovery voltage 8.135 V⎓ End-of-life battery voltage 6.0 V⎓ Superior ReX G3 Jeweller is switched off. Minimum backup battery energy level in the charged stat 100% |
| Autonomous operation | On Superior Internal Battery (16h) up to 16 hours When Ethernet is enabled. Superior Internal Battery (16h) is not included in the complete set. On Superior Internal Battery (60h) up to 60 hours When Ethernet is enabled. Superior Internal Battery (60h) is not included in the complete set. |
| Current consumption | Maximum at nominal voltage 87 mA Quiescent at nominal voltage* up to 87 mA When Ethernet is enabled up to 29 mA When Ethernet is disabled. |
| Enceinte | Dimensions 216 × 216 × 45 mm 8.50″ × 8.50″ × 1.77″ Poids 1,200 g 2.65 lb Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% Protection class IP20 |
| Colors | White |
| Complete set | Superior ReX G3 Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit Quick start guide |
| Warranty | 24 months |
