38188.92.WH1 | MODULO WIRELESS PER CONNETTERE I SISTEMI DI SICUREZZA AJAX A TRASMETTITORI VHF DI TERZE PARTI

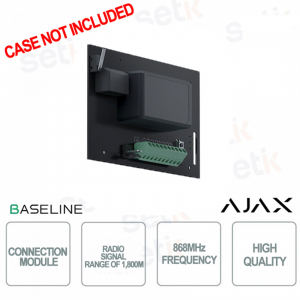

Il Ajax vhfBridge Jeweller Without Casing è un modulo professionale pensato per l’integrazione avanzata dei sistemi di sicurezza Ajax con trasmettitori VHF di terze parti, ideale per installazioni personalizzate all’interno di quadri o contenitori tecnici. Grazie alla comunicazione radio sicura Jeweller e alla gestione completa da app, consente una trasmissione affidabile degli eventi verso le centrali di monitoraggio, mantenendo elevati standard di sicurezza e continuità operativa. La versione senza involucro garantisce massima flessibilità installativa in contesti professionali complessi.
Specifiche principali:
- Trasmissione di tutti gli eventi Ajax verso trasmettitori VHF
- Comunicazione Jeweller bidirezionale e criptata fino a 1.800 m
- 8 uscite configurabili positive o negative per integrazione VHF
- Protezione antisabotaggio con tamper anti-apertura e anti-rimozione
- Supporto alimentazione di rete e batteria di backup fino a 75 ore
- Gestione e configurazione remota tramite app Ajax
Ulteriori dettagli
Scheda tecnica
| 38188.92.WH1 | |
| Communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | up to 25 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,800 m Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming |
| Power supply | |
| Main | 100–240 V, 50/60 Hz |
| Backup | 12 V⎓ battery, 4 or 7 Ah A backup battery is not included. The battery should have a full charge cycle of up to 30 hours. |
| Calculated battery life | up to 75 hours |
| VHF transmitter power | 10.5–15.5 V⎓, up to 2 A |
| Key features | |
| Control via smartphone | Users can set up the module configurations and receive notifications in Ajax apps |
| Number of potential outputs | 8 |
| Compatibility with third-party VHF radio transmitters | Any VHF transmitter with relay inputs can be connected to vhfBridge Jeweller |
| Adjustable pulse duration | from 0.5 to 255 s |
| Operation modes |
|
| Output types |
|
| Recommendations | The device is designed for indoor use only. |
| Sabotage protection | |
| Protection against spoofing | device authentication |
| Tamper alarm | 2 tampers Notifications on attempts to detach the device from the surface or remove it from the mounting panel |
| Communication loss detection | after 36 s Detection time depends on the Jeweller or Jeweller/Fibra settings |
| Enclosure | |
| Dimension | 145 × 89 × 51 mm |
| Weight | 165 g |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards |
| Operating humidity | up to 75% Humidity of up to 93% is certified according to UL/ULC standards |
| Complete set | vhfBridge Jeweller Power cable 12 V battery connection cable Installation kit Casing Quick start guide |
| Warranty | 24 months |
