ART-ARC3800H-03-FW2-868 - è un kit di allarme wireless completo, progettato per proteggere abitazioni, negozi e uffici con tecnologia avanzata. Supporta fino a 150 periferiche wireless tra sensori PIR, rilevatori porta, telecomandi e sirene, garantendo flessibilità e sicurezza. Grazie al collegamento Ethernet, Wi-Fi e rete cellulare 4G con doppia SIM, assicura continuità operativa anche in caso di guasti di rete. Integra funzioni di verifica video con telecamere IP, invio di immagini dai sensori PIR-Cam, notifiche tramite SMS, chiamata vocale e gestione remota da app. La batteria ricaricabile interna garantisce fino a 12 ore di autonomia, mentre la comunicazione bidirezionale con crittografia AES128 e hopping di frequenza assicura massima stabilità. È la soluzione ideale per chi cerca un sistema di allarme moderno, scalabile e facilmente gestibile anche da remoto. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

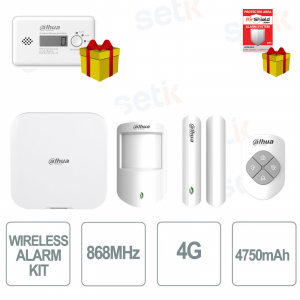

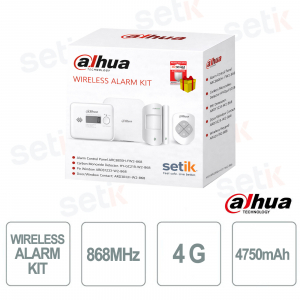

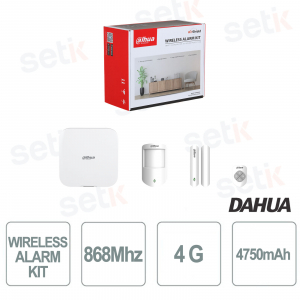

ART-ARC3800H-03-FW2-868 | KIT ALLARME DAHUA - WIFI & 4G - FREQUENZA 868MHz

Il Dahua ART-ARC3800H-03-FW2-868 è un kit di allarme wireless pensato per garantire protezione avanzata in abitazioni, ville, appartamenti e negozi. Grazie alla compatibilità con 150 periferiche wireless, al supporto multi-rete Ethernet, Wi-Fi e 4G con doppia SIM, e alle funzioni di videoverifica con telecamere IP, assicura affidabilità, flessibilità e controllo da remoto. Dotato di batteria ricaricabile da 4750 mAh, comunicazione bidirezionale con crittografia AES128 e aggiornamenti cloud, offre una soluzione completa, moderna e facilmente gestibile tramite app.
Specifiche principali:
- Supporto fino a 150 dispositivi wireless
- Connettività Ethernet, Wi-Fi e 4G con doppia SIM
- Videoverifica con PIR-Cam e upload di video allarme
- Comunicazione sicura con crittografia AES128 e frequency hopping
- Batteria di backup fino a 12 ore di autonomia
- Gestione da remoto con app, SMS, chiamata vocale e cloud update
Ulteriori dettagli
Scheda tecnica
Model | ART-ARC3800H-03-FW2-868 |
Port | |
Wireless Zone | Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters) |
Network Mode | Hub: Ethernet, Wi-Fi and Cellular network(Supports installation of dual SIM cards. Only one card can be enabled at a time) |
Network Port | Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port |
Storage battery | Hub: One built-in 4,750 mAh rechargeable lithium battery. |
Video & Audio | |
Video Input | Hub: 8-ch IPC, which only supports the upload of alarm videos. |
Audio Output | Hub: 1 channel |
Volume Control | Hub: Yes |
Voice Broadcast | Hub: Telephone and local speaker |
Function | |
Indicator Light | Hub: The indicator indicates the status of alarms, arming and disarming, the network connection and device failure. Keyfob: 1 dual-color status indicator (Green means normal and red means abnormal) Door Detector: 1 green alarm indicator PIR Detector: 1 green alarm indicator |
Button | Hub: Includes a reset button, voltage button and AP switch button. Keyfob: 4 (Home, Away, Disarm, and SOS) Door Detector: 1 power switch PIR Detector: 1 power switch |
SMS | Hub: Yes (up to 5 phone numbers) |
Phone Call | Hub: Yes (up to 5 phone numbers) |
Video Linkage | Hub: Yes |
Offline Cache | Hub: Max. 50 entries (ANR) |
Arm and Disarm | Hub: App, Keypad, remote control, card, scheduled arming and disarming. |
Remote Update | All: Cloud update |
Low Battery Alarm | All: Yes |
Tamper | Hub: Yes Door Detector: Yes PIR Detector: Yes |
User Management | Hub: 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users |
Logs | Hub: Up to 5, 000 entries |
Measuring Range (Temperature) | Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
Transmission Protocol | Hub: SIA, SoftGuard |
Technical | |
Sensor | Door Detector: Reed switch PIR Detector: Dual elements low-noise PIR sensor |
Detection Mode | PIR Detector: PIR |
Sensitivity | PIR Detector: 3 levels adjustable |
Detection Range | PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft) |
Detection Speed | PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
Movement Distance | Door Detector: < 40 mm (1.57") |
Pet Immunity Level | PIR Detector: ≤ 18 kg (39.68 lb) |
White Light Resistance Level | PIR Detector: 2000 lx |
Two-way Digital Temperature Compensation | PIR Detector: Yes, no attenuation of detection distance in high temperature. |
Scenario | Door Detector: Non-metal doors |
Wireless | |
Carrier Frequency | All: 868.0 MHz–868.6 MHz |
Transmitter Power (EIRP) | All: Limit 25 mW |
Communication Mechanism | All: Two-way |
Communication Distance | Hub: Up to 2,000 m (6561.68 ft) in an open space. Keyfob: Up to 900 m (2952.76 ft) in an open space. Door Detector: Up to 1,200 m (3937.01 ft) in an open space PIR Detector: Up to 1,600 m (5249.34 ft) in an open space |
Encryption Mode | All: AES128 |
Frequency Hopping | All: Yes |
General | |
Language | Hub: Up to 7 languages are supported for SMS: English, Spanish (Latin America), French, Italian, Arabic, Turkish, and Danish. It is set as English by default. The alarm voice message feature and local speaker support English and Italian. |
Power Supply | Hub: 100-240 VAC, 50/60 HZ Keyfob: CR2032 battery Door Detector: CR123A battery PIR Detector: CR123A battery |
Standby Time | Hub:The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud. Keyfob: 3 years Door Detector: 4 years PIR Detector: 4 years |
Power Consumption | Hub: 220 VAC 80 mA(Max) 220 VAC 40 mA(Standby) Keyfob: 40 mA(Max), 0.5 uA (Standby) Door Detector: 42 mA(Max), 29 uA (Standby) PIR Detector: 44 mA(Max), 34 uA (Standby) |
Operating Temperature | All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
Operating Humidity | All: 10%–90% (RH) |
Product Dimensions | Hub: 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H) Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H) Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H) PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H) |
Net Weight | Hub: 510 g (1.12 lb) Keyfob: 20 g (0.04 lb) Door Detector: 70 g (0.15 lb) PIR Detector: 100 g (0.22 lb) |
Gross Weight | Kit: 1.46 kg (3.22 lb) |
Installation | Hub: Wall mount; Desktop mount Door Detector: Bracket mount PIR Detector: Wall mount |
Casing Material | All: PC + ABS |
Certifications | Hub: CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-3:2009 EN 50131-6:2017+A1:2021 EN 50131-5-3:2017 EN 50131-10: 2014 EN 50136-2: 2013+A1:2023 Security Grade 2 Environmental Class II ATS category: SP2/DP2 Keyfob: CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017 EN 50131-5-3:2017 EN 50131-3:2009 Security Grade 2 Environmental Class II Door Detector: CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-6:2017 EN 50131-5-3:2017 EN 50131-2-6:2008 Security Grade 2 Environmental Class II PIR Detector: CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-2-2:2017 EN 50131-6:2017 EN 50131-5-3:2017 Security Grade 2 Environmental Class II |
Anti-corrosion Level | Basic Protection |
Storage Temperature | All: –10 °C to +55 °C (+14 °F to +131 °F) |
Storage Humidity | All: 10%–90% (RH) |
Packaging Dimensions | Kit: 270 mm × 218 mm × 122 mm (10.63" × 8.58" × 4.80") (L × W × H) |
Wi-Fi | |
Wi-Fi Standard | Hub:IEEE 802.11b/g/n |
Wi-Fi Frequency Range | Hub:2400-2483.5 MHz |
Wi-Fi Power Transmission | Hub:≤20 dBm@2400-2483.5 MHz |
Cellular Network | |
Transmitter Power (EIRP) | Hub: 4G: Power class3: 23 dBm±2dB 3G: Power class3: 24 dBm+1/-3dB 2G: Power class0: 30 dBm±3dB(GSM900) Power class5: 33 dBm±3dB(GSM1800) |
Cellular Network Standard | Hub:GSM/WCDMA/LTE |
Frequency Range | Hub: EU: 4G:FDD-LTE: B1/B3/B7/B8/B20/B28A; TDD-LTE: B38/B40/B41; 3G:WCDMA: B1/B8; 2G:GSM: 1,800/900MHz; |
