ART-ARC3000H-03-GW2-868 Dahua Kit Allarme: 1x Hub Allarme ARC3000H-GW2-868. 1x Radiocomando ARA24-W2-868, 1x Contatto Magnetico Porta ARD323-W2-868, 1x Sensore PIR ARD1233-W2-868, Frequenza 868MHz Dahua Security
396,50 €
610,00 € -35%PRODOTTO NON DISPONIBILE, SUBITO UNO SCONTO DEL 5%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
KIT ALLARME DAHUA - WIFI - FREQUENZA 868MHz - ART-ARC3000H-03-GW2-868
|
COSA INCLUDE QUESTO KIT? |
Dettagli prodotto
|

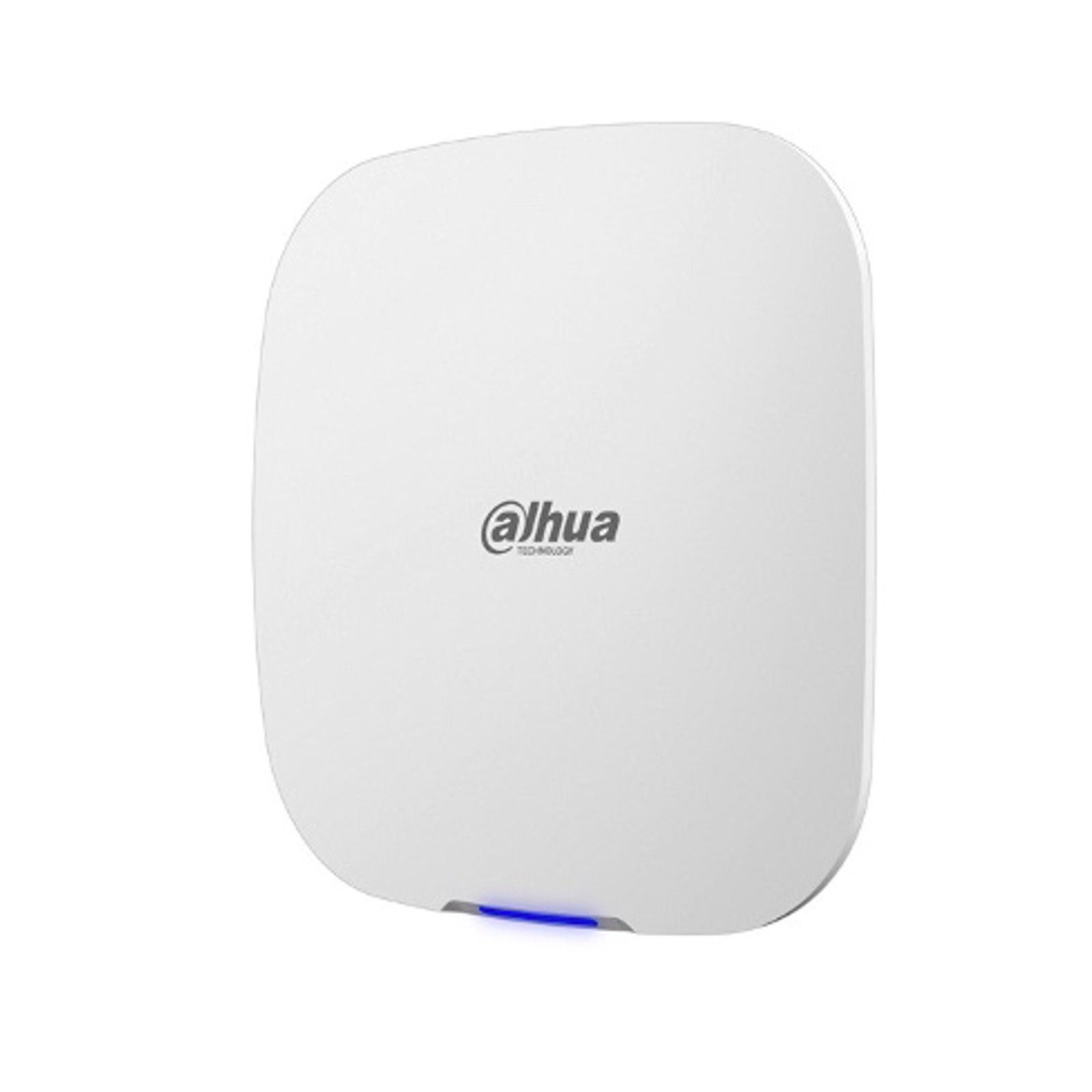

1x Hub Allarme Wireless - 868MHz Dahua ARC3000H-GW2-868
|
1x Hub Allarme - Wireless - 868MHz - 2.4GHz - Fino A 150 Periferiche - ARC3000H-GW2-868 > Centrale d'allarme - Dahua -Â ARC3000H-GW2-868 |
1X Radiocomando 4 Tasti Dahua - ARA24-W2-868 |
1x Radiocomando 4 Tasti - ARA24-W2-868 |
1X Contatto magnetico per porte - Wireless - ARD323-W2-868 |
1x Contatto Wireless Sesnsore Allarme Porta / Finestra 868MHz Dahua. ARD323-W2-868 > Contatto wireless porta / finestra senza fili wireless bidirezionale - Dahua> Protocollo di comunnicazione wireless bidirezionale 868MHz > Trasmissione fino a 1.200m (in spazio aperto, in assenza di ostacoli) > Tamper sabotaggio > Tasto accensione (Power on/off) > Indicatore luminoso di allarme (verde) > Crittografia: AES128 > Alimentazione: 1 batteria CR123A > Materiale: Policarbonato e ABS > Aspetto: colore bianco > Sensore Reed Switch > Misurazione della temperatura: –15 °C to +65 °C > Temperatura di esercizio: –10 °C to +55 °C > Peso dell'articolo (netto): 70g > Dimensioni: 100.2mm × 20.8mm × 20.3mm > Umidità relativa: 10%–90% |
1X Rilevatore PIR Wireless - Pet Immune - ARD1233-W2-868  |
1x Rilevatore Pir - Range 12M - Wireless Bidirezionale 868MHz - PET IMMUNE Dahua. ARD1233-W2-868 > Rilevatore PIR Wireless - Dahua> Frequenza bidirezionale di comunicazione senza fili 868Mhz > Distanza fino a 1.600m in campo aperto senza ostacoli > Range di rilevazione 12m > Pet Immune (immune alla rilevazione degli animali domestici) > Frequency Hopping > Alimentazione con batteria CR132A > Durata media batteria 4 anni > Allarme batteria in esaurimento > Indicatore luminoso di allarme (verde) > Tasto accensione > Crittografia AES128 > 3 livelli di sensibilità di rilevazione impostabili > Dimensioni: 104.0 mm × 60.0 mm × 50.0 mm > Peso netto dell'articolo: 100g > Aspetto: colore bianco > Materiale di fabbricazione: Policarbonato e ABS > Temperatura di esercizio: –10 °C to +55 °C |
Scheda tecnica
| Model | ART-ARC3000H-03-GW2-868 |
| Wireless Protection Zone | Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs) |
| Buzzer | Hub: Built-in |
| Button | Hub: 1 × reset, 1 × power, 1 × AP Keyfob: 4 (Home, Away, Disarm, and SOS) Door Detector: 1 × power button PIR Detector: 1 × power button |
| Indicator Light | Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) Keyfob: 1 × two-color status indicator (green: normal, red: abnormal) Door Detector: 1 × green alarm indicator PIR Detector: 1 × green alarm indicator |
| Storage battery | Hub: Built-in lithium battery |
| Network Mode | Hub: Single SIM (GSM:900/1800MHz); dual SIM single standby |
| Network Port | Hub: 1 × RJ-45 10 M/100 M Ethernet port |
| Network Protocol | Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP |
| Offline Cache | Hub: Max. 50 entries (ANR) |
| Power Failure Protection for Configured Parameters | Hub: Yes |
| Remote Update | All: Cloud update |
| Video Linkage | Hub: Yes |
| SMS | Hub: Yes (up to 5 phone numbers) |
| Phone Call | Hub: Yes (up to 5 phone numbers) |
| Low Battery Alarm | All: Yes |
| Tamper Alarm | Hub: Yes Door Detector: Yes PIR Detector: Yes |
| User Management | Hub: Share function for App users |
| Search | Hub: Searching push messages, device status, and program version. Detecting signal strength. Keyfob: Signal strength detection Door Detector: Signal strength detection PIR Detector: Signal strength detection |
| Arm and Disarm | Hub: App; keyfob; schedule |
| Carrier Frequency | All: 868.0 MHz–868.6 MHz |
| Communication Distance | Hub: Up to 2,000 m (6,561.68 ft) in an open space Keyfob: Up to 900 m (2,952.76 ft) in an open space Door Detector: Up to 1,200 m (3,937.01 ft) in an open space PIR Detector: Up to 1,600 m (5,249.34 ft) in an open space |
| Communication Mechanism | All: Two-way |
| Encryption Mode | All: AES128 |
| Frequency Hopping | All: Yes |
| Wi-Fi | Hub: 2.4G |
| External Zone | Door Detector: 1-channel dry contact input |
| Measuring Range (Temperature) | Door Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) PIR Detector: –15 °C to +65 °C (+18.8 °F to +149 °F) (indoor) |
| Measuring Precision (Temperature) | Door Detector: ± 1 °C (± 33.8 °F) PIR Detector: ± 1 °C (± 33.8 °F) |
| Resolution (Temperature) | Door Detector: 1 °C (33.8 °F) PIR Detector: 1 °C (33.8 °F) |
| Sensor | Door Detector: Reed switch PIR Detector: Dual elements low-noise PIR sensor |
| Test Mode | Door Detector: Yes PIR Detector: Yes |
| Scenario | Door Detector: Non-metal doors |
| Movement Distance | Door Detector: < 40 mm (1.57") |
| Detection Mode | PIR Detector: PIR |
| Detection Range | PIR Detector: 12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft) |
| Detection Speed | PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Pet Immunity Level | PIR Detector: ≤ 18 kg (39.68 lb) |
| White Light Resistance Level | PIR Detector: 6500 lx |
| Two-way Digital Temperature Compensation | PIR Detector: Yes, no attenuation of detection distance in high temperature |
| Sensitivity | PIR Detector: 3 levels adjustable |
| Power Supply | Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) Keyfob: CR2032 battery Door Detector: CR123A battery PIR Detector: CR123A battery |
| Battery Life | Hub: Storage battery standby for 12 Hours Keyfob: 5 years Door Detector: 5 years PIR Detector: 4 years |
| Power Consumption | Keyfob: Max. 100 mW Door Detector: Max. 125 mW PIR Detector: Max. 120 mW |
| Operating environment | Hub: –10 °C to +50 °C (+14 °F to +122 °F) (indoor) Keyfob: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) Door Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) PIR Detector: –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | All: 10%–90% (RH) |
| Product Dimensions | Hub: 163.0 mm × 163.0 mm × 32.0 mm (6.42"" × 6.42"" × 1.26"") (L × W × H) Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36"" × 1.56"" × 0.59"") (L × W × H) Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94"" × 0.82"" × 0.80"") (L × W × H) PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09"" × 2.36"" × 1.97"") (L × W × H) |
| Packaging Dimensions | Hub: 219.0 mm × 187.0 mm × 91.0 mm (8.62"" × 7.36"" × 3.58"") (L × W × H) Keyfob: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) Door Detector: 135.0 mm × 98.5 mm × 27.8 mm (5.31"" × 3.88"" × 1.09"") (L × W × H) PIR Detector: 135.0 mm × 98.5 mm × 56.8 mm (5.31"" × 3.88"" × 2.24"") (L × W × H) |
| Installation | Hub: Wall mount; Desktop Door Detector: Bracket mount PIR Detector: Wall mount |
| Net Weight | Hub: 0.38 Kg (0.84 lb) Keyfob: 20 g (0.04 lb) Door Detector: 70 g (0.15 lb) PIR Detector: 100 g (0.22 lb) |
| Gross Weight | Hub: 0.8 Kg (1.76 lb) Keyfob: 65 g (0.14 lb) Door Detector: 115 g (0.25 lb) PIR Detector: 170 g (0.37 lb) |
| Casing | All: PC + ABS |
| Certifications | All: CE |
