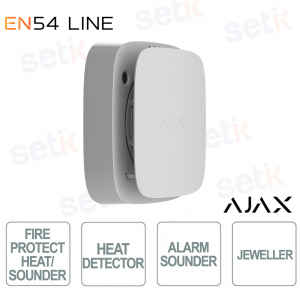

119915.274.WH1 | RILEVATORE DI CALORE TERMOVELOCIMETRICO WIRELESS CON DISPOSITIVO DI SEGNALAZIONE ACUSTICA

L’Ajax EN54 FireProtect(Heat/Sounder) Jeweller, 119915.274.WH1, è un rilevatore termovelocimetrico wireless di colore bianco che assicura protezione antincendio affidabile con rilevamento preciso di fumo o calore e trasmissione radio fino a 1.700 m. Disponibile anche con sirena integrata, è facile da installare con SmartBracket e offre fino a 5 anni di autonomia. Certificato EN54, è adatto a usi residenziali e professionali grazie alla configurazione tramite app Ajax.
Specifiche principali:
- Comunicazione radio bidirezionale Jeweller fino a 1.700 m
- Rilevamento del fumo con sensore ottico o del calore con doppio termistore
- Sirena integrata (solo modelli Sounder) con 32 toni selezionabili
- Alimentazione con batterie CR123A preinstallate (autonomia 5 anni)
- Installazione semplice senza viti e gestione via app Ajax
- Certificazioni EN 54-3, EN 54-5, EN 54-7 (in base alla versione)
Ulteriori dettagli
- EN 54-5 per il rilevamento di calore
- EN 54-7 per il rilevamento di fumo
- EN 54-3 per i dispositivi acustici di allarme
Scheda tecnica
119915.274.WH1 |
|
Capacity | |
Communication | |
Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
Frequency bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on the sales region. |
Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
Radio signal modulation | GFSK |
Radio communication range | up to 1,700 m up to 5,550 ft Between the CIE and connected devices (in an open space). Maximum range depends on the connected device. |
Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
Frequency hopping | To prevent radio interference and jamming. |
Dangerous temperature detection | |
Sensitive element | 2 × thermistor According to the EN 54-5 requirements for heat detectors of Class A1, B, and C with rate-of-rise (R) and static (S) response types. |
Heat sensor modes |
|
Alarm annunciation | |
Alarm type | acoustic |
Sound volume | up to 95 dB at a distance of 1 m 3.3 ft Adjusted by a PRO or user with admin rights in an Ajax app. |
Sound pattern | 32 tones |
Sound synchronization | An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE. |
Alarm annunciation test | An audible alarm check to ensure the fire alarm is clearly audible on the premises. |
Installation recommendations | The device is designed for indoor use only. The SmartBracket mounting panel allows the detector to be rotated up to 90° even after installation. |
Sabotage protection | |
Tamper button | Fault notification when an attempt is made to remove the device from the mounting panel. |
Lock for SmartBracket | to secure the device on the SmartBracket mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
Protection against spoofing | device authentication |
Connection loss detection | after 36 s Detection time depends on Jeweller settings |
Power supply | |
Battery | 2 × CR123A Pre-installed |
Tool-free battery replacement | To replace the batteries, open the lids of the battery compartments. |
Reverse polarity protection | Prevents device damage if the batteries are put in incorrectly. |
Recommended battery type | Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂ |
Calculated battery life | up to 6 years |
Enclosure | |
Dimensions | 124 × 124 × 48 mm 4.87" × 4.87" × 1.90" |
Weight | 278 g 9.81 oz |
Operating temperature range | from 0 °C to +50 °C from 32 °F to 122 °F |
Operating humidity | up to 80% |
Protection class | IP21C |
Flammability rating | UL 94 V-0 |
Color | White |
Complete set | EN54 FireProtect (heat/sounder) Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Quick start guide |
Warranty | 24 months |
