118607.277.RD1 | DISPOSITIVO DI ALLARME ANTINCENDIO VISIVO (VAD) WIRELESS

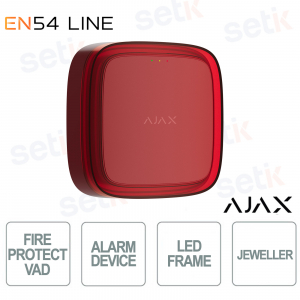

Il dispositivo Ajax FireProtect (VAD) Jeweller, 118607.277.RD1, è un allarme visivo wireless certificato EN54-23, progettato per garantire segnalazione antincendio luminosa potente ed efficace. Disponibile in colore rosso, assicura una copertura visiva ottimale grazie al LED con cornice ad alta intensità e si installa facilmente a parete o soffitto. Con comunicazione radio fino a 1.700 m, batterie CR123A preinstallate e autonomia fino a 5 anni, è la soluzione ideale per ambienti pubblici e professionali.
Specifiche principali:
- Allarme visivo LED con frequenza 0,5 Hz e sincronizzazione
- Comunicazione Jeweller stabile fino a 1.700 m
- Installazione facile con staffa SmartBracket
- Alimentazione con batterie CR123A preinstallate (autonomia 5 anni)
- Batteria a lunga durata (fino a 5 anni) senza attrezzi
- Conforme EN 54-23 e Direttiva 2014/53/UE (RED)
Ulteriori dettagli
Scheda tecnica
118607.277.RD1 |
|
Capacity | |
Communication | |
Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
Frequency bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on the sales region. |
Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
Radio signal modulation | GFSK |
Radio communication range | up to 1,700 m up to 5,550 ft Between the CIE and connected devices (in an open space). Maximum range depends on the connected device. |
Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
Frequency hopping | To prevent radio interference and jamming. |
Alarm annunciation | |
Alarm type | light LED frame. |
Flash frequency | 90 ms ON / 1,910 ms OFF (cycle duration: 2,000 ms; frequency: 0.5 Hz) |
Alarm annunciation test | To check the visual alarm signal to ensure fire alarm signals are visible in the premises |
Installation recommendations | The device's recommended installation height is up to 3 m on the ceiling and up to 2.4 m on the wall. The device's recommended installation height is up to 9.8 ft on the ceiling and up to 7.8 ft on the wall The device is designed for outdoor and indoor use |
Sabotage protection | |
Tamper button | Fault notification when an attempt is made to remove the device from the mounting panel. |
Lock for SmartBracket | to secure the device on the SmartBracket mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
Protection against spoofing | device authentication |
Connection loss detection | after 36 s Detection time depends on Jeweller settings |
Power supply | |
Battery | 4 × CR123A Pre-installed |
Tool-free battery replacement | To replace the batteries, open the lids of the battery compartments. |
Reverse polarity protection | Prevents device damage if the batteries are put in incorrectly. |
Recommended battery type | Huiderui CR123A; 3 V; 1,600 mAh, LiMnO₂ |
Calculated battery life | up to 5 years |
Enclosure | |
Dimensions | 145 × 145 × 51 mm 5.71" × 5.71" × 2.00" |
Weight | 509 g 1.122 lb |
Operating temperature range | from -10 °C to +50 °C from 14 °F to 122 °F |
Operating humidity | up to 80% |
Protection class | IP54 |
Flammability rating | UL 94 V-0 |
Color | Red |
Complete set | EN54 FireProtect (VAD) Jeweller SmartBracket mounting panel 4 × CR123A battery (pre-installed) Quick start guide |
Revision | 1 |
Warranty | 24 months |
