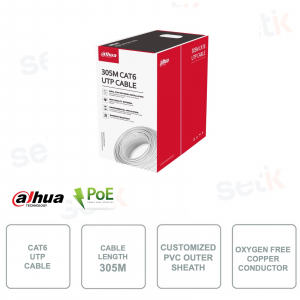

Cavo di rete UTP CAT6 - Dahua - PFM923I-6UN-C - Lunghezza 305 Metri - Compatibile PoE - Conduttore in rame ad alta purezza oxygen free - Colore bianco - Guaina esterna in PVC trattato - Diamtero 6.0 mm ± 0.3 mm - Guaina esterna in PVC, classe di ritardo di fiamma CE CPR eca Certified.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
CAVO UTP CAT6 - MATASSA DA 305 METRI - COMPATIBILE POE - GUAINA IN PVC - CONDUTTORE IN RAME - DAHUA - PFM923I-6UN-C

PFM920I-5EUN - Cavo di rete UTP CAT6 Cable - Lunghezza: 305 Metri - Compoatibile PoE - Conduttore in rame ad alta purezza oxygen-free - Guaina esterna in PVC trattato - Classe di ritardo di fiamma CE CPR eca Certificato - Prodotto di qualità - Garanzia 10 anni del produttore.
Dettagli prodotto
- Cavo di rete UTP CAT6 - Dahua - PFM923I-6UN-C
- Matassa da 305 Metri
- Conduttore in Rame (alta purezza, oxygen free)
- Diametro: 6.0 mm ± 0.3 mm
- Colore: bianco
- Materiale separatore: PE
- Materiale Rip Cord: Poliestere
- Materiale isolamento: HDPE
- Guaina in PVC trattato
- Peso netto: ≥10.5 kg
- Classe di ritardo di fiamma: CE CPR eca Certified
- Garanzia 10 anni del produttore

Scheda tecnica
| PFM923I-6UN-C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Conductor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | Oxygen free copper (99.97% purity) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diameter | 0.53mm ± 0.01 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Insulation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | HDPE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Average Thickness | 0.21 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diameter | 0.95 mm ± 0.1 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Separator | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | PE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specification | Translucent 4.5 × 0.4 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rip Cord | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | Polyester | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specification | 500D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sheath | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | LSZH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Average Thickness | 0.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Diameter | 6.0 mm ± 0.3 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. DC Resistance of a Single Conductor | 8.7 Ω/100 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Insulation Resistance | 5000MΩ·km | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dielectric Strength | No breakdown with 1KV DC for 1 min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmission | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Characteristic Impedance | 100 ± 15Ω | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Near End Cross Talk | ≥39.30 dB/100 m@250 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Attenuation | 34.8 dB/100 m@250 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Return Loss | ≥17.3 dB/100 m@250 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mechanical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tensile Strength | Sheath≥10 MPa, insulation≥16 MPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Elongation at Break | Sheath≥125%, insulation≥300% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation Bending Radius | >8 times of outer cable diameter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Conductor Elongation at Break | ≥10% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shrinkage of Insulation | ≤5% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color Migration Resistance of Insulation | No migration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sheath Tensile Strength and Elongation at Break after Aging | ≥8 MPa, ≥100% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Low Temperature Bending Test | No cracking after the test | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Heat Shock Test | No cracking after the test | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Temperature | –20°C to +60°C (–4°F to 140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation Temperature | 0°C to +50°C (32°F to 122°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), <60% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Vertical Fire Propagation Test | Comply with IEC 60332-1-2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cable Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Inner Carton Dimensions | 416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" × 8.66") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Method | 305.0 m (1000.66 ft) a carton, one carton with 2 inner cartons | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | ≥10.5 kg (23.15 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | ≥11.5 kg (25.35 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compliance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Executive Standards | Q/DXJ 067-2019, EN50575-2014 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CPR Eca | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ulteriori dettagli
|  | I componenti che per loro natura ovvero per normale usura, logorio o decadimento, necessitano di periodica manutenzione o sostituzione (es: alimentatori, cavi, connettori, componenti strutturali o tutto ciò che è soggetto a sollecitazione meccanica ed elettrica) sono specificatamente esclusi dalla Garanzia. |
