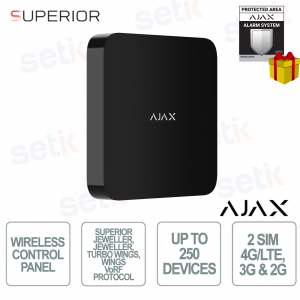

Ajax Superior Hub G3 Nero con Connessione Ethernet/Wi-Fi e Doppia SIM

Ajax Superior Hub G3 Nero con Connessione Ethernet/Wi-Fi e Doppia SIM

Nuovo

148937.362.BL1 #148937| Ajax Superior Hub G3 Jeweller nero è una centrale di sicurezza wireless di livello professionale, progettata per offrire protezione Grade 3 con comunicazioni altamente affidabili tramite Ethernet, Wi-Fi e doppia SIM 2G/4G. Grazie ai protocolli Superior Jeweller e TurboWings, garantisce una portata radio fino a 3.500 metri e una trasmissione foto rapida e crittografata. Supporta fino a 250 dispositivi, 200 utenti e 64 scenari di automazione, offrendo integrazione totale con videosorveglianza, antintrusione e sistemi di monitoraggio. La protezione antisabotaggio avanzata, il rilevamento jamming e le batterie hot-swap assicurano continuità operativa fino a 60 ore, rendendolo la soluzione ideale per siti ad alta sicurezza.

Scheda Tecnica


 >> IN REGALO CARTELLO ADESIVO AJAX


Riferimento: 148937.362.BL1

Marca: Ajax Systems

EAN: 4823114080784

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Protezione Avanzata con l’Allarme Ajax

L’allarme Ajax è la scelta perfetta per chi cerca un sistema antifurto wireless affidabile, moderno e semplice da usare. Progettato da Ajax Systems, azienda leader europea nel settore della sicurezza, questo sistema unisce tecnologia di ultima generazione a un design elegante e discreto.

Perché scegliere un antifurto Ajax?

  • Rilevatori di movimento e apertura ad alta precisione
  • Comunicazione wireless protetta (Jeweller + Wings)
  • Notifiche in tempo reale su smartphone
  • Installazione rapida e senza opere murarie
  • Integrazione con videocamere e domotica

L’Ajax antifurto è ideale sia per case che per uffici e negozi, grazie alla sua modularità e flessibilità.

Affidabilità Garantita da Ajax Systems

Con oltre 2 milioni di sistemi attivi in Europa, Ajax Systems rappresenta un punto di riferimento per la sicurezza professionale wireless.

"La sicurezza non deve essere complicata – deve essere intelligente."
– Ajax Systems

Servizio con Installatore Ajax Certificato

Oltre ai prodotti Ajax, offriamo un servizio completo con installatore Ajax in tutta Italia:

  • Scegli l'installatore Ajax più vicino a te qui
  • Invia gratuitamente la tua quotazione e attendi riscontro da parte del professionista
  • Attendi il giorno dell'appuntamento e goditi il servizio d'installazione
  • Lascia il tuo feedback sul servizio ricevuto

Richiedi Preventivo o Assistenza

Contattaci ora per un’offerta su misura o per richiedere l’intervento di un installatore Ajax antifurto nella tua zona.

[short_description] =>

Ajax Systems


Ajax Allarme wireless professionale
per la sicurezza di casa e ufficio. Affidati ad un nostro installatore Ajax certificato per un sistema antifurto smart, affidabile e facile da gestire con lo smartphone. Scopri i kit completi Ajax Systems, pronti per l’uso.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Allarmi AJAX | Sistemi di sicurezza wireless professionali | SETIK [meta_keywords] => sistemi allarme ajax, sicurezza ajax, allarmi ajax, ajax security system, ajax security, ajax system, sensori ajax, antifurto ajax [meta_description] => Scopri i sistemi di allarme AJAX: wireless, smart e facili da installare. Acquista online su SETIK a prezzi vantaggiosi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


FUORI TUTTO ×


  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

148937.362.BL1 | UNITA' CENTRALE WIRELESS CON SUPPORTO DELLA FOTO-VERIFICA - COLLEGABILE TRAMITE ETHERNET, WI-FI E DUE SCHEDE SIM (2G/3G/LTE)


Ajax

L’Ajax Superior Hub G3 Jeweller, 148937.362.BL1, nero è una centrale di sicurezza wireless di classe professionale, progettata per offrire protezione Grade 3 con comunicazioni estremamente affidabili tramite Ethernet, Wi-Fi e doppia SIM 2G/4G. Grazie ai protocolli Superior Jeweller e TurboWings, garantisce una portata radio fino a 3.500 metri, trasmissione foto istantanea e crittografia avanzata dei dati. Supporta fino a 250 dispositivi, 200 utenti e 64 scenari automatici, integrando intrusion detection, videosorveglianza e automazione in un unico ecosistema. La protezione antisabotaggio, il rilevamento jamming e le batterie hot-swap assicurano continuità operativa fino a 60 ore, rendendolo ideale per siti ad alta sicurezza e gestione remota professionale.

Specifiche principali:

Connessioni: Ethernet, Wi-Fi e doppia SIM 2G/4G

Comunicazione radio fino a 3.500 m con Superior Jeweller e TurboWings

Supporto fino a 250 dispositivi e 36 NVR Ajax / 492 telecamere

App mobile/desktop per gestione completa e notifiche immediate

Protezione antisabotaggio e rilevamento jamming

Backup energetico fino a 16 o 60 ore (batteria opzionale)

- Compatibile con fino a 200 utenti e 64 scenari di automazione

Ulteriori dettagli

Capacità elevata del sistema:
Supporta fino a 250 dispositivi, 200 utenti, 25 gruppi di sicurezza, fino a 36 NVR Ajax e fino a 492 telecamere, oltre a 64 scenari di automazione, rendendolo ideale per siti complessi e ad alta sicurezza.
Comunicazione wireless avanzata:
Utilizza i protocolli Superior Jeweller e TurboWings, garantendo una portata radio fino a 3.500 m in spazio aperto e una trasmissione dati crittografata e ad alta velocità tra hub e dispositivi.
✅ Canali di comunicazione multipli:
Supporta Ethernet, Wi-Fi e due SIM 2G/4G, con commutazione automatica istantanea tra i canali in caso di interruzioni e supporto fino a quattro provider contemporaneamente, assicurando continuità operativa.
✅ Supporto foto-verifica:
Trasmissione rapida delle immagini grazie ai protocolli dedicati Superior Jeweller e TurboWings, con invio foto accelerato fino a 4.5x dai motion detector Ajax.
Allarme antisabotaggio professionale:
Protezione totale con tamper anti-manomissione, rilevamento distacco/danneggiamento, jamming detection, frequenza hopping contro interferenze radio, e monitoraggio costante della comunicazione tra hub e dispositivi.

Scheda tecnica

148937.362.BL1
Capacity Ajax devices
up to 250
Specifically:
  • up to 5 range extenders;
  • up to 10 sirens;
  • up to 50 keypads with a built-in siren

Ajax NVRs
up to 36
Ajax cameras
up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras
up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users
up to 200

  • Any number of admin users within the hub limit.
  • PRO accounts for installers
  • PRO accounts for installation and monitoring companies
  • Access management for users

Automation scenarios
up to 64

  • By alarm
  • By schedule
  • By arming/disarming
  • By temperature, humidity, CO2 concentration
  • By pressing Button
  • By touching LightSwitch

Security groups
up to 25
Rooms
up to 50
Event log
up to 1,000 events
Events are saved on the non-volatile onboard flash memory.

Wireless communication Data transfer protocols
Superior Jeweller
To transmit commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweller protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled.
To transmit commands, alarms, and events from devices without Superior Jeweller support.
TurboWings
To transmit photos from devices supporting TurboWings.
Wings
To transmit large data packets, such as firmware updates, and photos from devices without TurboWings support.
VoRF
Proprietary wireless audio streaming protocol using time division duplex.
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Radio communication range
Up to 3.500 m
Up to 11.500 ft
Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Advanced encrypted communication
The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity.
Enhanced frequency hopping
To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies.
Recommendations The device operating voltage is 110–240 V~.
Superior Hub G3 Jeweller is designed for indoor installation only.
Communication channels Ethernet
1 × 8P8C socket
Up to 100 Mbps.
Cellular
2 × micro SIM slot
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Wi-Fi
802.11 b/g/n module
Up to 600 Mbps.
Automatic switching between communication channels
  • Switching between SIMs — up to 4 minutes.
  • Switching between 4G (LTE), 3G, and 2G networks of one SIM — instantly.
  • Switching between Ethernet, Wi-Fi, and SIM — instantly.
Communication channels prioritization
1. Ethernet
2. Wi-Fi
3. Cellular connection
Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet.
External antenna connectors
Jeweller
Wings
4G (LTE)
The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately.
Alarm transmission system categories
SP2, SP5, DP4
Control panel operation method
pass-through
Signaling security
S2
Substitution security
Information security
I2
Encryption algorithm
AES-128-GCM
Notifications Notification types
  • Push notifications
  • SMS
  • Calls

Event types

  • Alarms
  • Video alarms
  • Malfunctions
  • Security state change
  • System events
  • Non-security alerts
  • Automation devices
  • Smart lock events
  • Doorbell ringing
Notification types are configured individually for each user. Notifications can be customized for A–F schemes according to EN 50131 requirements.
Photo verification Photo verification types
  • Photo by alarm
  • Photo by scenario
  • Photo on demand
  • Photo by schedule
  • Photo by arming/disarming
Photo delivery time
up to 9 s
By default
Photo resolution
up to 640 × 480 pixels
Depends on the detector
Number of photos in a series
from 1 to 5 pictures
Monitoring Supported protocols
  • SIA DC-09 (SIA-DCS)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols

Event types

  • System alarms and events
  • Panic button coordinates
  • Photo verification
Sabotage protection Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Frequency hopping
The hub sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert
Superior Hub G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.
Power supply Main power supply type
Type A
Device operating AC voltage range
110–240 V, 50/60 Hz
From the main power supply. Up to 30 W of mains power consumption
Device operating DC voltage range
6.0–8.2 V⎓
Low battery voltage
Low battery recovery voltage
8.135 V⎓
End-of-life battery voltage
6.0 V⎓
Superior Hub G3 Jeweller is switched off.
Minimum backup battery energy level in the charged state
100%
Autonomous operation On Superior Internal Battery (16h)
up to 16 hours
When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (16h) is not included in the complete set.
up to 100 hours
In Battery saving mode
On Superior Internal Battery (60h)
up to 60 hours
When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (60h) is not included in the complete set.
up to 300 hours
In Battery saving mode
Current consumption Maximum at nominal voltage
120 mA
Quiescent at nominal voltage
up to 120 mA
When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled.
up to 115 mA
When Ethernet and cellular (LTE) communication channels are enabled
up to 28 mA
When Ethernet and other communication channels are disabled
Enclosure Dimensions
216 × 216 × 45 mm
8.50″ × 8.50″ × 1.77″
Weight
1,200 g
2.65 lb
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP30, IK06
Colors Black
Complete set Superior Hub G3 Jeweller
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
SIM card (depends on the sales region)
Quick start guide
Warranty 24 months
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
