148936.362.WH1 #148936| Ajax Superior Hub G3 Jeweller bianco è una centrale di sicurezza wireless di livello professionale, progettata per offrire protezione Grade 3 con comunicazioni altamente affidabili tramite Ethernet, Wi-Fi e doppia SIM 2G/4G. Grazie ai protocolli Superior Jeweller e TurboWings, garantisce una portata radio fino a 3.500 metri e una trasmissione foto rapida e crittografata. Supporta fino a 250 dispositivi, 200 utenti e 64 scenari di automazione, offrendo integrazione totale con videosorveglianza, antintrusione e sistemi di monitoraggio. La protezione antisabotaggio avanzata, il rilevamento jamming e le batterie hot-swap assicurano continuità operativa fino a 60 ore, rendendolo la soluzione ideale per siti ad alta sicurezza.
>> IN REGALO CARTELLO ADESIVO AJAX
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
148936.362.WH1 | UNITA' CENTRALE WIRELESS CON SUPPORTO DELLA FOTO-VERIFICA - COLLEGABILE TRAMITE ETHERNET, WI-FI E DUE SCHEDE SIM (2G/3G/LTE)

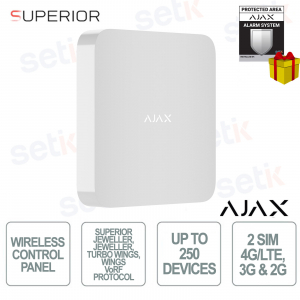

L’Ajax Superior Hub G3 Jeweller, 148936.362.WH1, bianco è una centrale di sicurezza wireless di classe professionale, progettata per offrire protezione Grade 3 con comunicazioni estremamente affidabili tramite Ethernet, Wi-Fi e doppia SIM 2G/4G. Grazie ai protocolli Superior Jeweller e TurboWings, garantisce una portata radio fino a 3.500 metri, trasmissione foto istantanea e crittografia avanzata dei dati. Supporta fino a 250 dispositivi, 200 utenti e 64 scenari automatici, integrando intrusion detection, videosorveglianza e automazione in un unico ecosistema. La protezione antisabotaggio, il rilevamento jamming e le batterie hot-swap assicurano continuità operativa fino a 60 ore, rendendolo ideale per siti ad alta sicurezza e gestione remota professionale.
Specifiche principali:
- Connessioni: Ethernet, Wi-Fi e doppia SIM 2G/4G
- Comunicazione radio fino a 3.500 m con Superior Jeweller e TurboWings
- Supporto fino a 250 dispositivi e 36 NVR Ajax / 492 telecamere
- App mobile/desktop per gestione completa e notifiche immediate
- Protezione antisabotaggio e rilevamento jamming
- Backup energetico fino a 16 o 60 ore (batteria opzionale)
- Compatibile con fino a 200 utenti e 64 scenari di automazione
Ulteriori dettagli
Supporta Ethernet, Wi-Fi e due SIM 2G/4G, con commutazione automatica istantanea tra i canali in caso di interruzioni e supporto fino a quattro provider contemporaneamente, assicurando continuità operativa.
Scheda tecnica
| 148936.362.WH1 | |
| Capacity | Ajax devices up to 250 Specifically:
Ajax NVRs
Automation scenarios
Security groups |
| Wireless communication | Data transfer protocols Superior Jeweller To transmit commands, alarms, and events. An upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with Grade 3 (EN 50131). If at least one device operates via the regular Jeweller protocol, the system will be limited to Grade 2: encryption remains, but frequency hopping is disabled. To transmit commands, alarms, and events from devices without Superior Jeweller support. TurboWings To transmit photos from devices supporting TurboWings. Wings To transmit large data packets, such as firmware updates, and photos from devices without TurboWings support. VoRF Proprietary wireless audio streaming protocol using time division duplex. Frequency bands 865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Radio communication range Up to 3.500 m Up to 11.500 ft Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device. Maximum effective radiated power (ERP) up to 20 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Advanced encrypted communication The communication between the device and the hub is protected by an advanced encryption scheme that ensures data confidentiality and integrity. Enhanced frequency hopping To prevent radio interference and jamming. For enhanced hopping to function, all devices in the system must use the Superior Jeweller protocol. If even one device uses the regular Jeweller protocol, hopping will be limited to only 2 frequencies. |
| Recommendations | The device operating voltage is 110–240 V~. Superior Hub G3 Jeweller is designed for indoor installation only. |
| Communication channels | Ethernet 1 × 8P8C socket Up to 100 Mbps. Cellular 2 × micro SIM slot Cellular bands 2G GSM900/DCS1800 (B3/B8) 3G WCDMA 850/900/2100 (B1/B5/B8) 4G (LTE) FDD B1/B3/B5/B7/B8/B20 Wi-Fi 802.11 b/g/n module Up to 600 Mbps. Automatic switching between communication channels
1. Ethernet 2. Wi-Fi 3. Cellular connection Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet. External antenna connectors Jeweller Wings 4G (LTE) The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately. Alarm transmission system categories SP2, SP5, DP4 Control panel operation method pass-through Signaling security S2 Substitution security Information security I2 Encryption algorithm AES-128-GCM |
| Notifications | Notification types
Event types
|
| Photo verification | Photo verification types
up to 9 s By default Photo resolution up to 640 × 480 pixels Depends on the detector Number of photos in a series from 1 to 5 pictures |
| Monitoring | Supported protocols
Event types
|
| Sabotage protection | Tamper alarm The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. Protection against spoofing device authentication Frequency hopping The hub sends notifications to all users and the security company of jamming or losing connection with the devices. Jamming alert Superior Hub G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds. |
| Power supply | Main power supply type Type A Device operating AC voltage range 110–240 V, 50/60 Hz From the main power supply. Up to 30 W of mains power consumption Device operating DC voltage range 6.0–8.2 V⎓ Low battery voltage Low battery recovery voltage 8.135 V⎓ End-of-life battery voltage 6.0 V⎓ Superior Hub G3 Jeweller is switched off. Minimum backup battery energy level in the charged state 100% |
| Autonomous operation | On Superior Internal Battery (16h) up to 16 hours When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (16h) is not included in the complete set. up to 100 hours In Battery saving mode On Superior Internal Battery (60h) up to 60 hours When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. Superior Internal Battery (60h) is not included in the complete set. up to 300 hours In Battery saving mode |
| Current consumption | Maximum at nominal voltage 120 mA Quiescent at nominal voltage up to 120 mA When Wi-Fi, Ethernet, and cellular (LTE) communication channels are enabled. up to 115 mA When Ethernet and cellular (LTE) communication channels are enabled up to 28 mA When Ethernet and other communication channels are disabled |
| Enclosure | Dimensions 216 × 216 × 45 mm 8.50″ × 8.50″ × 1.77″ Weight 1,200 g 2.65 lb Operating temperature range from −10 °C to +40 °C from 14 °F to 104 °F Operating humidity up to 75% Protection class IP30, IK06 |
| Colors | White |
| Complete set | Superior Hub G3 Jeweller SmartBracket mounting panel Power cable Ethernet cable Installation kit SIM card (depends on the sales region) Quick start guide |
| Warranty | 24 months |
