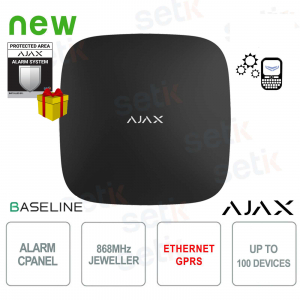

38236.01.BL1 #38236| Ajax Hub (2G) Jeweller nero è la centrale di controllo che garantisce una sicurezza affidabile grazie alla connessione cloud con disponibilità del 99,99% e al protocollo criptato Jeweller con frequency hopping. Supporta fino a 100 dispositivi wireless con portata fino a 2.000 metri, rileva la perdita di connessione in pochi secondi e integra una batteria di backup da 15 ore per continuità operativa. Dotato di Ethernet e slot SIM 2G, assicura comunicazioni stabili e gestione remota tramite app, offrendo massima protezione e compatibilità con scenari, videocamere e gruppi di sicurezza. Ajax
>> IN REGALO CARTELLO ADESIVO AJAX
Riferimento: 38236.01.BL1
Marca: Ajax Systems
EAN: 4823114015212
Disponibilità: 6
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
38236.01.BL1 | CENTRALE CON SUPPORTO JEWELLER
>> IN REGALO CARTELLO ADESIVO AJAX

L’Ajax Hub (2G) Jeweller, 38236.01.BL1, nero è la centrale intelligente che gestisce l’intero ecosistema Ajax garantendo sicurezza avanzata, comunicazioni stabili e monitoraggio costante grazie al cloud con disponibilità del 99,99%. La tecnologia radio Jeweller assicura trasmissioni criptate, rilevamento immediato delle perdite di connessione e protezione anti-manomissione, mentre la batteria integrata offre fino a 15 ore di autonomia. Progettato per supportare fino a 100 dispositivi wireless e integrare Ethernet e SIM 2G, il sistema garantisce un controllo remoto affidabile e prestazioni elevate in qualsiasi ambiente, il tutto racchiuso in un elegante design nero.
Specifiche principali:
- Connessione cloud con disponibilità del 99,99%
- Tecnologia Jeweller con frequency hopping e rilevamento perdita connessione
- Batteria integrata fino a 15 ore di autonomia
- Supporto fino a 100 dispositivi wireless e portata fino a 2.000 m
- Comunicazioni tramite Ethernet e slot SIM 2G
- Protezione anti-manomissione e monitoraggio remoto tramite app
- Design compatto in colore nero (163 × 163 × 36 mm)
Ulteriori dettagli
Il dispositivo utilizza canali di comunicazione multipli, tra cui Ethernet per connessioni veloci e stabili fino a 100 Mb/s e uno slot SIM 2G che garantisce continuità operativa anche in caso di problemi con la rete via cavo, assicurando che l’hub resti sempre connesso al cloud e agli utenti.
Scheda tecnica
| 38236.01.BL1 | |
| Capacity | |
| Wireless Ajax devices | up to 100 Specifically, up to 10 sirens and 1 range extender. |
| Ajax NVRs | up to 14 |
| Ajax cameras | up to 224 via Ajax NVRs and up to 200 standalone |
| Third-party IP cameras | up to 10 when using RTSP via SDK up to 224 when using ONVIF via Ajax NVRs |
| Users | up to 50
|
| Automation scenarios | up to 5
|
| Security groups | up to 9 |
| Rooms | up to 50 |
| Support for MotionCam detectors | unavailable |
| Wireless communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | < 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Wings communication range | Up to 2.000 m Up to 6,500 ft Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Polling interval | from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Radio frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Recommendations | The device operating voltage is 110–240 V~. Hub is designed for indoor installation only. |
| Communication channels | |
| Ethernet | 1 8P8C socket Up to 100 Mbps. |
| Cellular | 1 micro-SIM slot |
| Cellular bands | 2G GSM 850/900/1800/1900 MHz |
| Automatic switching between communication channels | Instant switching between Ethernet and SIM. |
| Communication channels prioritization | 1. Ethernet 2. Cellular connection Communication channels work in parallel, to increase system reliability. Most of the data is transmitted via Ethernet. |
| Notifications | |
| Supported notification types |
|
| Event types |
|
| Monitoring | |
| Supported protocols |
|
| Event types |
|
| Power Supply | |
| Main | 110–240 V~, 50/60 Hz Up to 10 W of mains power consumption. |
| Backup | Built-in backup battery: Li-ion 3 А·h Up to 15 hours of offline operation when the Ethernet is switched off. |
| Alternative | 6 V⎓ (when using 6V PSU for Hub 2/Hub 2 Plus/ReX 2) 12–24 V⎓ (when using 12–24V PSU for Hub 2/Hub 2 Plus/ReX 2) Requires the appropriate alternative power supply unit (sold separately) |
| Enclosure | |
| Color | Black |
| DImension | 163 × 163 × 36 mm 6.42″ × 6.42″ × 1.42″ |
| Weight | 360 g 12.70 oz |
| Operating temperature range | from −10°C to +40°C from 14°F to 104°F |
| Operating humidity | up to 75% |
| Casing protection class | IP20 |
| Complete set | Hub (2G) Jewelle SmartBracket mounting panel Power supply cable Ethernet cable Installation kit GSM start package (available not in all countries) Quick start guide |
| Warranty | 24 months |
