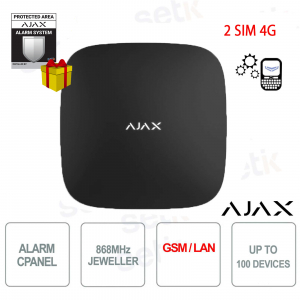

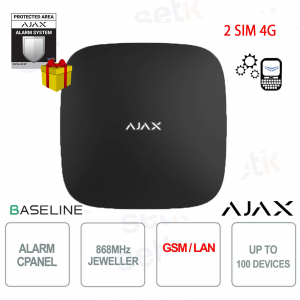

38240.108.BL1 #38240| Ajax Hub 2 (4G) Jeweller nero è una centrale di sicurezza avanzata che garantisce connessioni sempre attive grazie ai tre canali di comunicazione — Ethernet e doppia SIM 4G — con commutazione istantanea per assicurare continuità anche in caso di rete instabile. I protocolli radio Jeweller e Wings offrono trasmissioni criptate, copertura fino a 2.000 m e invio rapido delle foto-verifiche MotionCam, con conferma di ricezione e backup automatico dei dati. Il cloud Ajax, con disponibilità del 99,99%, consente monitoraggio remoto completo, aggiornamenti software OTA e notifiche immediate via app, chiamate e SMS. L’hub integra protezioni antisabotaggio, rilevamento jamming e batteria interna fino a 16 ore, supportando fino a 100 dispositivi e garantendo massima sicurezza. Ajax
>> IN REGALO CARTELLO ADESIVO AJAX
Riferimento: 38240.108.BL1
Marca: Ajax Systems
EAN: 4823114015090
Disponibilità: 4
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
38240.108.BL1 | PANNELLO DI CONTROLLO DEL SISTEMA DI SICUREZZA CON SUPPORTO FOTO-VERIFICA
>> IN REGALO CARTELLO ADESIVO AJAX

L’Ajax Hub 2 (4G) Jeweller, 38240.108.BL1, nero è una centrale di sicurezza avanzata progettata per garantire comunicazioni sempre attive tramite Ethernet e doppia SIM 4G, assicurando continuità anche in caso di segnale instabile. Grazie ai protocolli radio crittografati Jeweller e Wings, l’hub offre una trasmissione rapida e sicura di allarmi, eventi e foto-verifiche MotionCam, con copertura fino a 2.000 m e backup dei dati in caso di interruzioni. Il cloud Ajax con disponibilità del 99,99% consente configurazione remota, aggiornamenti OTA e monitoraggio completo, mentre le funzioni antisabotaggio, la batteria integrata fino a 16 ore e la compatibilità con 100 dispositivi rendono l’hub ideale per sistemi professionali.
Specifiche principali:
- Tripla connessione: Ethernet + 2 SIM 4G con switch automatico
- Protocolli Jeweller e Wings per comunicazioni criptate e foto-verifiche rapide
- Copertura radio fino a 2.000 m (Jeweller) e 1.700 m (Wings)
- Cloud Ajax con disponibilità 99,99% e gestione remota completa
- Batteria integrata fino a 16 ore e protezioni antisabotaggio
- Supporto fino a 100 dispositivi Ajax
Ulteriori dettagli
L’hub dispone di tre canali paralleli — Ethernet e due SIM 4G — che assicurano continuità operativa tramite switch automatico in pochi secondi, mantenendo costante la connessione con utenti, cloud e centrali di monitoraggio anche in condizioni di rete instabili o in caso di guasti.
Scheda tecnica
| 38240.108.BL1 | |
| Capacity | |
| Wireless Ajax devices | up to 100 Specifically, up to 10 sirens and 1 range extender. |
| Third-party IP cameras | up to 25
|
| Users | up to 50
|
| Automation scenarios | up to 32
|
| Security groups | up to 9 |
| Rooms | up to 50 |
| Wireless communication | |
| Jeweller communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | < 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Wings communication range | Up to 2.000 m Up to 6,500 ft Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Polling interval | from 12 to 300 s Adjusted by PRO or user with admin rights in the Ajax apps. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Radio frequency hopping | To prevent radio interference and radio signal interception. |
| Wings communication technology | Proprietary wireless communication technology to transmit photo verifications. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reagion |
| Maximum effective radiated power (ERP) | < 20 mW Featured automatic power control to reduce power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,700 m Up to 5,500 ft Between the hub and connected devices (in an open space). Maximum range depends on the connected device. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Radio frequency hopping | To prevent radio interference and radio signal interception. |
| Recommendations | The device operating voltage is 110–240 V~. Hub is designed for indoor installation only. |
| Communication channels | |
| Ethernet | 1 8P8C socket Up to 100 Mbps. |
| Cellular | 2 micro-SIM slot |
| Cellular bands | 2G GSM 850/900/1800/1900 MHz 3G WCDMA 850/900/2100 (B1/B5/B8) 4G (LTE) FDD B1/B3/B5/B7/B8/B20 |
| Automatic switching between communication channels | Instant switching between Ethernet and SIM. Instant switching between 4G (LTE), 3G, and 2G networks of one SIM. Switching between SIMs takes up to 4 minutes. |
| Communication channels prioritization | 1. Ethernet 2. Cellular connection Communication channels work in parallel, to increase system reliability. Most of the data is transmitted via Ethernet. |
| Notifications | |
| Supported notification types |
|
| Event types |
|
| Photo verification | |
| Photo verification types |
|
| Photo delivery time | up to 9 s by default. |
| Photo resolution | up to 640 × 480 pixels Depends on the detector. |
| Number of photos in a series: | from 1 to 5 pictures |
| Monitoring | |
| Supported protocols |
|
| Event types |
|
| Power Supply | |
| Main | 110–240 V~, 50/60 Hz Up to 10 W of mains power consumption. |
| Backup | Built-in backup battery: Li-ion 3 А·h Up to 15 hours of offline operation when the Ethernet is switched off. |
| Alternative | 6 V⎓ (when using 6V PSU for Hub 2/Hub 2 Plus/ReX 2) 12–24 V⎓ (when using 12–24V PSU for Hub 2/Hub 2 Plus/ReX 2) Requires the appropriate alternative power supply unit (sold separately) |
| Anti-sabotage | |
| Tamper alarm | The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. |
| Protection against spoofing | devices’ authentication Proprietary authentication algorithms make it impossible to spoof the hub or connected devices. |
| Frequency hopping | The users and the security company receive notifications in case of jamming or when the hub loses connection with the devices. |
| Enclosure | |
| Color | Black |
| DImension | 163 × 163 × 36 mm 6.42″ × 6.42″ × 1.42″ |
| Weight | 360 g 12.70 oz |
| Operating temperature range | from −10°C to +40°C from 14°F to 104°F |
| Operating humidity | up to 75% |
| Casing protection class | IP20 |
| Complete set | Hub 2 (4G) Jeweller SmartBracket mounting panel Power supply cable Ethernet cable Installation kit SIM card (depends on the sales region) Quick start guide |
| Warranty | 24 months |
