Controllo Accessi Dahua: Terminale autonomo - Auteticazione con ID Card, Password e telecomando - LCD Display 2.4 pollici e touchpad - Supporta Wiegand e RS485 - WIFI - Allarme - Campanello - Exit Button - Controllo per 1 porta - Lock Control x1 - RS232 - USB - RJ45 LAN 100Mbps - Staffa per installazione a muro inclusa - Protezionen IP65 (richiede uso silicone sigillante).
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

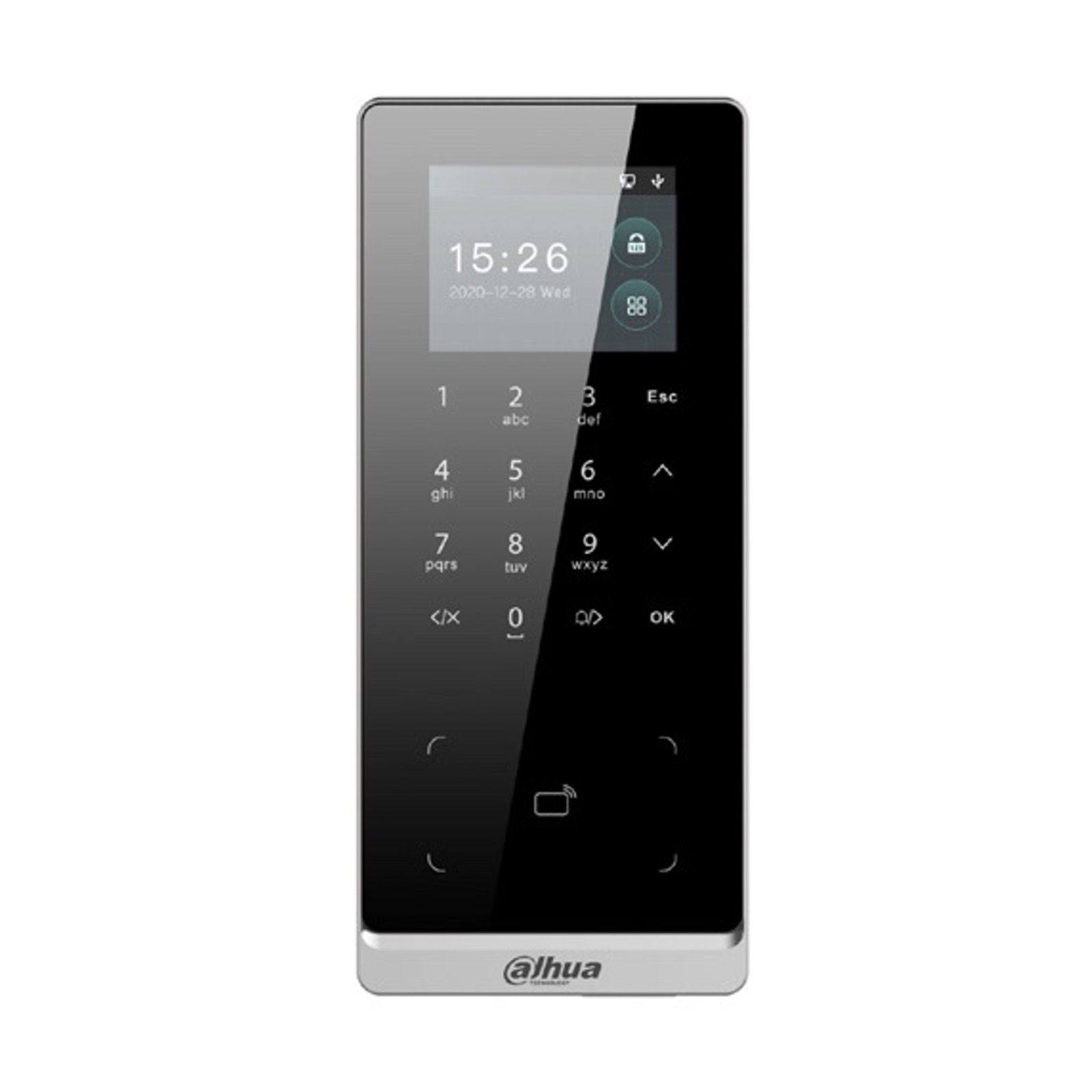

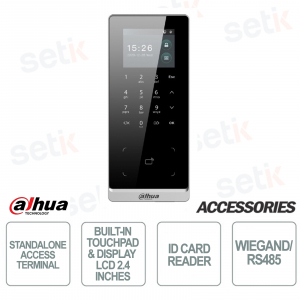

TERMINALE CON LETTORE DI PROSSIMITA' PER TESSERE ID CARD, SBLOCCO PASSWORD E TELECOMANDO - DISPLAY LCD 2.4 POLLICI - DAHUA - ASI2201H-DW

Dettagli prodotto
- Terminale standalonne per il controllo degli accessi - Dahua Security - ASI2201H-DW
 - Tastiera touchscreen
 - Display LCD da 2,4" integrato
 - Comunicazione: Wiegand, RS485 al lettore
 - Supporta comunicazione WIFI + RJ45 LAN 100M
 - Identificazione attraverso Tessere ID Card, Codice, telecomando
 - Range di lettura tessere 0-5cm
 - Capacità fino a 30.000 utenti, fino a 30.000 password, fino a 30.000 carte, fino a 150.000 eventi
 - RS232
 - RS485
 - Wiegand
 - Porta 1x USB 2.0
 - Protezione per esterno IP65 (con uso del silicone sigillante)

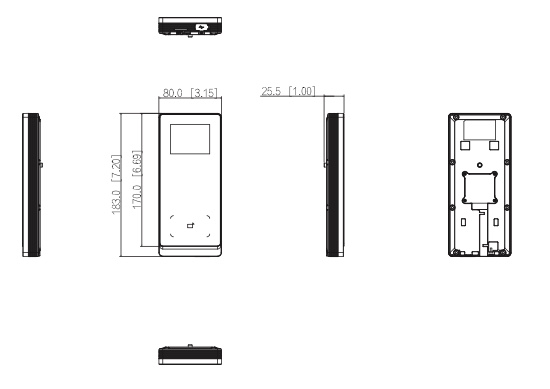

 - Dimensioni: 183 mm × 80 mm × 25.5 mm
 - Temperatura di funzionamento supportata: –30 °C to +65 °C
 - Per uso indoor / outdoor
 - Alimentazione: 12 V DC, 1 A
 - Adattatore non incluso
 - Peso nnetto 262g
 - Per installazione a parete
 - Staffa inclusa
 - In Policarbonato e acrilico

Scheda tecnica
| ASI2201H-DW | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 System  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Main Processor  |
 High-performance embedded processor  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Protocol  |
 IPv4; TCP; UDP; P2P  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Basic  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Display Screen  |
 2.4" LCD  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Screen Type  |
 LCD  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Resolution  |
 240 (H) × 320 (V)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Voice Prompt  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Buzzer  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Casing  |
 PC + ABS/acrylic panel  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Function  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Unlock Mode  |
 Card/Remote/Password unlock and unlock through their combinations  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Type  |
 ID card  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Period List  |
 128  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Holiday Period  |
 128  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Update  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 First User Unlock  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Remote Verification  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Restricted List/Trusted List  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Wi-Fi  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Peripheral Card Reader  |
 1 × RS-485 card reader 1 × Wiegand card reader  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Multi-user Authentication  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Multi-factor Authentication  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Web Configuration  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Auto Registration  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Reading Distance  |
 0-5 cm (0" to 1.97")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 User  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 User (Card) Type  |
 General user, VIP user, patrol user, guest user, blocklist user and others  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Capacity  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 User Capacity  |
 30,000 users  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Card Capacity  |
 30,000  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Password Capacity  |
 30,000  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Record Capacity  |
 150,000 unlock records  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Port  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 RS-485  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 RS-232  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Wiegand  |
 1-ch input/output  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 USB  |
 1 × USB2.0 port  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Port  |
 1 × RJ-45, 100 Mbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Input  |
 2 (digital quantity)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Output  |
 1 (relay)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm Linkage  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Doorbell  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Exit Button  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Door Status Detection  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Lock Control  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Alarm  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Anti-pass Back  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Tamper Alarm  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Duress Alarm  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Door Sensor Timeout  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Intrusion  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Illegal Card Exceeding Threshold  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Adapter  |
 Optional  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 12 V DC, 1 A  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Protection  |
 IP65 (silicone sealant is needed, see the quick start guide)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 ≤ 12 W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 183 mm × 80 mm × 25.5 mm (7.20" × 3.15" × 1.00") (H × W × D)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packaging Dimensions  |
 248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60") (H × W × D, 1 in an inner carton)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –30 °C to +65 °C (–22 °F to +149 °F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 10%–95% (RH), no condensing  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Environment  |
 Indoor; outdoor  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 262 g (0.58 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 462 g (1.02 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Accessory  |
 Bracket (included)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Installation  |
 Surface mount  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE; FCC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ulteriori dettagli
![]()  |
 Questo terminale è STANDALONE. Ciò significa che è autonomo, in grado di gestire le funzioni senza dover integrare altri dispositivi.  |
![]()  |
 Dotato di Display LCD da 2,4" (240x320 pixel di risoluzione)  |
|



  |
 Terminale autonomo con tastiera touch e identificazione tramite: - Tessera ID CARD  |
![]() ![]()  |
 Comunicazione tramite TCP/IP RJ45 (100Mbps), RS485 o Wiegand
  |
|

  |
 Fino a 30.000 utenti,  |
|
 Software Smart PSS di Dahua
  |
|
![]()  |
 Equipaggiato di porta USB 2.0  |
|
 Questo prodotto è coperto da Garanzia di 24 mesi.  |
