Terminale d'accesso - Riconoscimento volto - Schede ID Card - Password - Display LCD integrato - Camera da 2MP
ASI6213S-D - Terminale per il controllo accessi dahua, con riconoscimento facciale, accesso via scheda ID Card, password, combinazione dei precedenti accessi. Display TFT da 4.3 integrato touchscreen con risoluzione 480x272 - Dual lens camera da 2MP con DWDR - Distanza volto 0.3-1.5m - RS485 - Wiegand - 1 input allarme - Exit Button - Tamper anti-manomissione - Accuratezza 99,9% - Tempo di scansione volto 0.2s - 6.000 utenza - 6.000 volti - 6.000 tessere ID Card - 6.000 password - 300.000 eventi - Alimentazione 12V DC, 1.5A - Per indoor e outdoor - Installazione a parete con staffa inclusa.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

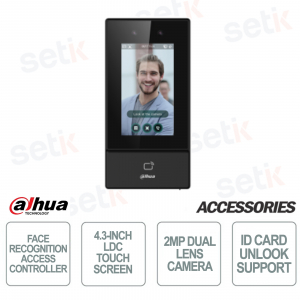

ASI6213S-D - DAHUA | LETTORE BIOMETRICO RICONOSCIMENTO VOLTO / SCHEDE ID CARD/ PASSWORD - CON DISPLAY INTEGRATO E CAMERA 2MP CON DWDR
Il terminale per riconoscimento volto ASI6213S-D di Dahua, è un tipo di dispositivo controllo accessi con integrato funzione di rilevamento del volto.





 CARATTERISTICHE PRINCIPALI:
- Schermo LCD TFT 4.3 pollici con risoluzione 480x272
 - Doppia Telecamera da 2MP CMOS, con DWDR
 - Riempimento automatico della luce, riduce l'inquinamento luminoso con l'uso di luce bianca e luce IR
 - Supporta fino a 6.000 utenti, 6.000 volti, 6.000 tessere, 6.000 300.000 eventi
 - Supporta sblocco via volto, tessere ID Card, password e relative combinazioni
 - Distanza telecamera per rilevamento volto: da 0.3 m–1.5 m, altezza umana: da 1.1 m–2.0 m
 - Velocità rilevamento volto: 0,2s a volto
 - Supporta allarme coercizione, allarme manomissione, allarme intrusione, allarme timout contatto porta, e allarme tessera illegale
 - Alimentazione: 12V DC, 1.5A
 - Protezione di livello IP65 ideale per l'uso in esterni
 - Materiale: Policarbonato e scocca in metallo per la parte posteriore
 - Dimensioni: 180,1 mm × 90,1 mm × 27,0 mm
 - Peso: 0.70 kg (1.54 lb)
 - Temperatura di funzionamento: –30°C to 60°C
 - Ideale per l'installazione in ambienti aperti o chiusi, a parete, mediante staffa in dotazione

Scheda tecnica
| ASI6213S-D | |
|
 Technical Speci?cation  |
|
|
 System  |
|
|
 Main Processor  |
 Embedded Processor  |
|
 Button Type  |
 Touch button  |
|
 Internet Protocol  |
 UDP; TCP; IPv4; RTSP; SIP; P2P; RTP  |
|
 OSDP Protocol  |
 Yes  |
|
 Interoperability  |
 CGI; ONVIF  |
|
 SDK  |
 Yes  |
|
 Basic  |
|
|
 Product Type  |
 Standalone  |
|
 Display  |
 4.3 LDC  |
|
 Screen Type  |
 Capacitive touch screen  |
|
 Screen Resolution  |
 480 × 272  |
|
 Camera  |
 2MP CMOS high definition camera  |
|
 WDR  |
 DWDR  |
|
 Light Compensation  |
 Auto IR  |
|
 Voice Prompt  |
 Yes  |
|
 Buzzer  |
 Yes  |
|
 Casing  |
 PC+GF  |
|
 Function  |
|
|
 Unlock. Mode  |
 Card/Password/Face unlock and unlock through their combinations  |
|
 Card Type  |
 ID cards  |
|
 Period List  |
 128 periods  |
|
 Holiday Period  |
 128 periods  |
|
 Network Update  |
 Yes  |
|
 First User Unlock  |
 Yes  |
|
 Remote Verification  |
 Yes  |
|
 Restricted List/Trusted List  |
 Yes  |
|
 Peripheral Card Reader  |
 1 × RS-485 card reader  |
|
 Multi-user Authentication  |
 Yes  |
|
 Real-time Monitoring  |
 Yes  |
|
 Multi-factor Authentication  |
 Yes  |
|
 Capture Function  |
 Yes  |
|
 Web Configuration  |
 Yes  |
|
 Auto Registration  |
 Yes  |
|
 Performance  |
|
|
 Card Reading Distance  |
 0 cm–3 cm (0"–1.18")  |
|
 Face Recognition Height Range  |
 1.1 m–2.0 m (3.61 ft–6.56 ft)  |
|
 Face Recognition Distance  |
 0.3 m–1.5 m (0.98 ft–4.92 ft)  |
|
 Face Recognition Accuracy  |
 99.9%  |
|
 Face Recognition Time  |
 0.2 s  |
|
 User  |
|
|
 User (Card) Type  |
 Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2  |
|
 Capacity  |
|
|
 User Capacity  |
 6,000  |
|
 Face Image Capacity  |
 6,000  |
|
 Card Capacity  |
 10.000  |
|
 Password Capacity  |
 6.000  |
|
 Record Capacity  |
 300.000  |
|
 Port  |
|
|
 RS-485  |
 1  |
|
 Wiegand  |
 1  |
|
 USB  |
 1  |
|
 Network Port  |
 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port  |
|
 Alarm Input  |
 1  |
|
 Alarm Output  |
 1  |
|
 Alarm Linkage  |
 Yes  |
|
 Exit Button  |
 1  |
|
 Door Status Detection  |
 1  |
|
 Lock Control  |
 1  |
|
 Alarm  |
|
|
 Anti-pass Back  |
 Yes  |
|
 Tamper Alarm  |
 Yes  |
|
 Duress Alarm  |
 Yes  |
|
 Door Sensor Timeout  |
 Yes  |
|
 Intrusion  |
 Yes  |
|
 Illegal Card Exceeding Threshold  |
 Yes  |
|
 General  |
|
|
 Power Adapter  |
 Included  |
|
 Power Supply  |
 12 VDC, 1.5 A  |
|
 Protection  |
 IP65  |
|
 Power Consumption  |
 ≤12 W  |
|
 Product Dimensions  |
 180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") (L × W × H)  |
|
 Packaging Dimensions  |
 268 mm × 136 mm × 78 mm (10.55" × 5.35" × 3.07") (L × W × H, in an inner carton)  |
|
 Operating Temperature  |
 –30 °C to +60 °C (–22 °F to +140 °F)  |
|
 Operating Humidity  |
 0%–90% (RH), non-condensing  |
|
 Operating Altitude  |
 0 m–1,300 m (0 ft–4265.09 ft)  |
|
 Operating Environment  |
 Outdoor; Indoor  |
|
 Gross Weight  |
 0.70 kg (1.54 lb)  |
|
 Accessory  |
 Wall mount bracket (included)  |
|
 Installation  |
 Turnstile mount; 86 case mount; wall mount; surface mount  |
