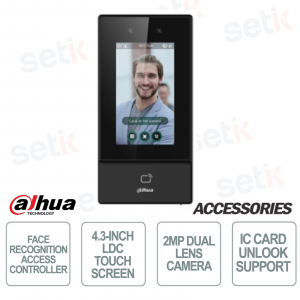

ASI6213S - DAHUA | LETTORE BIOMETRICO RICONOSCIMENTO VOLTO / SCHEDE IC CARD/ PASSWORD - CON DISPLAY INTEGRATO E CAMERA 2MP CON DWDR
Il terminale per riconoscimento volto ASI6213S di Dahua, è un tipo di dispositivo controllo accessi con integrato funzione di rilevamento del volto.





 CARATTERISTICHE PRINCIPALI:
- Schermo LCD TFT 4.3 pollici con risoluzione 480x272
- Doppia Telecamera da 2MP CMOS, con DWDR
- Riempimento automatico della luce, riduce l'inquinamento luminoso con l'uso di luce bianca e luce IR
- Supporta fino a 6.000 utenti, 6.000 volti, 6.000 tessere, 6.000 300.000 eventi
- Supporta sblocco via volto, tessere IC Card, password e relative combinazioni
- Distanza telecamera per rilevamento volto: da 0.3 m–1.5 m, altezza umana: da 1.1 m–2.0 m
- Velocità rilevamento volto: 0,2s a volto
- Supporta allarme coercizione, allarme manomissione, allarme intrusione, allarme timout contatto porta, e allarme tessera illegale
- Alimentazione: 12V DC, 1.5A
- Protezione di livello IP65 ideale per l'uso in esterni
- Materiale: Policarbonato e scocca in metallo per la parte posteriore
- Dimensioni: 180,1 mm × 90,1 mm × 27,0 mm
- Peso: 0.70 kg (1.54 lb)
- Temperatura di funzionamento: –30°C to 60°C
- Ideale per l'installazione in ambienti aperti o chiusi, a parete, mediante staffa in dotazione
Scheda tecnica
| ASI6213S | |
| Technical Speci?cation | |
| System | |
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Internet Protocol | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| OSDP Protocol | Yes |
| Interoperability | CGI; ONVIF |
| SDK | Yes |
| Basic | |
| Product Type | Standalone |
| Display | 4.3 LDC |
| Screen Type | Capacitive touch screen |
| Screen Resolution | 480 × 272 |
| Camera | 2MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Casing | PC+GF |
| Function | |
| Unlock. Mode | Card, remote, password, QR code, face and combination unlock |
| Card Type | IC cards |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Peripheral Card Reader | 1 × RS-485 card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Capture Function | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Face Recognition Height Range | 1.1 m–2.0 m (3.61 ft–6.56 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 s |
| User | |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2 |
| Capacity | |
| User Capacity | 6,000 |
| Face Image Capacity | 6,000 |
| Card Capacity | 10.000 |
| Password Capacity | 6.000 |
| Record Capacity | 300.000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 |
| Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Alarm Linkage | Yes |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| General | |
| Power Adapter | Included |
| Power Supply | 12 VDC, 1.5 A |
| Protection | IP65 |
| Power Consumption | ≤12 W |
| Product Dimensions | 180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") (L × W × H) |
| Packaging Dimensions | 268 mm × 136 mm × 78 mm (10.55" × 5.35" × 3.07") (L × W × H, in an inner carton) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Operating Environment | Outdoor; Indoor |
| Gross Weight | 0.70 kg (1.54 lb) |
| Accessory | Wall mount bracket (included) |
| Installation | Turnstile mount; 86 case mount; wall mount; surface mount |
