ASI6214S - Terminale per il controllo accessi dahua, con riconoscimento facciale, impronte digitali, accesso via scheda IC Card, password, QR code, telecomando e combinazione dei precedenti accessi. Display da 4.3 integrato touchscreen capacitivo con risoluzione 480x272 - Dual lens camera da 2MP - Distanza volto 0.3-1.5m - RS485 - Wiegand - 1 input/output allarme - Exit Button - Tamper anti-manomissione – Accuratezza nella verifica del volto 99,9% - Tempo di scansione volto 0.2s - 6.000 utenti - 6.000 volti - 10.000 tessere ID Card - 6.000 password - 300.000 eventi - Alimentazione 12V DC, 1.5A - Per indoor e outdoor - Installazione a parete con staffa inclusa.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

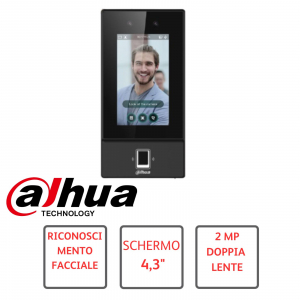

ASI6214S - DAHUA | TERMINALE CONTROLLO ACCESSI CON RICONOSCIMENTO VOLTO / IMPRONTE / SCHEDE IC CARD/ PASSWORD / QR CODE - CON DISPLAY INTEGRATO E CAMERA 2MP
Il terminale per riconoscimento facciale ASI6214S di Dahua, è un tipo di dispositivo controllo accessi con integrata la funzione di rilevamento del volto e impronte digitali. Equipaggiato di lettore di tessere RFID IC CARD Reader, permette autenticazione multipla:via tessere, impronte, QR code, password,telecomando,volto e relative combinazioni. Supporta fino a 6.000 utenti, 6.000 volti, 10.000 tessere, 6.000 password, 300.000 eventi. Integrazione allarme, RS485/Wiegand/USB, messaggi vocali. È una soluzione ideale per ambienti indoor e outdoor, installabile a parete mediante staffa inclusa nella confezione.





 CARATTERISTICHE PRINCIPALI:
-
Schermo LCD touchscreen capacitivo 4.3 pollici con risoluzione 480x272
-
Doppia Telecamera da 2MP CMOS,
-
Compensazione della luce automatico con IR
-
Supporta fino a 6.000 utenti, 6.000 volti, 10.000 tessere, 6.000 password, 300.000 eventi
-
Supporta sblocco via volto, impronte, tessere IC Card, password, QR code, telecomando e relative combinazioni
-
Distanza lettura della carta: 0-3 cm
-
Distanza telecamera per rilevamento volto: da 0.3 m–1.5 m
-
Velocità rilevamento volto: 0,2s a volto
-
Modalità verifica impronte: 1:N
-
Supporta liste bianche/nere
-
128 periodi programmabili
-
128 periodi festivi
-
Sblocco prima tessera
-
Lettore tessere esterno: 1 lettore RS485, 1 lettore Wiegand
-
Comunicazione: 1 porta RS485, 1 porta Wiegand, 1 porta USB
-
Porta di rete Ethernet (10/100/1000M)
-
Protocolli di rete: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP
-
Supporta protocollo OSDP
-
Compatibile con ONVIF, CGI, SDK, API
-
Supporta allarme Anti-passback, manomissione, coercizione
-
Messaggi vocali integrati
-
Buzzer integrato
-
Alimentazione: 12V DC, 1.5A (alimentatore incluso)
-
Consumo: ≤12W
-
Protezione di livello IP65 ideale per l'uso in esterni
-
Materiale: Policarbonato
-
Dimensioni: 180,1 mm × 90,1 mm × 27,0 mm
-
Peso: 0.70 kg
-
Temperatura di funzionamento: –30°C to 60°C
-
Umidità relativa: 0% ~ 90% (senza condensa)
-
Ideale per l'installazione in ambienti aperti o chiusi, a parete
Scheda tecnica
| Product Features | |
|---|---|
| Product | Access Control Terminal Dahua with Facial Recognition |
| Screen | 4.3" Touch Screen |
| Capacity | Up to 6,000 users/fingerprints/faces, 10,000 cards, and 6,000 passwords |
| Event Log | Records up to 300,000 events |
| Audio Support | Supports voice messages |
| Protection Level | IP65 |
| Usage Area | Indoor and outdoor use |
| Specifications | |
| Processor | Built-in Processor |
| Display | 4.3" Capacitive Touch Screen (272 x 480 px) |
| Camera | 2 MP Dual-lens High Definition Camera |
| WDR | Digital WDR |
| Light Compensation | Automatic IR |
| Unlock Modes | Fingerprint, Card, Remote Control, Password, QR Code, Face, and Combinations |
| Remote Verification | Yes |
| Whitelist/Blacklist | Supports whitelist/blacklist |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Web Configuration | Supports Web Configuration |
| Voice Messages | Yes |
| Buzzer | Built-in |
| Facial Recognition Height Range | 1.1 ~ 2 meters |
| Facial Recognition Distance | 0.3 ~ 1.5 meters |
| Facial Verification Accuracy | 99.9% |
| Facial Recognition Time | 0.2 seconds |
| Fingerprint Verification Mode | 1:N |
| IC Card Reader | Yes |
| Card Reading Distance | 0 ~ 3 cm |
| Users Capacity | Up to 6,000 users |
| Face Images Capacity | Up to 6,000 facial images |
| Cards Capacity | Up to 10,000 cards |
| Password Capacity | Up to 6,000 passwords |
| Event Log Capacity | Up to 300,000 events |
| Schedule List | 128 schedules |
| Holiday Periods | 128 holiday periods |
| First Card Unlock | Yes |
| External Card Reader | 1 RS485 reader, 1 Wiegand reader |
| Communication | 1 RS485 port, 1 Wiegand port, 1 USB port |
| Alarm I/O | 1 alarm input / 1 alarm output |
| Alarm Linkage | Yes |
| Exit Button | 1 exit request button |
| Door Status | 1 door status input |
| Lock Control | 1 lock control output |
| Anti-passback, Tamper, and Coercion Alarms | Yes |
| Network Port | Ethernet port (10/100/1000M) |
| Network Protocols | UDP, TCP, IPv4, RTSP, SIP, P2P, RTP |
| OSDP Protocol Support | Yes |
| ONVIF, CGI, SDK, API Support | Yes |
| Operating Temperature | -30°C ~ +60°C |
| Humidity | 0% ~ 90% relative humidity (non-condensing) |
| Protection Level | IP65 |
| Usage Area | Indoor and outdoor use |
| Power Supply | 12 V DC, 1.5 A (power adapter included) |
| Power Consumption | ≤12W |
| Dimensions | 90.1 (W) x 180.1 (H) x 27 mm |
| Gross Weight | 700 g |
| Installation | Wall-mounted |
