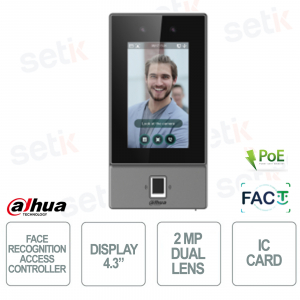

ASI6214S-PW - DAHUA | TERMINALE CONTROLLO ACCESSI CON RICONOSCIMENTO VOLTO / IMPRONTE / SCHEDE IC CARD/ PASSWORD / QR CODE - CON DISPLAY INTEGRATO E CAMERA 2MP - POE
Il terminale per riconoscimento facciale ASI6214S-PW di Dahua, è un tipo di dispositivo controllo accessi con integrata la funzione di rilevamento del volto e impronte digitali. Equipaggiato di lettore di tessere RFID IC CARD Reader, permette autenticazione multipla:via tessere, impronte, QR code, password,telecomando,volto e relative combinazioni. Supporta fino a 6.000 utenti, 6.000 volti, 10.000 tessere, 6.000 password, 300.000 eventi. Integrazione allarme, RS485/Wiegand/USB, messaggi vocali. È una soluzione ideale per ambienti indoor e outdoor, installabile a parete mediante staffa inclusa nella confezione.

CARATTERISTICHE PRINCIPALI:
-
Schermo LCD touchscreen capacitivo 4.3 pollici con risoluzione 480x272
-
Doppia Telecamera da 2MP CMOS,
-
Compensazione della luce automatico con IR
-
Supporta fino a 6.000 utenti, 6.000 volti, 10.000 tessere, 6.000 password, 300.000 eventi
-
Supporta sblocco via volto, impronte, tessere IC Card, password, QR code, telecomando e relative combinazioni
-
Distanza lettura della carta: 0-3 cm
-
Distanza telecamera per rilevamento volto: da 0.3 m–1.5 m
-
Velocità rilevamento volto: 0,2s a volto
-
Modalità verifica impronte: 1:N
-
Supporta liste bianche/nere
-
128 periodi programmabili
-
128 periodi festivi
-
Sblocco prima tessera
-
Lettore tessere esterno: 1 lettore RS485, 1 lettore Wiegand
-
Comunicazione: 1 porta RS485, 1 porta Wiegand, 1 porta USB
-
Porta di rete Ethernet (10/100/1000M)
-
Protocolli di rete: UDP, TCP, IPv4, RTSP, SIP, P2P, RTP
-
Supporta protocollo OSDP
-
Compatibile con ONVIF, CGI, SDK, API
-
Supporta allarme Anti-passback, manomissione, coercizione
-
Messaggi vocali integrati
-
Buzzer integrato
-
Alimentazione: 12V DC, 1.5A PoE (alimentatore incluso)
-
Consumo: ≤12W
-
Protezione di livello IP65 ideale per l'uso in esterni
-
Materiale: Policarbonato
-
Dimensioni: 180,1 mm × 90,1 mm × 27,0 mm
-
Peso: 0.70 kg
-
Temperatura di funzionamento: –30°C to 60°C
-
Umidità relativa: 0% ~ 90% (senza condensa)
-
Ideale per l'installazione in ambienti aperti o chiusi, a parete
Scheda tecnica
| Model | ASI6214S-PW |
| System | |
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
| OSDP Protocol | Yes |
| Interoperability | CGI; ONVIF |
| SDK and API | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | 4.3" LCD |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 272 (H) × 480 (V) |
| Camera | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Casing Material | PC+GF |
| Function | |
| Unlock Mode | Card, remote, password, QR code, Fingerprint, face and combination unlock |
| Card Type | IC cards |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Peripheral Card Reader | 1 × RS-485 card reader 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Capture Function | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Face Recognition Height Range | 1.1 m–2.0 m (3.61 ft–6.56 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 s |
| Fingerprint Verification Mode | 1:N |
| User | |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2 |
| Capacity | |
| User Capacity | 6.000 |
| Face Image Capacity | 6.000 |
| Fingerprint Capacity | 6.000 |
| Card Capacity | 10.000 |
| Password Capacity | 6.000 |
| Record Capacity | 300.000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 |
| Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Alarm Linkage | Yes |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Duress Fingerprint | Yes |
| Illegal Card Exceeding Threshold | Yes |
| General | |
| Power Adapter | Included |
| Power Supply | Stanard PoE 12 VDC, 1.5 A |
| Protection | IP65 |
| Power Consumption | ≤12 W |
| Product Dimensions | 180.1 mm × 90.1 mm × 27.0 mm (7.09" × 3.55" × 1.06") (L × W × H) |
| Packaging Dimensions | 268 mm × 136 mm × 78 mm (10.55" × 5.35" × 3.07") (L × W × H, in an inner carton) 590 mm × 432 mm × 302 mm (23.23" × 17.01" × 11.89") (L × W × H, protection box) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Operating Environment | Outdoor; Indoor |
| Gross Weight | 0.70 kg (1.54 lb) |
| Accessory | Wall mount bracket (included) |
| Installation | Turnstile mount; 86 case mount; Wall mount; surface mount |
