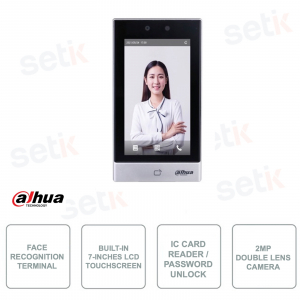

TERMINALE CONTROLLO ACCESSI - AUTENTICAZIONE CON RILEVAMENTO VOLTO, PASSWORD O IC CARD - DAHUA - ASI7213S-W
Il terminale per riconoscimento volto ASI7213S-W di Dahua, è un tipo di dispositivo controllo accessi con integrato funzione di Rilevamento del volto, lettura IC Card e Password per l'autenticazione.


CARATTERISTICHE PRINCIPALI:
- Terminale per il controllo degli accessi - Dahua - ASI7213S-W
- Display LCD 7" con risoluzione 600 (H) × 1024 (V), touschscreen capacitivo
- Camera da 2MP, doppia ottica e DWDR
- Consente l'autenticazione grazie a:
- Rilevamento del volto (50.000 registrabili)
- Lettura schede IC Card (100.000 registrabili, tempo di lettura veloce 0.2ms - distanza 0-3cm)
- Password (50.000 registrabili - Record eventi: fino a 300.000
- Supporta autenticazione con combinazione di elementi (Es: volto + password..)
- Allarme Tamper
- Allarme: 2in/1out
- Supporta Wiegand (in inpit e in output)
- Supporta RS485
- Supporta RS232
- Porta USB 2.0
- Exit Button
- Door Status Detection
- Lock COntrol
- Allarme intrusione
- Include alimentatore
- Alimentazione: 12 VDC, 2 A
- Dimensioni: 218 mm × 118 mm × 24.2 mm
- Per uso in interni
- Temperatura supportata di esercizio: –20 °C to +55 °C
- Umidità relativa: 0%–90% (RH), non-condensing
- Peso netto: 0.67 kg
- Include staffa di montaggio a muro
Scheda tecnica
| ASI7213S-W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
OSDP Protocol |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
CGI;ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Type |
Standalone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Screen |
7" LCD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Capacitive Touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
600 (H) × 1024 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
2-MP dual-lens CMOS camera |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Voice Prompt |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Tempered glass/PC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Verification Method |
Card; remote; password; face; combination unlock |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Period List |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Holiday Period |
128 periods |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Update |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
First User Unlock |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote Verification |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Restricted List/Trusted List |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Advertisement Playing |
Support graphic advertisement play |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Peripheral Card Reader |
Supports 1 × RS-485 card reader; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-user Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Real-time Monitoring |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-factor Authentication |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capture Function |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Registration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 cm–3 cm (0"–1.18") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Height Range |
0.9 m–2.4 m (2.95 ft–7.87 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Distance |
0.3 m–2.0 m (0.98 ft–6.56 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Accuracy |
99.9% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Time |
0.2 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supported Codes |
QR code |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Code Type |
Electronic code; printed code |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User (Card) Type |
General users, patrol users, blocklist users, VIP users, guest users, custom user 1, custom user 2, and other users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
User Capacity |
50000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Image Capacity |
50000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Capacity |
100000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Password Capacity |
50000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Capacity |
300000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-232 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiegand |
1 (input or output) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
1 × USB 2.0 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
2 (digital quantity) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 (relay) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-pass Back |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Duress Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Sensor Timeout |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intrusion |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illegal Card Exceeding Threshold |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Included |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 2 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤24 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
218 mm × 118 mm × 24.2 mm (8.58" × 4.65" × 0.95") (H × W × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
Carton: 299 mm × 164 mm × 72 mm (11.78" × 6.46" × 2.83") (H × W × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
0%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–1,300 m (0 ft–4,265.09 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.67 kg (1.48 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Included: Wall mount bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Turnstile Mount; 86 case mount; wall; floor bracket mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
