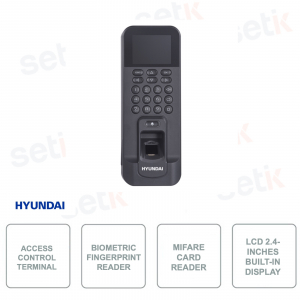

HYU-728 - Hyundai - Terminale per il controllo degli accessi - Con lettore impronte digitali biometrico e lettore schede MIFARE - Display LCD 2.4 pollici integrato - Keypad - 2.000 impronte, 3.000 schede utenza, 100.000 eventi - Indicatore LED di stato e alimentazione - 1 sensore porta, 1 pulsante di uscita (REX) - USB 2.0 - Non adatto per uso in esterno.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

TERMINALE CONTROLLO ACCESSI - LETTORE IMPRONTE - LETTORE SCHEDE MI - DISPLAY LCD 2.4 POLLICI - KEYPAD - HYU-728

HYU-728 - HYUNDAI - Termiale per il controllo accessi
Dettagli prodotto
|
CATALOGO HYUNDAI: Cerchi un prodotto HYUNDAI ma non sei riuscito a trovarlo sul nostro sito? Non ti preoccupare, possiamo fornirti TUTTI i prodotti Hyundai: consulta il CATALOGO oppure contattaci via mail. |

- Terminale per il controllo degli accessi - Hyundai - HYU-728
- Lettore biometrico di impronte digitali
- Lettore schede Mifare
- Display LCD 2.4 Pollici integrato
- Indicatori LED di stato e di alimentazione
- Lettura della carta: <1 secondo
- Autenticazione dell'impronta: <1 secondo
- Comunicazione: TCP / IP (10/100 Mbps), RS485 (per unità di controllo porta sicura)
- 3.000 impronte, 3.000 schede utente, 100.000 eventi registrabili
- 1 sensore porta, 1 pulsante di uscita (REX)
- Interfaccia di uscita: 1 relè serratura
- Porta USB 2.0, tipo A
- Pulsante di reset
- 1 cicalino
- 1 altoparlante
- Non supporta lettori di schede esterni
- Protezione IP42 (non adatto per l'utilizzo in esterni)
- Temperatura di funzionamento di -10 ° C ~ + 55 ° C
- Alimentazione: 12V DC / 2A
- Dimensioni: 205 x 76,5 x 37 mm
Scheda tecnica
| HYU-728 |
|
Features |
|
Integrated Access Control Management |
|
2.4 "LCD screen |
|
Supports fingerprint registration from the terminal to the software in remote mode |
|
Up to 3,000 users, 3,000 fingerprints and a maximum of 100,000 events |
|
Two modes of Presence authentication: authentication by person and authentication by device |
|
Autonomous operation: add information of people, cards and fingerprints locally |
|
Export magnetic card data and support reports to USB |
|
Up to 32 normal shifts and up to 32 time shifts can be configured |
|
Up to 32 Presence holiday calendars and up to 128 Access Control holiday schedules can be configured |
|
Generate attendance reports automatically |
|
The doorbell can be connected to third party bells |
|
Tamper alarm and duress alarm |
|
Possibility of connecting an external secure door control unit via RS485 to prevent the door from opening in case of terminal destruction |
|
Supports third party alarm input |
|
Specs |
|
Embedded Linux operating system |
|
2.4 "LCD screen with a resolution of 320 x 240 pixels |
|
Card capacity: Up to 3,000 valid cards |
|
Events: Up to 100,000 events |
|
Attendance records: Up to 150,000 records |
|
Fingerprint capacity: Up to 3,000 fingerprints, up to 10 fingerprints or person |
|
Comparative fingerprint mode: 1: 1 and 1: N, N = 3,000 |
|
Card reading time: <1 second |
|
Footprint authentication time: <1 second |
|
FAR (False Acceptance Rate): ≤0.001% |
|
FRR (False Rejection Rate): ≤0.01% |
|
Fingerprint Recognizer: Optical Module |
|
Does not support external card readers |
|
The integrated card reader supports MIFARE cards, including cards with special shapes |
|
Card reading range: 0 ~ 4.5 cm |
|
Non-backlit keyboard |
|
Reset button |
|
Communication interface: TCP / IP (10 / 100Mbps), RS485 (for secure door control unit) |
|
Input interface: 1 door sensor, 1 exit button (REX) |
|
Output interface: 1 door lock relay |
|
USB 2.0 port, type A |
|
1 buzzer and 1 speaker |
|
LED indicators for power and status |
|
IP42 degree of protection |
|
Power: 12V DC / 2A |
|
Operating temperature of -10 ° C ~ + 55 ° C |
|
Operating Humidity: 10% ~ 90%, no condensation |
|
Dimensions: 205 x 76.5 x 37 mm |
