Il display professionale iiyama ProLite LH8664UHS-B3AG da 86" è una soluzione di digital signage 4K UHD (3840×2160) progettata per comunicazione visiva avanzata in ambienti retail, corporate e hospitality. Grazie al pannello IPS con luminosità fino a 500 cd/m² e angolo di visione 178°, garantisce immagini nitide e visibili da qualsiasi posizione. Integra Android 14 con piattaforme iiSignage² CMS e iiControl DMS, permettendo gestione e distribuzione dei contenuti da remoto in modo semplice e sicuro. La presenza di Wi-Fi integrato, FailOver automatico e connettività HDMI, USB-C e LAN assicura continuità operativa e massima flessibilità di integrazione. Progettato per funzionamento 24/7, con design sottile e orientamento landscape o portrait, è ideale per installazioni professionali di grande impatto visivo.

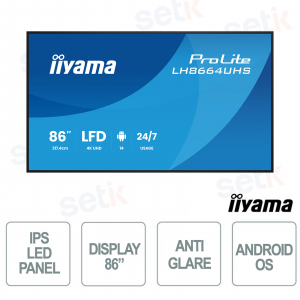

LH8664UHS-B3AG – MONITOR IPS 86" 4K UHD IIYAMA PROLITE - ANDROID OS - RJ45 - ANTI-GLARE - SIGNAL FAILOVER
Il display digital signage iiyama ProLite LH8664UHS-B3AG da 86" è progettato per applicazioni professionali che richiedono qualità visiva elevata e gestione avanzata dei contenuti. Grazie alla risoluzione 4K UHD (3840×2160) con pannello IPS antiriflesso e luminosità fino a 500 cd/m², garantisce immagini nitide e visibili da qualsiasi angolazione. Integra Android 14 con piattaforma iiSignage² CMS e iiControl DMS, consentendo gestione remota, creazione e distribuzione dei contenuti in modo semplice ed efficiente. La presenza di Wi-Fi integrato, connettività HDMI e USB-C, insieme alla funzione FailOver automatico, assicura continuità operativa e massima flessibilità di integrazione. Progettato per funzionamento continuo 24/7 con orientamento landscape o portrait, rappresenta una soluzione ideale per retail, aziende, hospitality e ambienti educativi.
Caratteristiche principali:
- Display professionale da 86" con risoluzione 4K UHD (3840×2160)
- Pannello IPS con luminosità fino a 500 cd/m² e angolo di visione 178°
- Sistema operativo Android 14 con iiSignage² CMS e iiControl DMS
- Wi-Fi integrato e connettività HDMI, USB-C, LAN e RS-232
- Funzione FailOver per continuità di visualizzazione dei contenuti
- Progettato per funzionamento continuo 24/7 con orientamento landscape o portrait
Ulteriori dettagli
Scheda tecnica
| Model | LH8664UHS-B3AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 85.6", 217.4cm |
| Panel | IPS, Anti-Glare coated glass, matte finish, haze 25% |
| Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Static contrast | 1200:1 |
| Response time MPRT) | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07G (8 Bits+FRC) (NTSC 72%) |
| Horizontal Sync | 28 - 160kHz |
| Viewable area W x H | 1895 x 1066mm, 74.6 x 41.9" |
| Bezel width (sides, top, bottom) | 21.5mm, 22mm, 22mm |
| Pixel pitch | 0.493mm |
| Colour | black, matte |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output |
HDMI x2 (2.0, max. 3840x2160 @60Hz, HDMI1: CEC/ ARC Support, HDMI2: CEC Support) |
| Monitor control input |
RS-232c x1 (2.5mm sub-mini jack) |
| Audio output |
Mini jack x1 (3.5mm, Headphone Connector) |
| Monitor control output |
RS-232c x1 (2.5mm sub-mini jack) |
| HDCP |
HDMI: 1.4 & 2.2, USB-C: 2.2 |
| USB ports | x2 (2.0) |
| USB HUB | x1 |
| FEATURES | |
| Integrated software | Android 14, iiSignage² (CMS), iiControl (DMS), iiShare, EShare, iiBrowser, MediaPlayer, TeamViewer, File manager, FailOver |
| WiFi | yes (Built-in WiFi5, 2.4G/ 5G) |
| Hardware | Soc: MT9679, CPU: Quad Core A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB, NPU: 1.2T, UI: 4K @30Hz |
| Extra | Wall mounting kit included (VESA 800x600mm) |
| Max. non-stop operating time | 24/7 |
| Anti image retention | Yes |
| Media playback | Yes |
| Housing (bezel) | metal |
| GENERAL | |
| OSD languages |
EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons |
Remote Sensor, Power Indicator |
| User controls |
network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export) |
| Plug&Play |
DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait |
| Fanless design | Yes |
| VESA mounting | 800 x 600mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), HDMI (1.8m), RS-232c (1.8m) |
| Guides | quick start guide, safety guide |
| Other | Wall mount bracket (800x600), PC Slot Bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Energy Star 8.0 (POn at 230V) | 132.62W |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 277W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 1937.8 x 1108.8 x 79.6mm |
| Box dimensions W x H x D | 2095 x 1215 x 225mm |
| Weight (without box) | 47.9kg |
| Weight (with box) | 62.2kg |
