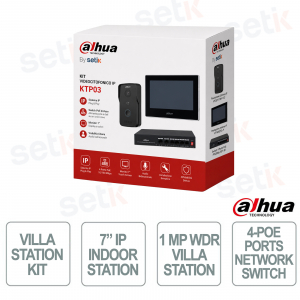

KIT COMPLETO PER STAZIONI VIDEOCITOFONIA IP - DAHUA - KTP03

|
Il kit KTP03 di Dahua Security, è uno dei migliori kit completi di videocitofonia in commercio. |
|
|
COSA INCLUDE QUESTO KIT? |
|
Dettagli prodotto
|
|
1) POSTAZIONE ESTERNA > Videocitofono IP POE ONVIF® Dahua - VTO2111D-P-S3 |
![]() |
1x Postazione da interno Dahua - VTH2621G-P |
![]() |
1x Switch PoE Dahua - PFS3006-4ET-36 |
Scheda tecnica
|
VTO2111D-P-S3 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF®; CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internet Protocol |
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
1/2.8" 2 MP CMOS high definition, low illumination/DWDR/ color/IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 107°; V: 61°; D: 122° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.264; H.265 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Resolution |
Main stream: 720p, WVGA, D1, CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
PAL: 25 fps; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
256 kbps to 4 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Compensation |
Auto IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Auto(ICR)/Color/B/W;Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
2-way Audio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression and cancellation/digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Mode |
Card; app; indoor monitor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
IC card |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Leave Videos |
Yes (SD card inserted in VTH is needed) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Reading Distance |
0 cm–4.5 cm (0"–1.77") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Issue Card Locally |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
PC + Acrylic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card |
10,000 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Output |
1 port, 12 V and 200 mA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Exit Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Door Status Detection |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lock Control |
1 port, normally closed by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
One 10 Mbps/100 Mbps Ethernet (8-core white ribbon cable) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC 1A; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Included: Alarm power ribbon cable, rain cover, brackets |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
135.1 mm × 70.6 mm × 34.6 mm (5.32" × 2.78" × 1.36") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 (silicone sealant is needed, see the quick start guide) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +60 °C (–20 °F to +60 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–95% (RH) (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
Beneath 3,000 m (9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Environment |
Outdoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤ 1 W (standby), ≤ 5 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
326 g (0.72 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VTH2621G-P |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux OS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Type |
Capacitive touchscreen |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display |
7" TFT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Resolution |
1024 × 600 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
2-way audio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 kHz; 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
Full digital |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Information Release |
Receive and view text information released by the management center |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Leave Videos |
Yes ( SD card inserted in VTO is needed) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DND Mode |
Do not disturb period can be set;Do not disturb mode can be set |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Extensions |
Villa: 9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Micro SD Card, Max 64 GB (reserved for software) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Input |
6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1 × 10/100 Mbps Ethernet port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC 1A; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Bracket (included) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (+14 °F to 131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–95% (RH) (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Standby ≤ 2 W; working ≤ 6 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
575 g (1.27 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PFS3006-4ET-36 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
4 PoE ports with 10/100 Mbps Base-TX |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE; FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.56 kg (1.23 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-corrosion Level |
Basic Protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
