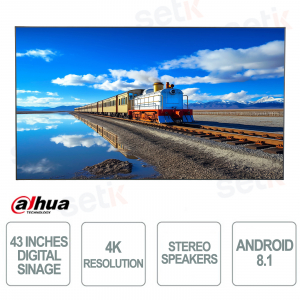

LDH43-HAI400K - Pannello industriale 16/7 Digital Signage - LCD - Risoluzione 3840 × 2160 4K - Tempo di risposta 8ms - Android 8.1 - Contrasto 1.200:1 - Colore 10 bit - Altoparlanti Stereo 2x5W - RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, TF card Slot 1 x 3.5 mm jack Mic - Ideale per affissioni pubblicitarie - VESA 400x400mm - Per uso in senso verticale ed orizzontale - Include alimentatore, Cavo HDMI, telecomando. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Download
DIGITAL SIGNAGE - CARTELLONE INDUSTRIALE 16/7 - LCD - 43 POLLICI - 4K - VERTICALE/ORIZZONTALE - ANDROID 8.1 - DAHUA - LDH43-HAI400K

CARATTERISTICHE PRINCIPALI:
- Cartellone industriale digitale - Dahua - LDH43-HAI400K
- Retroilluminazione LCD
- 16/7
- Display integrato da 43 Pollici
- Risoluzione 4K 3840 × 2160
- Colore 10 bit (8 bit + FRC), 1.07B Milioni di colori
- Contrasto 1.200:1
- Luminosità: 700nits
- Tempo di risposta: 8ms
- Idoneo all'uso verticale / orizzontale
- Angolo di visione: 178/178°
- RAM 2 GB
- ROM 16 GB
- Sistema operativo Android 8.1
- Speaker integrati 2x5W Stereo
- Ingressi: RJ45 ×1, USB ×2, TF card Slot ×1, HDMI ×1, 3.5mm Audio In×1
- Cavo di alimentazione, cavo HDMI e telecomando inclusi
- Alimentazione: AC100-240V, 50/60Hz
- Unità di alimentazione: interna
- Temperatura di funzionamento: 0 °C to +40 °C
- Umidità relativa: 10%~85%
- Dimensioni: 956 mm × 546 mm × 57.9 mm
- Peso netto: 10Kg
- VESA per affissione: 400x400mm
Scheda tecnica
| Model | LDH43-HAI400K |
| LCD Panel | |
| Panel Dimensions | 43 inch |
| Backlight | DLED |
| LCD Technology | IPS/VA |
| Aspect Ratio | 16:9 |
| Brightness | 700 cd/m² (typ.) |
| Contrast | IPS 1200:1(typ.) / VA 4000:1(typ.) |
| Display Colors | 10 bit (8 bit + FRC), 1.07B colors |
| Resolution | 3840 (H) × 2160 (V) |
| Viewing Angle | 178° (H); 178° (V) |
| Response Time | 8 ms (typ.) |
| Surface Treatment | Haze 1% |
| Built-in System | |
| Operating System | Android 8.1 |
| CPU | 4 cores A17, 1.6 GHZ |
| RAM | 2 GB |
| ROM | 16 GB |
| Video Decoding | 2-ch H.264 1080p@25 fps; 4-ch H.265 1080p@25 fps; 4-ch H.265 1080p@30 fps; 2-ch H.264 1080p@25 fps; 2-ch H.265 1080p@30 fps; 2-ch H.264 4K@25 fps; 2-ch H.265 4K@30 fps; 1-ch H.265 4K@60 fps; The decoding capacity statistics are based on tests with a single video file. |
| Function | |
| Audio Compression | MPEG-3,WMA,WAV |
| Video Compression | MPEG-4, H.264 AVC/MVC, H.265 HEVC |
| Video Format | mp4, avi, mov, mkv, wmv |
| Device Ports | |
| Network Port | 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet port |
| Wi-Fi | Optional (External Wi-Fi module) |
| Bluetooth | No |
| Data Transmission Ports | 2 × USB 2.0 ports (type A) 1 × TF card slot, up to 128 GB |
| Video Input | 1 × HDMI 1.4 (1080P @60Hz) |
| Video Output | No |
| Audio Port | 1 × 3.5 mm jack Mic |
| IR Receiver | Yes |
| Speaker | |
| Built-in Speaker | 2 × 5 W |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤160 W |
| Standby Power Consumption | ≤0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight) |
| Storage Temperature | –20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Humidity | 10%–85% (RH), non-condensing |
| Storage Humidity | 10%-90% (RH), non-condensing |
| Product Material | Plastic casing |
| Casing Color (Frame/Rear) | Black |
| Product Dimensions | 956 mm × 546 mm × 57.9 mm (37.64" × 21.50" × 2.28") (without bracket) |
| Packaging Dimensions | 1030 mm × 115 mm × 650 mm (40.55" × 4.53” × 25.59") |
| Net Weight | 10 kg (22.05 lb) |
| Gross Weight | 15 kg (33.07 lb) |
| Installation | Wall mount |
| Display Mode | Landscape/Portrait |
| Wall Mount VESA | 400 mm × 400mm |
| Accessory | Wall-mount bracket, power cord, legal and regulatory information, user's manual, remote control |
