Il monitor touchscreen Iiyama ProLite TW1623AS-B3P da 15.6” è una soluzione smart e interattiva progettata per spazi professionali, punti informativi e ambienti ad alto traffico. Dotato di touchscreen PCAP a 10 punti e sistema operativo Android 13, garantisce un’interazione fluida e precisa con possibilità di installare app direttamente sul dispositivo. La tecnologia PoE (Power over Ethernet) semplifica l’installazione fornendo alimentazione e connessione dati con un solo cavo. Con microfono e altoparlanti integrati, offre comunicazioni e presentazioni chiare in ogni contesto. Inoltre, il supporto al sistema CMS iiSignage² permette di gestire facilmente contenuti pubblicitari e informativi da remoto, rendendolo ideale per digital signage, meeting room e soluzioni smart business.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
TW1623AS-B3P – PROLITE IPS TOUCHSCREEN 15.6" IIYAMA - PCAP - ANDROID OS

Il monitor touchscreen Iiyama ProLite TW1623AS-B3P da 15.6” è la soluzione ideale per ambienti interattivi e professionali come sale riunioni, punti informativi e strutture ricettive. Dotato di tecnologia touch PCAP a 10 punti e sistema operativo Android 13, garantisce un’interazione precisa e fluida con installazione diretta delle app. La connettività PoE (Power over Ethernet) semplifica l’installazione fornendo alimentazione e dati tramite un solo cavo. Con microfono e altoparlanti integrati, offre comunicazioni chiare e immediate, mentre il supporto al CMS iiSignage² consente la gestione remota dei contenuti digitali per una comunicazione visiva efficiente e moderna.
Caratteristiche principali:
- Display 15.6” PCAP 10 punti per tocco preciso e interazione fluida
- Sistema Android 13 con installazione diretta delle app
- Connettività PoE per alimentazione e dati su un unico cavo
- Microfono e altoparlanti integrati per comunicazioni immediate
- iiSignage² CMS per gestione e controllo dei contenuti digitali
Ulteriori dettagli
Il connettore RJ45 (LAN) con supporto Power over Ethernet (PoE) fornisce alimentazione e dati attraverso un unico cavo, riducendo l’ingombro e semplificando l’installazione. Perfetto per ambienti professionali dove ordine e praticità sono fondamentali.
Il sistema iiSignage², piattaforma di Content Management System (CMS) sviluppata da iiyama, permette di creare, gestire e controllare contenuti digitali e messaggi pubblicitari in modo sicuro e remoto. Ideale per soluzioni di digital signage e comunicazione aziendale, assicura un controllo totale da qualsiasi postazione.

Scheda tecnica
| Model | TW1623AS-B3P |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 15.6", 39.5cm |
| Panel | IPS Panel Technology, LED |
| Native resolution | 1920 x 1080 (2 megapixel HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 450 cd/m² |
| Brightness | 385 cd/m² with touch |
| Light transmittance | 86% |
| Static contrast | 1000:1 with touch |
| Response time MPRT) | 30ms |
| Viewing zone | horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85° |
| Colour support | 16.7mln 8bit |
| Viewable area W x H | 344.2 x 193.6mm, 13.5 x 7.6" |
| Pixel pitch | 0.1792mm |
| Bezel colour and finish | black, matte |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal output | HDMI x1 (mini HDMI, 1920x1080 @60Hz) |
| Audio output | Mini jack x1 Speakers 2 x 2W |
| HDCP | yes |
| USB ports | x3 |
| RJ45 (LAN) | x1 (PoE - IEEE802.3 at/Max. 30W) |
| Microphone | x1 |
| FEATURES | |
| Integrated software | Android 13 |
| CPU | Rockchip RK3568 Quad-core A55 up to 2.0GHz |
| GPU | Mali-G52 |
| Storage | 32GB eMMC |
| Memory | 4GB LPDDR4X |
| WiFi | IEEE802.11a//b/g/n/ac |
| Bluetooth | 5.2 |
| Extra | Auto-rotation, SD card slot, anti-fingerprint coating, anti-glare coating, PoE |
| Kiosk mode | Yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 1.8mm |
| Glass hardness | 6H |
| GENERAL | |
| Control buttons | Power, home, brightness +, brightness -, volume +, volume - |
| Applications | Applications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| ACCESSORIES INCLUDED | |
| Guides | quick start guide, safety guide |
| Other | AC adapter, interchangeable plugs (EU/UK) |
| Cable cover | yes |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | DC 12 V |
| Power Usage | 9W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| REACH SVHC | above 0.1%: Lead |

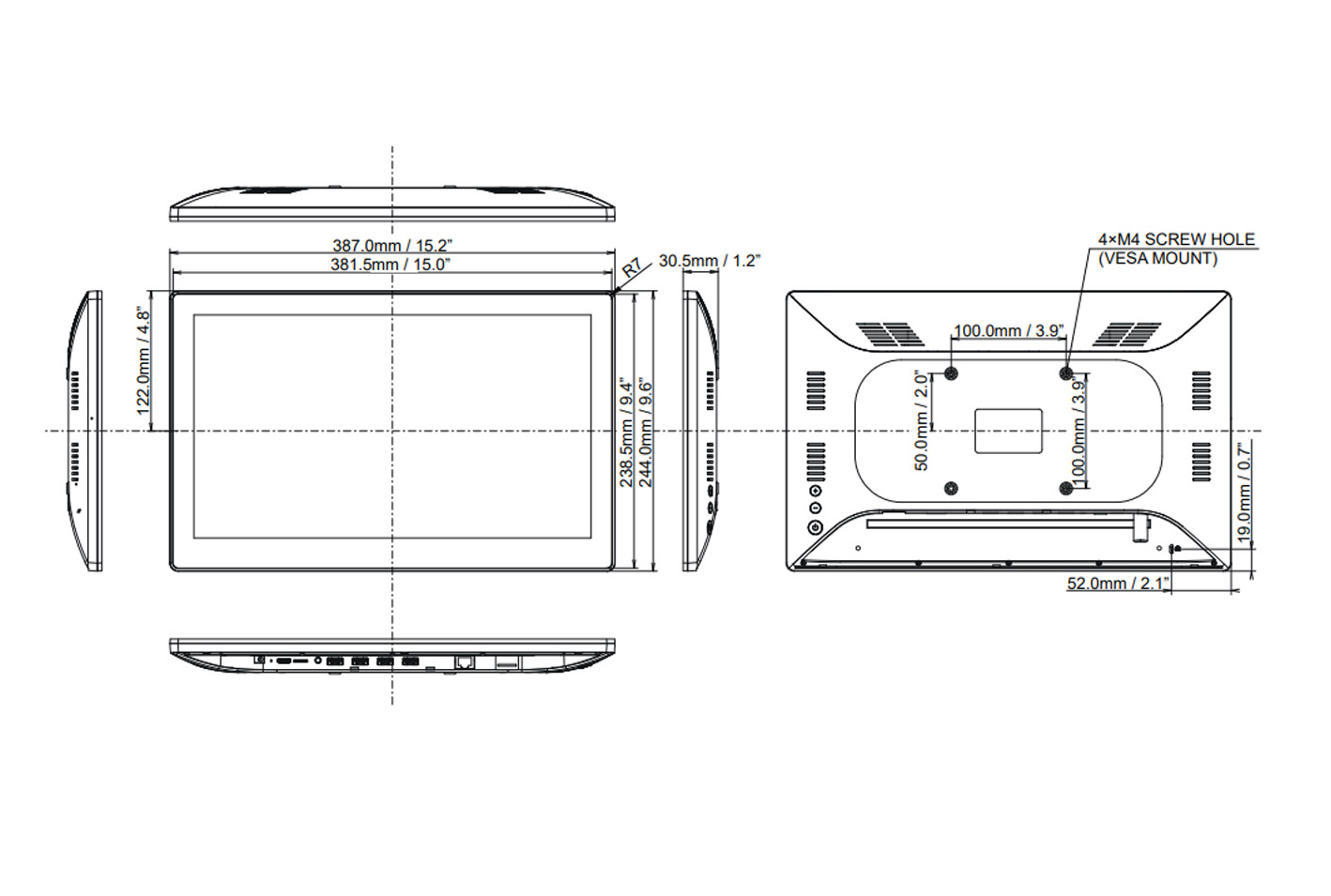

| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 387 x 244 x 30,5mm |
| Box dimensions W x H x D | 477 x 298 x 75mm |
| Weight (without box) | 1.5kg |
| Weight (with box) | 2.45kg |
