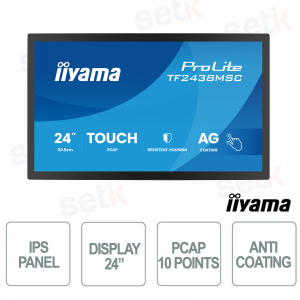

TF2438MSC-B2 – MONITOR IPS 24" IIYAMA PROLITE - TOUCH PCAP A 10 TOCCHI
Il iiyama ProLite TF2438MSC-B2 è un monitor touchscreen Open Frame da 23,8 pollici Full HD progettato per integrazioni professionali in ambienti retail, industriali e sistemi self-service. Grazie alla tecnologia DeepContrast PCAP+ a 10 tocchi con optical bonding, offre un’interazione estremamente fluida, riducendo riflessi e migliorando la leggibilità. Il pannello IPS a 120Hz assicura colori vividi e ampi angoli di visione, mentre il vetro frontale 7H antigraffio, il rivestimento anti-impronta e la robusta struttura in metallo garantiscono massima resistenza e durata. La protezione IPX1, le connessioni HDMI, DisplayPort, USB Hub 3.2 e il supporto per installazioni landscape, portrait e face-up completano una soluzione affidabile e versatile.
Caratteristiche principali:
- Display IPS Full HD da 23,8" a 120Hz con risoluzione 1920x1080, luminosità fino a 600 cd/m² e immagini sempre nitide e dettagliate
- Tecnologia DeepContrast PCAP+ a 10 punti di contatto con optical bonding per un'esperienza touch precisa, veloce e con riflessi ridotti
- Vetro frontale con durezza 7H resistente ai graffi e progettato per un utilizzo intensivo in ambienti professionali
- Rivestimento anti-impronta che mantiene lo schermo pulito e professionale anche in caso di utilizzo frequente
- Pannello IPS con angoli di visione 178°/178° per colori uniformi e visibilità ottimale da qualsiasi posizione
- Struttura in metallo rinforzato progettata per garantire affidabilità e lunga durata nelle applicazioni più impegnative
- Protezione frontale IPX1 contro umidità e gocciolamenti per una maggiore sicurezza operativa
- Connettività completa con HDMI, DisplayPort, USB Hub 3.2, altoparlanti integrati e supporto per installazione landscape, portrait e face-up
Ulteriori dettagli
La tecnologia DeepContrast PCAP+ a 10 tocchi con optical bonding offre un utilizzo fluido e preciso, riducendo i riflessi e proteggendo il display da umidità e condensa.
Il vetro frontale 7H antigraffio è progettato per l’uso quotidiano intensivo, mentre il rivestimento anti-impronta mantiene lo schermo pulito e professionale.
Il pannello IPS Full HD garantisce colori uniformi, dettagli nitidi e visibilità ottimale da ogni posizione, ideale per retail e ambienti commerciali dinamici.
La struttura in metallo rinforzato e il vetro frontale temprato assicurano resistenza, affidabilità e lunga durata anche in ambienti professionali impegnativi.
Scheda tecnica
| Model | TF2438MSC-B2 |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass, Open Frame |
| Diagonal | 23.8", 60.5cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @120Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel Brightness | 600 cd/m² |
| Brightness | 525 cd/m² with touch |
| Light transmittance | 87% |
| Static contrast | 1300:1 with touch |
| Response time (BTB) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Supporta colore | 16.7mln 8bit |
| Horizontal Sync | 30 - 138kHz |
| Viewable area W x H | 527 x 296.5mm, 20.7 x 11.7" |
| Bezel width (sides, top, bottom) | 17.25mm, 20.3mm, 20.3mm |
| Pixel pitch | 0.275mm |
| Bezel colour and finish | black, matte |
| TOUCH | |
| Touch technology | DeepContrast-PCAP+ |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES / CONNECTORS / CONTROLS | |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 Speakers 2 x 2W |
| HDCP | yes |
| USB HUB | x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA)) |
| FEATURES | |
| Extra | DeepContrast PCAP+, metal housing, anti fingerprint coating, waterproof Touch function |
| Kiosk mode | yes |
| Glass thickness | 3.6mm |
| Glass hardness | 7H |
| 60950 Ball drop test | Yes |
| Water and dust protection | IP1X (front) |
| Housing (bezel) | metal |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons | Menu, scroll up / ECO, scroll down / volume, select / input, power |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Blue light reducer | yes |
| Flicker free | yes |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait, face-up |
| Fanless design | yes |
| VESA mounting | 100 x 100mm |
| Cable management system | yes |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Guides | quick start guide, safety guide |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 22W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead, |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 562 x 367 x 47.5mm |
| Box dimensions W x H x D | 635 x 409 x 115mm |
| Weight (without box) | 6.5kg |
| Weight (with box) | 8.2Kg |
