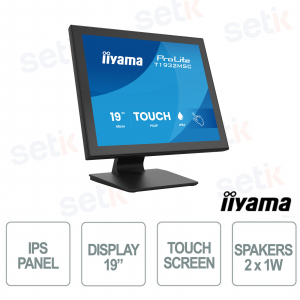

Il iiyama ProLite T1932MSC-B2S è un monitor touchscreen da 19" con tecnologia capacitiva proiettata PCAP a 10 punti, ideale per retail, ristorazione e applicazioni professionali. Il design edge-to-edge in vetro assicura elevata resistenza ai graffi, ottima trasmissione della luce e immagini nitide con risoluzione 1280 × 1024. La protezione frontale IP54 aiuta a resistere a polvere e spruzzi d’acqua, mentre il touch supporta dito, guanto in lattice e pennino. Completano la dotazione le connessioni HDMI, DisplayPort, VGA e USB Touch, gli altoparlanti integrati 2 × 1 W, il supporto ergonomico regolabile e il montaggio VESA 100 × 100 mm.
T1932MSC-B2S – MONITOR IPS 19" IIYAMA PROLITE - TOUCHSCREEN
Il iiyama ProLite T1932MSC-B2S è un monitor touchscreen da 19" con tecnologia PCAP capacitiva proiettata a 10 punti, ideale per retail, ristorazione e applicazioni professionali. Il vetro edge-to-edge garantisce elevata resistenza ai graffi, ottima trasmissione della luce e immagini nitide con risoluzione 1280 × 1024. La protezione frontale IP54 assicura maggiore affidabilità contro polvere e spruzzi d’acqua, mentre il touch può essere utilizzato con dito, guanto in lattice o pennino. Le connessioni HDMI, DisplayPort, VGA e USB Touch, gli altoparlanti 2 × 1 W, il supporto ergonomico regolabile e la predisposizione VESA 100 × 100 mm completano una soluzione versatile e professionale.
Caratteristiche principali:
- Display: 19", 1280 × 1024
- Touch: PCAP 10 punti
- Protezione: IP54 frontale
- Ingressi: HDMI, DP, VGA
- Audio: 2 × 1 W
- Montaggio: VESA 100 × 100 mm
Ulteriori dettagli
Scheda tecnica
| Model | T1932MSC-B2S |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 19", 48cm |
| Panel | IPS |
| Native resolution | 1280 x 1024 (1.3 megapixel) |
| Aspect ratio | 5:4 |
| Panel Brightness | 250 cd/m² |
| Brightness | 225 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 with touch |
| Response time (BTB) | 14ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln |
| Horizontal Sync | 31 - 80kHz |
| Viewable area W x H | 375 x 300mm, 14.7 x 11.8" |
| Pixel pitch | 0.293mm |
| Colour | matte, black |
| TOUCH | |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input |
VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio input | Mini jack x1 |
| Audio output | Speakers 2 x 1W |
| HDCP | Yes |
| FEATURES | |
| Water and dust protection | IP54 (front) |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP, TW |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| User controls | Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, factory) |
| Convenience | Kensington-lock™ prepared |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, face-up |
| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
| Cable management system | Yes |
| MTBF | 50000 hours |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.8m), HDMI (1.8m), Audio (1.8m), DP (1.8m) |
| Guides | quick start guide, safety guide |
| Other | Touch Panel Driver Disk (CD-ROM) |
| Cable cover | yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 2490, 50/60Hz |
| Power Usage | 20W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead, Lead monoxide (lead oxide) |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 432 x 413.5 x 239.5mm |
| Box dimensions W x H x D | 530 x 495 x 190mm |
| Weight (without box) | 5.4kg |
| Weight (with box) | 7.4kg |
