Il HS4408-4ET-96 di Dahua, è uno switch 8 porte Hardened di rete 4 Porte PoE + 4 SFP con trasmissioni veloci fino a 1000 Mbps. alimentazione IEEE 802.3af e IEEE 802.3at. La porta rossa è conforme allo standard Hi-PoE/IEEE 802.3bt, quella arancione allo standard Hi-PoE. Watchdog PoE.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

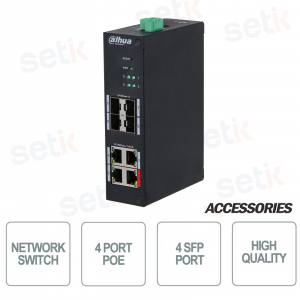

SWITCH DI RETE 8 PORTE HARDENED - 4 PORTE POE + 4 PORTE SFP 1000 Mb/s - DAHUA

4 Porte PoE + 4 Porte SFP (1 x RJ45 10/100/1000 Base-T + High PoE / PoE (802.3af/at) 4 x RJ45 10/100 Base-T + PoE (802.3af/at) 4 x porta SFP 1000 Base-X)
Standard supportati IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Dettagli prodotto
- Switch di rete PoE - Dahua
- 4 Porte PoE + 4 Porte SFP 1000 Mb/s
- PoE protocollo: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- ≤96W Consumo totale Alimentazione PoE
- Standard supportati: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az
- MAC auto study e aging, Capacità lista MAC address 8K
- Disegnato per resistere alle alte temperature
- Dimensioni: 152.9 mm × 110.4 mm × 42.0 mm
Scheda tecnica
| Model | HS4408-4ET-96 | ||
| Hardware | |||
| Included Power Adapter |
Yes |
||
| PoE |
Yes |
||
| Ethernet Port | 4 | ||
| Ethernet Port Speed | 10/100 Mbps | ||
| Optical Port Speed | 1000 Mbps | ||
| Optical Port Uplink Speed | 1 Gbps | ||
| Description of Function Slots | Port1-4:4×RJ45 10/100Mbps(PoE); Port5-8:4×SFP 1000Mbps(Uplink) | ||
| Reset Button | 1 | ||
| Power Supply |
External power supply: 48–57 VDC |
||
| Operating Temperature |
–30 °C to +65 °C (+22 °F to +149 °F) |
||
| Operating Humidity |
10%–95% (RH), non-condensing |
||
| Storage Temperature |
–40 °C to +75 °C (–40 °F to +167 °F) |
||
| Storage Humidity |
5%–95% (RH), non-condensing |
||
| Power Consumption |
Idling: ≤6 W Full load: 60 W |
||
|
Performance |
|||
| Layer | Layer 2 | ||
| Management Type | Yes | ||
| Switching Capacity | 8.8 Gbps | ||
| Packet Forwarding Rate | 6.5472 Mpps | ||
| Packet Buffer Size | 4.1 Mbit | ||
| MAC Table Size | 8K | ||
| VLAN Number | 4094 | ||
| VLAN Interface | 10 | ||
| IPv4 Routes | 1 | ||
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az | ||
|
Feature |
|||
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt | ||
| PoE Power | port1<=90W,port2-4<=30W,total<=96W | ||
| PoE Power Consumption Management | Yes | ||
| PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) | ||
| Long Distance PoE Transmission | Yes | ||
| Spanning Tree Protocol | STP/RSTP/ERPS | ||
| VLAN Function | Yes | ||
| Link Aggregation | Yes | ||
| IEEE 802.3x Flow Control | Yes | ||
| Multicast | IGMP snooping | ||
| DHCP Function | DHCP client | ||
| Security | IEEE 802.1x | ||
| Equipment Management | SNMPv1/v2/v3 | ||
|
General |
|||
| Statics Protection | Air discharge: 8 kV, Contact discharge: 6 kV | ||
| Lighting Protection | Common mode: 4 kV Differential mode: 2 kV | ||
| Product Dimensions | 152.9 mm × 110.4 mm × 42.0 mm (6.02" × 4.35" × 1.65") (L × W × H) | ||
| Packaging Dimensions | 254.0 mm × 243.0 mm ×86.0 mm (10.00" × 9.57" × 3.39") (L × W × H) | ||
| Casing Material | Iron | ||
| Installation | Desktop mount; DIN-Rail mount | ||
