Il HS4210-8GT-90 di Dahua, è uno switch 10 porte Hardened di rete 8 Porte PoE + 2 SFP con trasmissioni veloci fino a 1000 Mbps. Alimentazione IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. Standard di comunicazione IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab. Watchdog PoE, trasmissioni fino a 250 metri-MAC Table Size 8K, PoE power on/off, Supports Intelligent PoE.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

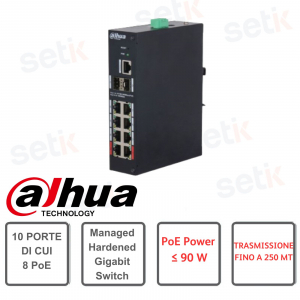

SWITCH DI RETE 10 PORTE HARDENED - 8 PORTE POE + 2 PORTE SFP 1000 Mb/s - DAHUA

Dettagli prodotto

- Switch di rete PoE - Dahua
- 8 Porte PoE + 2 Porte SFP 1000 Mb/s
- PoE protocollo: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- 90W PoE Power
- Standard supportati: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
- Capacità lista MAC address 8K
- Disegnato per resistere alle alte temperature
- Dimensioni: 311.5 mm × 251.5 mm × 128.5 mm
Scheda tecnica
| Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Capacity | 20 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Forwarding Rate | 14.88 Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description of Function Slots | Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power | Port 1-2 ≤ 90 W, Port 3-8 ≤ 30 W, total ≤ 90 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Layer | Layer 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Type | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30 °C to +65 °C (-22 °F to +149 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Idling: ≤5 W ; Full load: 96 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | External power supply: 53 VDC, 1.81 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 0.63 kg (1.39 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 162 mm × 123.5 mm × 42 mm (6.38" × 4.86" × 1.65") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Included Power Adapter | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port Speed | 10/100/1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port Uplink Speed | 1 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Debugging | 1 × Console port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reset Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | 5%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Managed Switch | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Buffer Size | 4 Mbit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Jumbo Frame | 15K Byte | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table Size | 8K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Number | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Feature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power Consumption Management | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Long Distance PoE Transmission | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spanning Tree Protocol | STP/RSTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Function | Port-based VLAN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IEEE 802.3x Flow Control | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DHCP Function | DHCP Client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| QoS/ACL | Qos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Equipment Management | Web management | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 1.40 kg (3.08 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 311.5 mm × 251.5 mm × 128.5 mm (12.26" × 9.90" × 5.06") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing Material | Sheet metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Desktop mount; DIN-Rail mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
