Il HS4412-8ET-96 di Dahua, è uno switch 12 porte Hardened di rete 8 Porte PoE + 4 SFP 1000 Mbps. Alimentazione IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. Standard di comunicazione IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab. Watchdog PoE, trasmissioni fino a 250 metri-MAC Table Size 8K, PoE power on/off, Supports Intelligent PoE.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

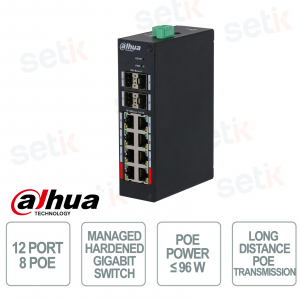

SWITCH DI RETE 12 PORTE HARDENED - 8 PORTE POE + 4 PORTE SFP 1000 Mbps - DAHUA

Dettagli prodotto
- Switch di rete PoE - Dahua
- 8 Porte PoE + 4 SFP 1000 Mbps
- PoE protocollo: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- 96W PoE Power
- Standard supportati: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
- Capacità lista MAC address 8K
- Disegnato per resistere alle alte temperature
- Dimensioni: 152.9 mm × 110.4 mm × 42.0 mm
Scheda tecnica
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Included Power Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port Speed |
10/100 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Speed |
1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Uplink Speed |
1 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port1-8:8×RJ45 10/100Mbps(PoE); Port9-12:4×SFP 1000Mbps(Uplink) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reset Button |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
External power supply: 48–57 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–30 °C to +65 °C (+22 °F to +149 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +75 °C (–40 °F to +167 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Idling: ≤6 W Full load: 120 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Type |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
9.6 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
7.1424 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
4.1 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
8K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Number |
4094 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Interface |
10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IPv4 Routes |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Standard |
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Feature |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Protocol |
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Power |
port1-2<=90W,port3-8<=30W,total<=96W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Power Consumption Management |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Pin Assignment |
1,2,4,5 (V+),3,6,7,8 (V-) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Long Distance PoE Transmission |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Spanning Tree Protocol |
STP/RSTP/ERPS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Function |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Link Aggregation |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IEEE 802.3x Flow Control |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multicast |
IGMP snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHCP Function |
DHCP Client |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security |
IEEE 802.1x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Equipment Management |
SNMPv1/v2/v3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Statics Protection |
Air discharge: 8 kV, Contact discharge: 6 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 4 kV Differential mode: 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
152.9 mm × 110.4 mm × 42.0 mm (6.02" × 4.35" × 1.65") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
254.0 mm × 243.0 mm ×86.0 mm (10.00" × 9.57" × 3.39") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Material |
Iron |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mount; DIN-Rail mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
