Il HS4420-16GT-190 di Dahua, è uno switch 20 porte Hardened di rete 16 Porte PoE + 4 SFP 1000 Mbps. Alimentazione IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt. Standard di comunicazione IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab. Trasmissioni fino a 250 metri-MAC Table Size 8K, PoE power on/off, Supports Intelligent PoE.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

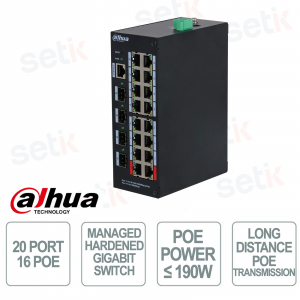

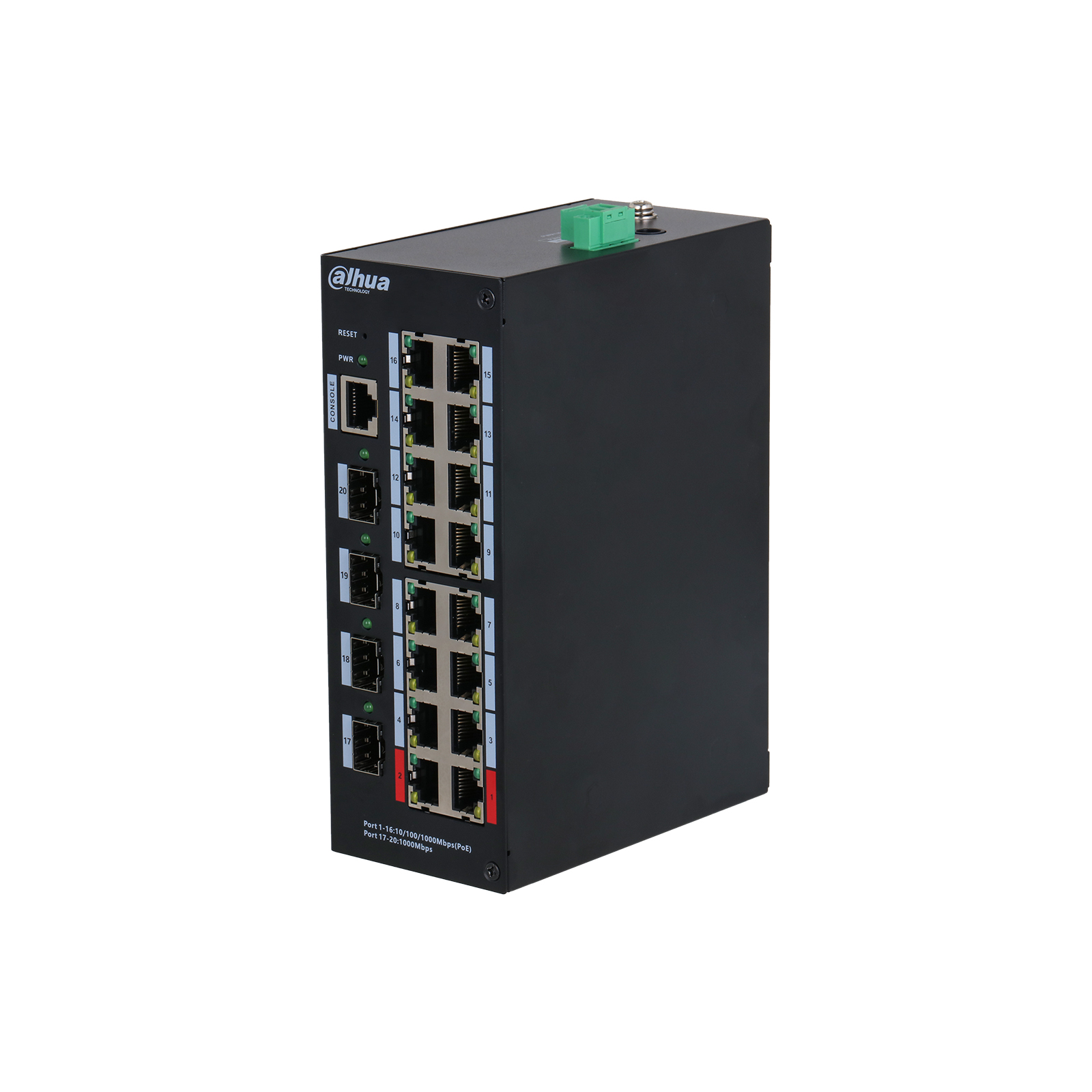

SWITCH DI RETE 20 PORTE HARDENED - 16 PORTE POE + 4 PORTE SFP 1000 Mbps - DAHUA

Dettagli prodotto
- Switch di rete PoE - Dahua
- 16 Porte PoE + 4 SFP 1000 Mbps
- PoE protocollo: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
- 190W PoE Power
- Standard supportati: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
- Capacità lista MAC address 8K
- Disegnato per resistere alle alte temperature
- Dimensioni: 171 mm × 123.4 mm × 64.8 mm
Scheda tecnica
| Basic | |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| Description of Function Slots | Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE) Port 17-20: 4 × SFP 1000 Mbps (uplink) |
| PoE Power | Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 190 W |
| Layer | Layer 2 |
| Management Type | Yes |
| Operating Temperature | –30 °C to +65 °C (-22 °F to +149 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤5 W ; Full load: 212 W |
| Power Supply | External power supply: 53 VDC, 3.77 A |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 0.99 kg (2.18 lb) |
| Product Dimensions | 171 mm × 123.4 mm × 64.8 mm (6.73" × 4.86" × 2.55") (L × W × H) |
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 16 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Reset Button | 1 |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Performance | |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE Transmission | Yes |
| Spanning Tree Protocol | STP/RSTP |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web management |
| General | |
| Gross Weight | 2.1 kg (4.62 lb) |
| Packaging Dimensions | 311.5 mm × 251.5 mm × 128.5 mm (12.26" × 9.90" × 5.06") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; DIN-Rail mount |
