Il IS4210-8GT-120 di Dahua, è uno switch di rete 10 porte, con 8 porte RJ45 PoE Watchdog 10/100/1000 Mbps + 2 Porte Fibra SFP 1000 Mbps - Ideale per impianti all'interno di edifici industriali, anche in presenza di condizioni ambientali avverse (–40 °C to +75 °C) - Tasto di reset - 1x Console Port per il debugging - Per montaggio a desktop o DIN-Rail - protezione dai fulmini 6kV.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

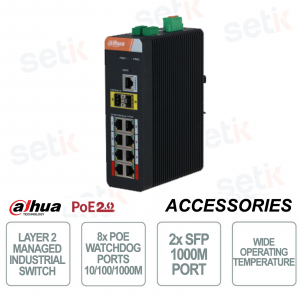

SWITCH DI RETE INDUSTRIALE GESTITO - LAYER 2 - 10 PORTE TOTALI - 8 PORTE POE WATCHDOG + 2 PORTE SFP + 1 PORTA CONSOLE - DAHUA - IS4210-8GT-120

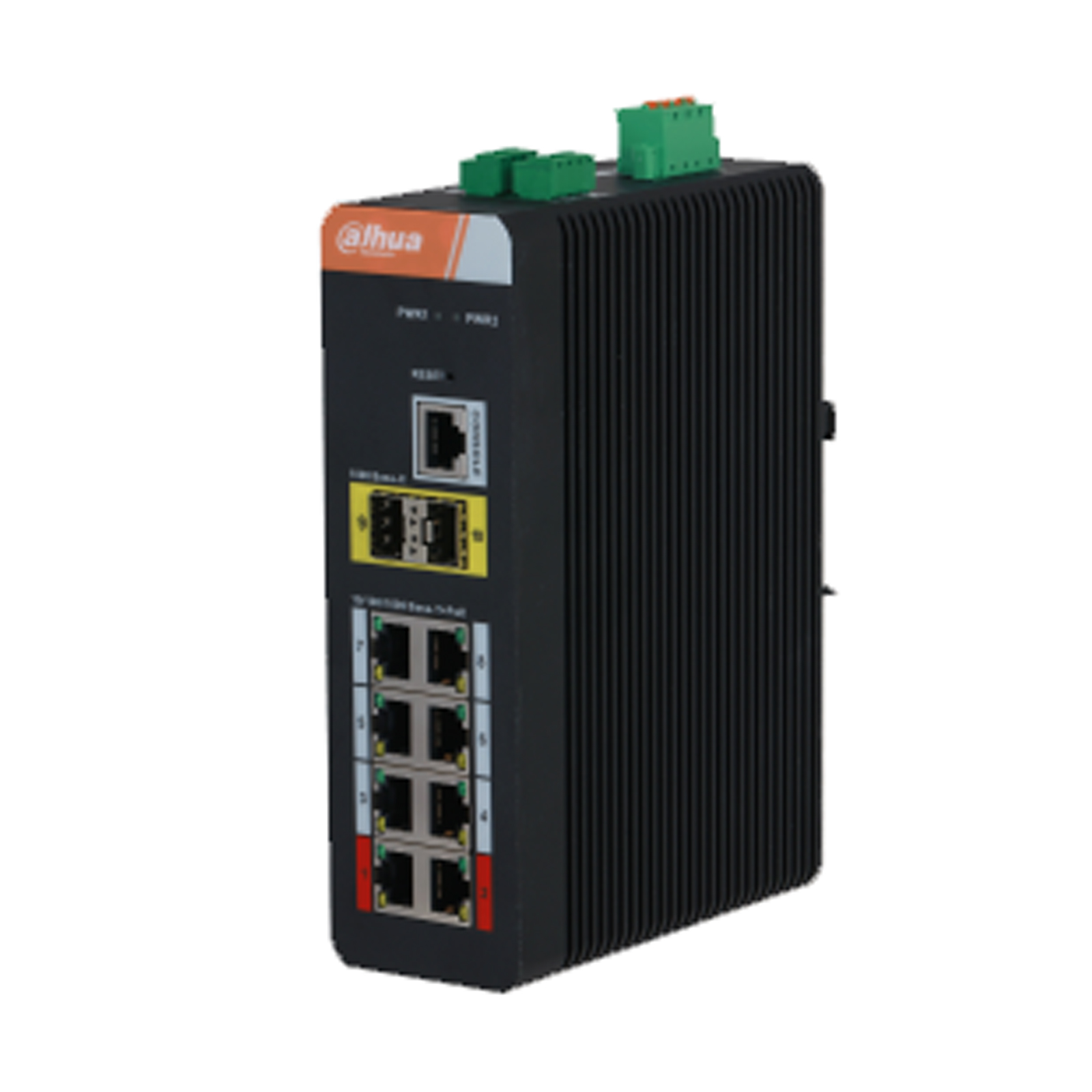

Switch industriale PoE Watchdog - Dahua - IS4210-8GT-120
Layer 2 - gestionabile - 10 Porte: 8 porte RJ45 PoE Watchdog 10/100/1000Mbps + 2 Porte Fibra SFP 1000Mbps + 1 Porta Console -Trasmissioni fino a 250m - Ampia temperatura di funzionamento (–40 °C to +75 °C) - Tasto di reset - 1x Console Port (per il debugging) - Red Port 120W - MAC size 8K - Capacità totale di switching 20Gbps - Packet Buffer Size 4.1Mbit - Protezione 6kV dai fulmini.
Dettagli prodotto
- Switch di rete PoE Watchdog - Dahua - IS4210-8GT-120
- Layer2, gestito
- 10 porte totali
- 8 porte PoE RJ45 Watchdog 10/100/1000Mbps
- 2 porte SFP ottiche 1000Mbps
- Trasmissione dati fino a 250m (10Mbits)
- All-Gigabit ports Design
- MAC Table Size 8K
- Capacità di switching 20Gbps
- Packet Buffer Size 4.1Mbits
- Tasto di reset
- 1x Console Port (per debugging)
- Red Port 120W
- Standard Supoortati: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad
- Standard PoE supportati: IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt
- Dettaglio Power PoE:
Port 1-2 ≤90 W
Port 3-8 ≤30 W
Full load ≤120W - Protezione dai fulmini: Common 6kV - Differenziale 4kV
- Ampia temperatura di funzionamento: –40 °C to +75 °C
- Ideale per impianti all'interno di edifici industriali, anche in presenza di condizioni ambientali avverse

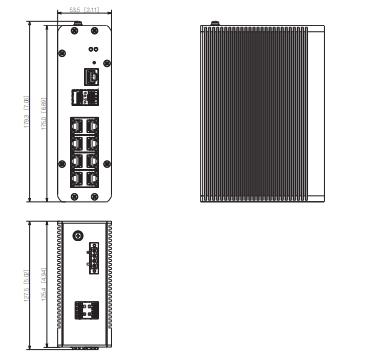

- Dimensioni: 125 mm × 53.5mm × 175.0 mm
- Peso netto dell'articolo: 1.25 kg
- Per l'installazione a scrivania o in modalità DIN-Rail
- Trasmissioni veloci a tassi di 10 / 100 / 1000 Mbps
- Indirizzi MAC 4K
Scheda tecnica
| Model | IS4210-8GT-120 |
| Hardware | |
| Included Power Adapter | No |
| PoE | Yes |
| Ethernet Port | 8 |
| Optical Port | 2 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Speed | 1000 Mbps |
| Description of Function Slots | Port 1-8: 8 × RJ45 10/100/1000 Mbps Port 9-10: 2 ×SFP 1000 Mbps |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Power Supply Mode | 53 VDC |
| Operating Temperature | –40 °C to +75°C (–40 °F to +167 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤ 6 W Full load: 120 W |
| Performance | |
| Layer | L2 |
| Management Type | Yes |
| MTBF | 1198177.29 hours |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Size | 4.1 Mbit |
| Jumbo Frame | 10K Byte |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad |
| MAC Table Size | 8K |
| VLAN Number | 4K |
| VLAN Interface | 10 |
| Dynamic ARP | 512 |
| PoE | |
| PoE Protocol | IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt |
| PoE Power | Port 1-2 ≤90 W Port 3-8 ≤30 W Full load ≤120W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE Transmission | Yes |
| Jumbo Frame | 9,000 bytes |
| Spanning Tree Protocol | STP; RSTP; ERPS |
| VLAN Function | Yes |
| Link Aggregation | Static link aggregation; LACP |
| IEEE 802.3x Flow Control | IEEE 802.3X-based flow control (full-duplex) |
| Multicast | IGMP Snooping |
| DHCP Function | DHCP client |
| Security | IEEE 802.1x ERPS |
| Equipment Management | WEB (http and https) SNMP V1/V2C/V3 |
| General | |
| Statics Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lighting Protection | Common mode: 6 kV Differential mode: 4 kV |
| Net Weight | 1.25 kg (2.76 lb) |
| Gross Weight | 1.52 kg (3.35 lb) |
| Product Dimensions | 125 mm × 53.5mm × 175.0 mm (4.92" × 2.11" × 6.89") (L × W × H) |
| Packing Dimensions | 254 mm × 287 mm × 101 mm (10.00" × 11.30" × 3.98")(L × W × H) |
| Certifications | CE, FCC |
