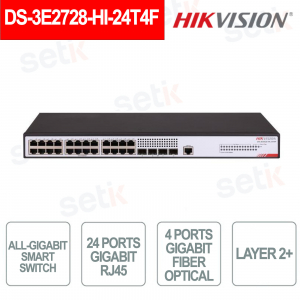

Switch di rete - 24 porte Gigabit RJ45 - 4 porte fibra ottica Gigabit - Hikvision

Switch di rete - 24 porte Gigabit RJ45 - 4 porte fibra ottica Gigabit - Hikvision

 
NOVITÀ -35%

Il DS-3E2728-HI-24T4F di Hikvision, è uno switch di rete Layer 2+ - Gestionabile - 24 porte Gigabit RJ45 - 4 porte fibra ottica Gigabit - Capacità di commutazione 56Gbps - Packet Forward Rate 56Mbps - Dimensioni: 440×160×43.6mm.

Riferimento: DS-3E2728-HI-24T4F

Marca: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Targa HikvisionDall’anno della sua nascita il prestigio cresce sempre più tanto da affermarsi nel 2015 come prima realtà globale nella sicurezza. Dal 2016 Hikvision espande il suo mercato diventando Total Solution Provider per l'intero mercato della sicurezza. Entra così nel mondo dell’antintrusione e successivamente si avvicina alle nuove tecnologie e all’intelligenza a servizio dell'uomo trattando sistemi IoT, Machine Vision, Robotica e Automotive. Da leader della security, Hikvision diventa con impegno, passione e competenza un'azienda Hi-Tech con una vision 4.0, che punta sempre in alto.

Setik è quindi onorata di essere distributore Hikvision. Proporremo, come sempre, prodotti di ultima generazione e l'adeguata assistenza tecnica e commerciale.

Classifica aggiornata dei Top Security Brand > Visualizza la classifica


[short_description] =>

Videosorveglianza Hikvision


Hikvision nasce nel 2001 con l’obiettivo di creare e sviluppare soluzioni complete di videosorveglianza professionale, diventando in breve tempo leader nel mondo della sicurezza.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Sicurezza e Videosorveglianza Hikvision [meta_keywords] => Sicurezza Hikvision, Hikvision, allarme hikvision [meta_description] => Hikvision nasce nel 2001 diventando in breve tempo leader nel mondo della videosorveglianza. Scopri subito i prodotti a catalogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA

FUORI TUTTO ×

  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>


SWITCH DI RETE - 24 PORTE GIGABIT RJ45 4 PORTE FIBRA OTTICA GIGABIT - LAYER 2+ - HIKVISION - DS-3E2728-HI-24T4F

Hikvision
Switch ethernet - Hikvision - DS-3E2728-HI-24T4F
24 porte Gigabit RJ45 + 4 porte fibra ottica Gigabit - Capacità complessiva di switching 56Gbps - Packet Forwarding Rate: 41.66 Mbps - IEEE 802.3ad and static port aggregation - Dimensioni: 440×160×43.60 mm - Peso netto inferiore a 2.10Kg.

Dettagli prodotto

DS-3E2728-HI-24T4F
  • Switch di rete - HIKVISION - DS-3E2728-HI-24T4F
  • Gestionabile
  • Layer 2+
  • 24 × porte Gigabit RJ45
  • 4 × porte ottiche in fibra Gigabit
  • Capacità di switching: 56 Gbps
  • Tasso di inoltro 41.66 Mbps
  • Alimentazione: AC：100 V～240 V AC，50/60 Hz
  • Dimensioni: 440×160×43.6
  • Peso netto dell'articolo: 2.10 kg
  • Temperatura di funzionamento: -5ºC to 45ºC

Scheda tecnica

DS-3E2728-HI-24T4F
General
Shell Metal
Net Weight 2.10 kg (4.63 lb)
Gross Weight 2.90 kg (6.39 lb)
Dimensions (W × H × D) 440.00 mm × 160.00 mm × 43.60 mm (17.32'' × 6.29'' × 1.71'')
Operating Temperature -5 °C to 45 °C (23 °F to 113 °F)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity 10% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply AC：100 V～240 V AC，50/60 Hz
Installation Mode Rack (equipped with mounting ears)
Max. Power Consumption 21 W
Power Consumption in Idle 14 W
Surge Protection 6 kV
Network Parameters
Porti 24 × Gigabit RJ45 port,4 × Gigabit fiber optical port
MAC Address Table 16 K
Internal Cache 1.5 Mbits
Switching Capacity Whole-Device Performance: 56 Gbps
Port Performance: 56 Gbps
Packet Forwarding Rate Whole-Device Performance: 41.66 Mpps
Port Performance: 41.66 Mpps
Software Function
Ethernet LLDP
Static MAC configuration
Limit of number of MAC addresses to be learned (up to 16K)
Port mirroring and traffic mirroring
Port aggregation (up to 24 groups and 8 ports for each group)
Port isolation
STP/RSTP/MSTP
IEEE 802.3ad (dynamic link aggregation) and static port aggregation
RRPP/ERPS (Ethernet Ring Protection Switching)
VRRP
VLAN 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP
IP Routing Static routing
RIP/OSPF
DHCP DHCP Client
DHCP Snooping
DHCP Relay
Multicast IGMP V1/V2/V3 snooping
PIM Snooping
Multicast VLAN
IPv6 multicast setting
QoS SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
ACL ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL
Security Hierarchical user management and password protection
SSH for a secure encrypted channel for user login
Specific IP address based FTP logging and password mechanism
Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown
unicast packet, TTL=1 packet, and protocol packet
MAC address limit
IP+MAC+PORT binding
IEEE 802.1x
Radius and AAA
SNMPv3
Broadcast suppression
System Management Command line configuration via console/AUX Modem/Telnet/SSH
Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files
SNMP V1/V2c/V3
sFlow
NQA
NTP clock
System operating logs
IPv6 IPv6 static routing and dual-stack
DHCPv6 Client and DHCPv6 Snooping
ND and PMTU
IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
Reliability Hot patch, in-service patch upgrade
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3.
Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
Approval
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:
2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Ulteriori dettagli

DS-3E2728-HI-24T4X application
DS-3E2728-HI-24T4X dimensioni
