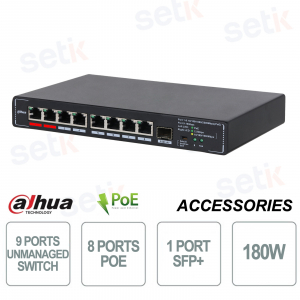

Switch Unmanaged Desktop - 9 porte - 8 PoE + 1 SFP+ 10 Gbps - Dahua

Switch Unmanaged Desktop - 9 porte - 8 PoE + 1 SFP+ 10 Gbps - Dahua

 
-57%

Il SMG1009XP di Dahua, è uno switch di rete PoE Unmanaged con 9 porte: Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps (PoE) - Port 9: 1 × SFP 1/10 Gbps - MAC Table Size 4K - Packet Buffer 8Mbit - Switching Capacity 60Gbps - Capacità potenza switch 180W - Dimensioni 220x141x30 mm.

Riferimento: SMG1009XP

Marca: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Catalogo Dahua su Setik: Soluzioni AI per la Sicurezza

Dahua offre sistemi avanzati di videosorveglianza intelligente con tecnologie AI per rilevamento persone e veicoli, deterrenza attiva e gestione multi-impianto.


Prodotti Dahua disponibili

  • Telecamere IP Dahua AI
  • Videoregistratori NVR Dahua
  • Kit videosorveglianza completi
  • Telecamere ANPR lettura targhe
  • Allarmi wireless e videocitofonia

Soluzioni ideali per abitazioni evolute, aziende, negozi e infrastrutture pubbliche, con compatibilità ONVIF e supporto tecnico professionale.

[short_description] =>

Videosorveglianza Dahua


Dahua Telecamere IP, NVR e Videosorveglianza Professionale

Dahua è un riferimento nella sicurezza professionale. Su Setik trovi un catalogo completo di telecamere Dahua, NVR AI, kit di videosorveglianza e soluzioni ANPR per installatori e aziende.

Prodotti originali con garanzia italiana (24 mesi), supporto tecnico dedicato e spedizione rapida.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Dahua Telecamere IP, NVR e Kit Videosorveglianza | Catalogo Setik [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Acquista Dahua su Setik: telecamere Dahua IP AI, NVR, kit videosorveglianza e software DSS per installatori e aziende. Prodotti originali con garanzia italiana 24 mesi e supporto tecnico dedicato. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA

SWITCH DI RETE POE DA 9 PORTE PoE -  DAHUA - SMG1009XP

Dahua Technology
Switch di rete con 9 porte - Dahua - SMG1009XP
8 × RJ-45 10/100/1000/2500 Mbps (PoE) - Port 9: 1 × SFP 1/10 Gbps - Unmanaged MAC Table Size 4K - Packet Buffer 8Mbit - Switching Capacity 60Gbps - Capacità potenza switch 180W - Dimensioni 220x141x30 mm.

Dettagli prodotto
SMG1009XP
  • Switch di rete - Dahua - SMG1009XP
  • 9 Porte 8 × RJ-45 10/100/1000/2500 Mbps (PoE) - 1 × SFP 1/10 Gbps
  • Unmanaged
  • Packet Buffer size 8 Mbits
  • MAC Table SIze 4K
  • Capacità di switching 60Gbps
  • Potenza PoE 180W
  • Dimensioni: 220 mm × 141 mm × 30 mm
  • Peso netto del prodotto: 0.73 kg
  • Temperatura di funzionamento supportata: –10 °C to +55 °C

Scheda tecnica

Basic

Layer

Unmanaged

Switching Capacity

60 Gbps

Packet Forwarding Rate

44.64 Mpps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps (PoE)
Port 9: 1 × SFP 1/10 Gbps

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling load: 23.8 W
Full load:≤ 100 W

Power Supply

External power supply: 53 VDC, max 3.77 A

Power Consumption

Idling: 10.48 W
Full load: 180 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.73 kg (1.61 lb)

Gross Weight

1.796 kg (3.95 lb)

Product Dimensions

220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × W × H)

Packaging Dimensions

302 mm × 185 mm × 118 mm (11.88" × 7.28" × 4.64") (L × W × H)
Casing Material Metal
Installation Desktop mount; wall mount
Certifications CE
PoE
PoE Yes
PoE Power Port 1-2 ≤ 90 W, Port 3-8 ≤ 30 W, total ≤ 180 W

Hardware

DIP Switch

Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-8, but allows ports 1-8 to send its traffic to the uplink
ports 9. These uplink ports can also send their traffic to 1-8.
EEE: Energy Efficient Ethernet (EEE) function.

Performance

Packet Buffer Size

8 Mbit

Jumbo Frame

12K Byte

MAC Table Size

4K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae

General

Packing List

1 × User Manual
1 × Legal and Regulatory Information
1 × Power Adapter
1 × Power Cord
1 × Mounting Kit


Ulteriori dettagli

SMG1009XP dimensioni

Download

Depliant
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato compila questo modulo
