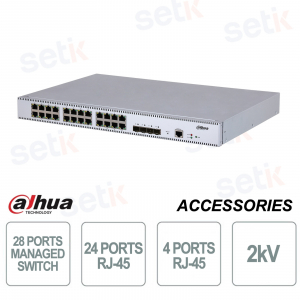

Il SG5028X di Dahua, è uno switch di rete Gestionabile Layer 2+ con 28 porte: Port 1-24: 24 × RJ-45 10/100/1000 Mbps - Port 25-28:4 × SFP+ 1/10 Gbps - MAC Table Size 32K - Packet Buffer 16Mbit - Switching Capacity 128Gbps - 1x Console Port - A prova di fulmini 2kV - Per estendere la rete aziendale
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
SWITCH DI RETE POE DA 28 PORTE + THUNDERPROOF 2KV - DAHUA - SG5028X

- 24 × RJ-45 10/100/1000 Mbps - 4 × SFP+ 1/10 Gbps - Layer2- Gestionabile MAC Table Size 32K - Packet Buffer 16Mbit - Switching Capacity 128Gbps - 1x Console Port -Protezione dai fulmini 2kV - Per estendere la rete aziendale - Dimensioni 440 mm × 308.3 mm × 44.0 mm
- Switch di rete - Dahua - SG5028X
- 28 Porte 24 × RJ-45 10/100/1000 Mbps - 4 × SFP+ 1/10 Gbps
- Layer 2+
- Gestionabile
- 1x Console Port
- Packet Buffer size 16Mbits
- MAC Table SIze 32K
- Capacità di switching 128Gbps
- Consumi: Idling: 13W Full load: 48W
- Protezione dai fulmini: 4kV Common / 2kV differenziale
- Dimensioni: 440 mm ×308.3 mm×44.0 mm
- Peso netto del prodotto: 3.3 kg
- Temperatura di funzionamento supportata: -20°C to 55°C
Scheda tecnica
| Model | SG5028X |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.232 Mpps |
| Description of Function Slots | Port 1-24: 24 × RJ-45 10/100/1000 Mbps Port 25-28: 4 × SFP+ 1/10 Gbps |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | 2 built-in power supplies: 100–240 VAC, 50/60 Hz, 0.8 A |
| Power Consumption | Idling: ≤13 W ; Full load: 48 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 3.3 kg (7.28 lb) |
| Gross Weight | 4.8 kg (10.58 lb) |
| Product Dimensions | 440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H) |
| Packaging Dimensions | 528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H) |
| Casing Material | Metal |
| Installation | Rack mount; desktop mount |
| Hardware | |
| Ethernet Port | 24 |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Performance | |
| Packet Buffer Memory | 16 Mbit |
| Jumbo Frame | 12288 Byte |
| MAC Table Size | 32K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad |
| VLAN Number | 4094 |
| VLAN Interface | 10 |
| Feature | |
| Ethernet Loop Protection | STP/RSTP/ERPS |
| VLAN Function | Port-based VLAN |
| Link Aggregation | LACP Static link aggregation Dynamic link aggregation |
| Port Feature | IEEE 802.3x flow control Unknown unicast suppression Multicast storm control Broadcast storm control |
| IEEE 802.3x Flow Control | Yes |
| Multicast | IGMP Snooping |
| Routing | Static routing |
| DHCP Function | DHCP Client |
| Security | 802.1X Port isolation Radius HTTPS |
| QoS/ACL | SP/WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
| Equipment Management | Cloud management; Web SNMP V1/V2C/V3 NTP Logs Ping |
| General | |
| Packing List | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Warranty Card 1 × List of Hazardous Substances; 1 × Power Cord; 1 × Rack-mounting Kit |
Ulteriori dettagli
