EAP673-Extender | AX5400 ACCESS POINT DUAL-BAND Wi-Fi 6 - TPLINK OMADA

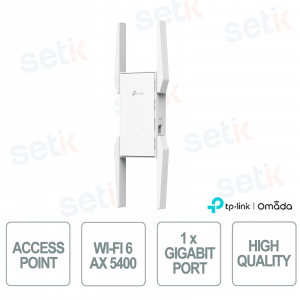

II TP-Link EAP673-Extender è un Wi-Fi 6 AX5400 Wall Plate Extender progettato per eliminare le zone d’ombra e offrire connettività veloce e stabile in ogni ambiente. Grazie al supporto Omada Mesh e al roaming senza interruzioni, garantisce una rete affidabile per uffici, hotel e spazi professionali, con gestione centralizzata tramite Omada SDN, cloud o app dedicat.
Specifiche principali:
- AX5400 Dual-Band Wi-Fi 6: velocità fino a 5.4 Gbps
- 4 antenne esterne ad alto guadagno per copertura estesa
- Analisi AI persone e veicoli
- Smart Detection (intrusione, attraversamento linea, oggetti abbandonati)
- Audio bidirezionale e microfono integrato
- Protezione IP67 e IK10 antivandalo
Ulteriori dettagli
Scheda tecnica
Model | EAP673-Extender |
CARATTERISTICHE HARDWARE | |
Interfaccia | 1× Gigabit Ethernet Port |
Physical security lock | No |
Tasto | Reset LED |
Alimentazione | 100-240 V ~ 50/60 Hz |
Consumo energetico | 18 W |
Dimensioni ( L x P x A ) | 6.3 × 3.1 × 1.5 in (160 × 80 × 37.8 mm) |
Tipo di antenna | 4× External Antennas 2.4 GHz: 2× 3 dBi 5 GHz: 4× 5 dBi |
Tipo di montaggio | Plug in |
CARATTERISTICHE WIRELESS | |
Coverage | 140㎡(1500 ft²) |
Wireless Client Capacity | 250+** |
Standard wireless | IEEE 802.11ax/ac/n/g/b/a |
Frequenza | 2.4 GHz and 5 GHz |
Signal rate | 5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 574 Mbps |
Funzionalità wireless | 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming § Beamforming Rate Limit Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP |
Sicurezza wireless | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Potenza di trasmissione | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP) FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz) |
GESTIONE | |
Omada App | Yes |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
Avvisi e-mail | Yes |
LED ON/OFF | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c, v3 |
Log di sistema locale e remoto | Yes |
SSH | Yes |
Gestione web-based | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
ALTRO | |
Certificazione | CE, FCC, RoHS |
Contenuto della confezione | AX5400 Mesh WiFi 6 Extender EAP673-Extender Installation Guide |
Ambiente | Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
