TP-Link Omada IES206GPPè uno switch industriale Gigabit a 6 porte, con 1 porta PoE++ fino a 60W, 3 porte PoE+ fino a 30W, 1 slot combo RJ45/SFP e 1 slot SFP dedicato, ideale per alimentare e gestire dispositivi di rete in ambienti complessi. Con una capacità di switching di 12 Gbps, forwarding rate da 8,93 Mpps e funzioni avanzate come VLAN, QoS, IGMP Snooping, Link Aggregation e Spanning Tree, assicura prestazioni affidabili. Grazie al design industriale con scocca in alluminio IP40, protezione da sovratensioni, supporto a temperature da -40°C a +75°C e alimentazione ridondante, garantisce continuità anche in condizioni difficili. La gestione centralizzata tramite Omada SDN, web o app mobile semplifica configurazioni, aggiornamenti e controllo remoto.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

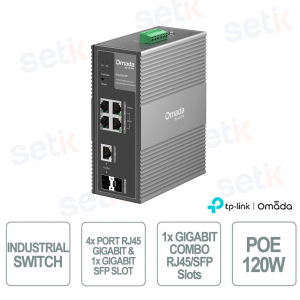

IES206GPP | SWITCH INDUSTRIALE 6 PORTE GIGABIT POE - TPLINK OMADA

Il TP-Link Omada IES206GPP è uno switch industriale Gigabit a 6 porte, progettato per reti professionali che richiedono stabilità, gestione avanzata e resistenza in ambienti estremi. Con supporto PoE++ e PoE+, capacità di switching elevata e gestione centralizzata via Omada SDN, è la soluzione ideale per aziende e infrastrutture critiche.
Specifiche principali:
- 6 porte Gigabit: 1 PoE++ fino a 60W, 3 PoE+ fino a 30W, 1 combo RJ45/SFP e 1 SFP
- Capacità di switching 12 Gbps e packet forwarding rate 8,93 Mpps
- Funzioni software avanzate: VLAN, QoS, IGMP Snooping, Link Aggregation, STP/RSTP, Port Mirroring
- Gestione cloud Omada SDN: configurazione centralizzata, Zero-Touch Provisioning e monitoraggio da app/web
Ulteriori dettagli
Scheda tecnica
Model | IES206GPP |
CARATTERISTICHE HARDWARE | |
Interfaccia | 1× 10/100/1000 Mbps PoE++ RJ45 Ports 3× 10/100/1000 Mbps PoE+ RJ45 Ports 1× Gigabit SFP/RJ45 Combo Slots 1× Gigabit SFP Slot Auto-Negotiation/Auto MDI/MDIX |
Numero ventole | Fanless |
Installation | DIN-rail mounting Wall mounting |
Physical security lock | √ |
Alimentazione | 12-57V 1+1 Redundant DC Power Input |
Porte PoE | Standard: 802.3af/at/bt compliant PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port PoE Budget: 60W (Input: 12V / 7.2A - 21V / 3.7A)) 120W (Input: 21V / 6.7A - 46V / 3.1A) |
Dimensioni ( L x P x A ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
Surge Protection | ±6 kV in common mode for Ethernet ports ±4 kV in common mode for DC power input ports |
PRESTAZIONI | |
Capacità di switching | 12 Gbps |
Packet Forwarding Rate | 8.93 Mpps |
Tabella ARP | 8K |
Buffer (pacchetti) | 4 Mbit |
Jumbo frame | 15 KB |
CARATTERISTICHE SOFTWARE | |
QoS (Quality of Service) | 802.1p DSCP Priority 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rate Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control |
Funzionalità L2 | Link Aggregation Static Link Aggregation Up to 4 aggregation groups and up to 6 ports per group Loopback Detection Flow Control 802.3x Flow Control Mirroring Port Mirroring One-to-One Many-to-One Ingress/Egress/Both Port Statistics Port Mirror Status Traffic Statistics 802.1ab LLDP Spanning Tree STP (802.1d) RSTP (802.1w) |
L2 Multicast | IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave |
VLAN | MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID |
Metodo di trasmissione | Store-And-Forward |
GESTIONE | |
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | Web-based GUI DHCP Client Cable Diagnostics Digital Diagnostic Monitoring (DDM) Automatic Device Discovery† Batch Configuration Batch Firmware Upgrading Unified Configuration |
ALTRO | |
Certificazione | CE, FCC, RoHS |
Contenuto della confezione | IES206GPP DIN-Rail Mounting Bracket Wall-Mounting Plates Installation Guide |
Ambiente | Operating Temperature: -40℃~75℃ (-40℉~167℉) Storage Temperature: -40℃~85℃ (-40℉~185℉) Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~95% non-condensing |
