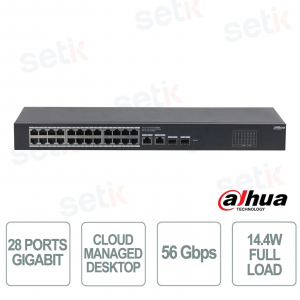

CS4228-24GT | SWITCH DI RETE CLOUD MANAGED 28 PORTE

Lo switch cloud gestito Dahua CS4228-24GT con 28 porte (24 RJ-45 Gigabit, 2 uplink RJ-45 e 2 uplink SFP) è progettato per reti aziendali e sistemi di sicurezza ad alte prestazioni. Attraverso la piattaforma DoLynk Care consente gestione cloud e locale, monitoraggio remoto, notifiche in tempo reale e visualizzazione della topologia di rete. Con una capacità di commutazione di 56 Gbps e un packet forwarding rate di 41.66 Mpps, garantisce connessioni stabili e fluide anche sotto carichi intensi. Il design fanless in metallo assicura silenziosità, lunga durata e protezione contro sovratensioni, scariche e fulmini, rendendolo ideale per uffici, negozi, fabbriche e PMI.
Specifiche principali:
- 28 porte totali: 24 RJ-45 Gigabit + 2 uplink RJ-45 + 2 uplink SFP
- Gestione cloud tramite app DoLynk Care
- Network topology con protocollo LLDP
- Switching capacity 56 Gbps e forwarding rate 41.66 Mpps
- Design fanless in metallo con protezioni integrate
Ulteriori dettagli

Scheda tecnica
| CS4228-24GT | |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Description of Function Slots | Port 1-24: 24 × RJ45 10/100/1000 Mbps Port 25-26: 2 × RJ45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | Built–in power supply: 100–240 VAC, 50/60 Hz, max 1.0A |
| Power Consumption | Idling: ≤4 W Full load: 14.4 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kV Differential mode: 2 kV |
| Net Weight | 1.78 kg (3.93 lb) |
| Gross Weight | 2.61 kg (5.75 lb) |
| Product Dimensions | 440 mm × 164 mm × 44 mm (17.32" × 6.45" × 1.73") (L × W × H) |
| Packaging Dimensions | 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| PoE | |
| PoE | No |
| PoE Power Consumption Management | NA |
| Hardware | |
| Reset Button | 1 |
| Performance | |
| MTBF | 86.94 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az IEEE 802.3ab IEEE 802.3ad |
| VLAN Number | 32 |
| Feature | |
| Ethernet Loop Protection | STP; RSTP |
| VLAN Function | IEEE 802.1Q VLAN |
| Link Aggregation | Static Aggregation |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror | N:1 Mirroring Local Port Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management | Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List | 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Power Adapter 1 × Power Cord |
