OC220 è un hardware controller professionale progettato per la gestione centralizzata delle reti aziendali tramite piattaforma Omada SDN, permettendo di controllare da un’unica interfaccia access point, switch e gateway. Supporta la gestione fino a 100 access point Omada, 20 switch e 10 gateway, garantendo un’infrastruttura di rete scalabile e facilmente amministrabile. Grazie al Cloud Access gratuito tramite app Omada o Web UI, consente monitoraggio e configurazione da remoto in qualsiasi momento. Il controller integra processore Quad-Core CA53 2.0 GHz, 2 GB di RAM DDR4 e memoria eMMC da 8 GB, offrendo prestazioni elevate e gestione stabile della rete. La dotazione hardware include 2 porte Gigabit Ethernet, porta USB 2.0 per backup dati e alimentazione PoE 802.3af o Micro-USB, con design compatto in metallo installabile su scrivania o a parete ideale per ambienti business. Omada

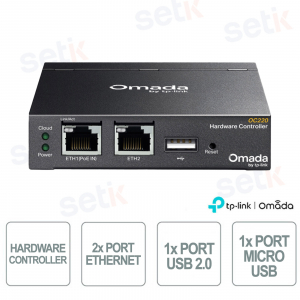

OC220 | HARDWARE CONTROLLER - 2 PORTE GIGABIT ETHERNET

Il TP-Link Omada OC220 è un controller hardware professionale per la gestione centralizzata delle reti Omada SDN, progettato per aziende e infrastrutture IT che richiedono controllo e monitoraggio avanzato. Permette la gestione di fino a 100 access point, 20 switch e 10 gateway Omada, offrendo un’infrastruttura scalabile controllabile da un’unica piattaforma. Grazie al Cloud Access gratuito tramite app Omada o Web UI, consente amministrazione remota della rete ovunque e in qualsiasi momento. Il dispositivo integra processore Quad-Core CA53 a 2.0 GHz, 2 GB di RAM DDR4 e memoria eMMC da 8 GB, garantendo prestazioni elevate e stabilità operativa. La dotazione include 2 porte Gigabit Ethernet, porta USB 2.0 per backup e alimentazione PoE 802.3af o Micro-USB, con design compatto in metallo installabile su scrivania o parete ideale per ambienti business.
Specifiche principali:
- Gestione centralizzata Omada SDN fino a 100 access point, 20 switch e 10 gateway
- Cloud Access gratuito con gestione remota tramite app Omada o Web UI
- Processore Quad-Core CA53 2.0 GHz con 2 GB RAM DDR4 e memoria eMMC 8 GB
- 2 porte Gigabit Ethernet e porta USB 2.0 per backup dei dati
- Supporto alimentazione PoE 802.3af o Micro-USB DC 5V
- Design compatto con chassis in metallo per installazione desktop o a parete
Ulteriori dettagli
Scheda tecnica
| Model | OC220 |
| CARATTERISTICHE HARDWARE | |
| Processore | Quad-Core A53 @ 2.0 GHz/Core |
| Interfaccia | 2× Gigabit Ethernet Ports 1× USB 2.0 Port 1× Micro USB Port |
| Physical security lock | Kensington Lock |
| Tasto | Reset Button |
| Alimentazione | 802.3af PoE Micro USB(DC 5V/Minimum 1A) |
| Consumo energetico | 11.2 W (powered by a PoE device, with USB 2.0 connected) 3.5 W (powered via Micro-USB port, no USB 2.0 connected) |
| DRAM | 2 GB DDR4 |
| Storage | 4MB Nor Flash 8 GB eMMC |
| Peso | 0.305 kg |
| Dimensioni ( L x P x A ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| GESTIONE | |
| Omada App | Yes |
| Restore & Backup | √ |
| Centralized Management | 100 Omada access points 10 Omada gateways A maximum of 20 Omada switches* A maximum of two select DeltaStream GPON OLTs* Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| MONITORING | |
| Monitoring | DPI IPS/IDS Dashboard (Custom Dashboard) Statistics (Performance/Switch Statistics) Network topology Network Map Devices List (Custom Table) Clients List (Custom Table) Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs) Logs (Alerts/Events/Custom Notifications) |
| ALTRO | |
| Certificazione |
CE, FCC, RoHS |
| Contenuto della confezione |
Omada Hardware Controller OC220 |
| Requisiti di sistema |
Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Ambiente |
Operating Temperature: -5–50 ℃ (23–122 ℉) |
