Fusion G+ è un gateway enterprise con controller Omada integrato, pensato per centralizzare networking, sicurezza e gestione multi-sito senza licenze aggiuntive. Integra CPU Quad-Core, 1 porta WAN 2.5G e 4 porte Gigabit LAN/WAN, supportando fino a 4 WAN simultanee con load balancing e failover automatico. Offre IDS/IPS fino a circa 2,1 Gbps, VPN avanzate, Full-Mesh SD-WAN, Omada LightLink VPN, QoS e content filtering. Il touchscreen a colori da 2,51" consente diagnostica e controllo locale, mentre Bluetooth e Omada App semplificano configurazione e adozione dei dispositivi. Omada

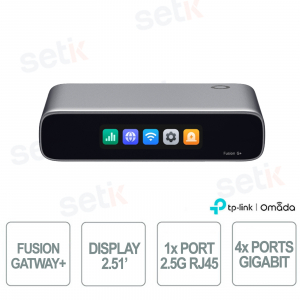

Fusion G+ | FUSION GATEWAY G+

Il TP-Link Omada Fusion G+ è un gateway professionale con controller Omada integrato, progettato per centralizzare rete, sicurezza e gestione multi-sito senza costi di licenza cloud aggiuntivi. Integra CPU Quad-Core, 1 porta WAN 2.5G e 4 porte Gigabit LAN/WAN, con supporto fino a 4 WAN simultanee, load balancing e failover automatico. Offre IDS/IPS fino a circa 2,1 Gbps, DPI, Full-Mesh SD-WAN, Omada LightLink VPN e protocolli VPN avanzati. Il touchscreen a colori da 2,51" consente diagnostica locale rapida, mentre Bluetooth e Omada App semplificano configurazione e gestione. È indicato per reti fino a 30 dispositivi Omada gestiti e circa 300 client connessi.
Specifiche principali:
- Controller: Omada integrato
- CPU: Quad-Core
- WAN: 1× 2.5G + fino a 4 WAN
- LAN/WAN: 4× Gigabit
- Sicurezza: IDS/IPS + DPI
- VPN: LightLink, WireGuard, IPsec
- SD-WAN: Full-Mesh
- Display: touchscreen 2,51"
- Gestione: Cloud, App, locale
- Capacità: fino a 30 device / 300 client
Ulteriori dettagli
Scheda tecnica
| Model | Fusion G+ |
| Overview | |
| Built-In Omada Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices§ |
| Client Capacity | Recommended for up to 300 connected clients§ |
| Interface |
|
| IPS Throughput | 2,183 Mbps* |
| Site-to-Site VPN Throughput | 1,023 Mbps† |
| Management | Cloud, local, and Omada App management |
| Mounting |
|
| Dimensions | 5.12 × 3.74 × 1.18 in (130 × 95 × 30 mm) |
| Built-in Omada Controller§ | |
| Cloud Access | √ |
| Local Management | √ |
| Omada App | √ |
| Multi-Site Management | √ |
| Restore & Backup | √ |
| Automatic Device Discovery | √ |
| Network Topology | √ |
| Dashboard | √ |
| Device List / Client List | √ |
| Logs / Alerts / Events | √ |
| Batch Firmware Upgrade | √ |
| Health Monitoring | √ |
| Internet Activity | √ |
| Captive Portal | √ |
| RADIUS / LDAP Authentication | √ |
| 802.1X Authentication | √ |
| OUI-Based VLAN | √ |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | 1/v2c/v3 |
| SICUREZZA | |
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack defence | √ |
| ARP inspection | √ |
| VPN & SD-WAN | |
| Omada LightLink VPN |
√ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput |
|
| Networking | |
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Multi-WAN Failover & Load Balancing | √ |
| DHCP Server | √ |
| VLAN Segmentation | √ |
| Bandwidth Control | √ |
| QoS | √ |
| Static Routing | √ |
| Policy Routing | √ |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Bonjour / mDNS | √ |
| IGMP v2/v3 Proxy | √ |
| HARDWARE | |
| Touchscreen | 2.51-inch color LCM touchscreen |
| Button | Reset button |
| Memory | 2 GB DDR4 |
| Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
| Max Power Consumption | 6.18 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Fanless |
| Net Weight | 0.77 lb (351 g) |
| Surge Protection | 4 kV surge protection |
| ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C) Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
