Il PFS4428-24GT-370 di Dahua, è uno switch di aggregazione gestionabile Layer 2 - Porte: 24x 10/100/1.000 Base-T port + 4x1.000 Base-X - Supporta IEEE802.1 - MAC Table Size 8K - Switching Capacity: 56Gbps - Protezione contro i fulmini 2kV - Data Cache 4M - Supporto standard IEEE802.3af / IEEE802.3at - Prodotto di alta qualità.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

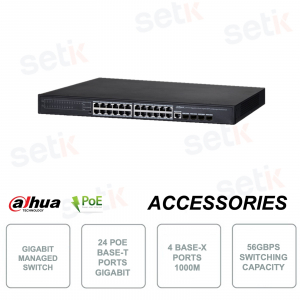

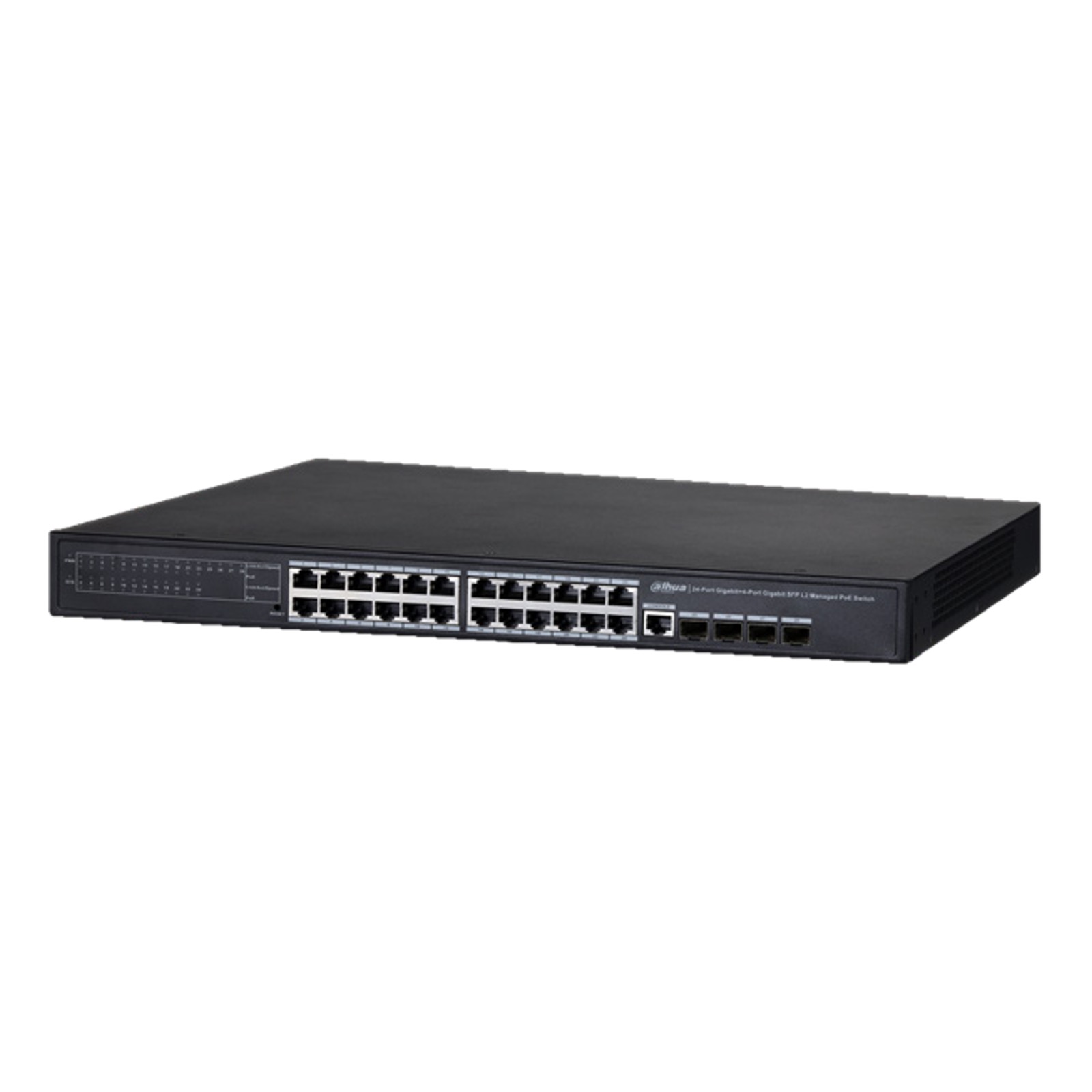

SWITCH DI AGGREGAZIONE GESTIONABILE - LAYER 2 - PORTE: 24 BASE-T + 4 BASE-X - DAHUA - PFS4428-24GT-370

Switch di aggregazione - Managed - Layer 2 - Dahua - PFS4428-24GT-370
Dettagli prodotto

- Switch di aggregazione gestita - Dahua - PFS4428-24GT-370
- 24 porte PoE 10/100/1000M Base -T
- 4 Porte 1.000M Base-X
- Capacità di commutazione: 56 Gbps
- MAC Table Size: 8K
- Alta protezione contro i fulmini: modalità comune 2kV
- Ampia temperatura di esercizio: 0°C~45°C
- Dimensioni: 440mm x330mm x44mm
- Peso netto dell'articolo: 4.37kg
- Alimentazione: AC100-240V, 50/60Hz
Scheda tecnica
| Technical Specs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | PFS4428-24GT-370 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 24*10/100/1000 Base-T (PoE power supply) 4*1000 Base-X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power Consumption | Port1-24 ≤30W, Total≤370W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Protocol | IEEE802.3af, IEEE802.3at | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Capacity | 56Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Forwarding Rate | 41.66Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Buffer Memory | 4.1Mb | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Application Humidity | 10%~90% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | AC100-240V, 50/60Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lightning Protection | Common Mode 2KV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Temperature | 0°C~45°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 4.37kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension(W×D×H) | 440mm x330mm x44mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Service Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System | Username / password: admin/admin123 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Address :192.168.1.110/24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Budget | Total≤370W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table | 8K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SNTP | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DHCP | Support DHCP client/Relay | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Support DHCP snooping | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN | 802.1Q Standard VLAN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port Aggregation | Manual aggregation/LACP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirroring | Many-to-one port mirroring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Flow Control | Half-duplex based on back pressure type control; Full duplex based on PAUSE frame | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multicast | IGMP Snooping v2/v3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security Features | Broadcast / Uncast / Multicast Storm Control, IEEE 802.1x, DHCP Snooping(IP, MAC, Port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spanning tree | Support STP/RSTP/MSTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LLDP | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table | Support MAC address table configuration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| QoS | WRR (Weighted Round Robin) Port based QoS IEEE 802.1p Class of Service DSCP-based QoS QoS basic mode QoS advanced mode (Policy based) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System Maintenance | Support the configuration file upload/download Support the updated packet upload System log | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Management | WEB, Telnet, SSH, SNMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
