Il AS5500-24GT4XF di Dahua, è uno switch di rete Gestionabile Layer 3 - Integra 24 Porte RJ45 1000M + 4 SFP+ fino a 10Gigabit per Uplink - IRF 2 Technology - Gestionabile - 1x MicroUSB Port - 1x Console Port - MAC Table Size 16K - Switching Capacity 128Gbps - Protezione dai fulmini 8kV - Alimentatore integrato 100–240 VAC, 50/60 Hz, 1 A.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

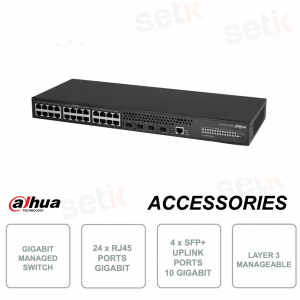

SWITCH DI RETE - LAYER 3 - GESTIONABILE - DA 24 PORTE RJ45 1000M + 4 PORTE SFP + PER UPLINK - DAHUA - AS5500-24GT4XF

24 Porte Ethernet RJ45 10/100/1000M + 4 Porte SFP+ per Uplink con velocità di trasmissione fino a 10Gbps - Layer 3 - IRF2: Intelligent Resilient Framework 2 - Gestionabile - 1x Console Port - 1x Micro USB - PAcket Buffer Size 12Mbit - capacità di switching 128Gbps - MAC Table SIze 16K - Protezione dai fulmini 8kV - Case in lamina di metallo - Per montaggio a scrivania o a rack - Dahua Technology.
Dettagli prodotto
- Switch di rete - Dahua - AS5500-24GT4XF
 - 24 Porte 10/100/1000M
 - 4 Porte SFP + fino a 10Gbps (per l'uplink)
 - Layer 3
 - Gestionabile
 - 1x Micro USB
 - 1x Console Port
 - Packet Buffer Size 12Mbit
 - Capacità di switching 128Gbps
 - MAC Table Size: 16K
 - Protezione 8kV dai fulmini
 - Case in lamina di metallo
 - Per installazione a rack o a scrivania
 - Dimensioni: 440 mm × 160 mm × 43.6 mm
 - Peso: inferiore a 2.6Kg
 - Temperatura di funzionamento: –5 °C to +45 °C
 - Alimentatore integrato nel design: 100–240 VAC, 50/60 Hz, 1 A

Scheda tecnica
| AS5500-24GT4XF | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Hardware  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Included Power Adapter  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Ethernet Port  |
 24 × RJ-45 10/100/1000 Mbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Optical Port  |
 4 × SFP+ 1/10 Gbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Ethernet Port Speed  |
 10/100/1000 Mbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Optical Port Uplink Speed  |
 1/10 Gbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Description of Function Slots  |
 Port 1-24: 24 × RJ-45 10/100/1000 Mbps; Port 25-28: 4 × SFP+ 1/10 Gbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Management port  |
 1 × Micro-USB port  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 Built-in power supply: 100–240 VAC, 50/60 Hz, 1 A  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –5 °C to +45 °C (+23 °F to +113 °F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 5%–95% (RH)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage Temperature  |
 –40 °C to +70 °C (–40 °F to +158 °F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage Humidity  |
 5%–95% (RH)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Fanless Design  |
 No  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 Idling: 10 W Full load: 24 W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Layer  |
 L3  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Management Type  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 MTBF  |
 131.97 years  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Switching Capacity  |
 128 Gbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packet Forwarding Rate  |
 95.232 Mpps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packet Buffer Size  |
 12 Mbit  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Jumbo Frame  |
 10K Byte  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 MAC Table Size  |
 16K  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Number  |
 4K  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Interface  |
 512  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IPv4 Routes  |
 1K  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Dynamic ARP  |
 1K  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Communication Standard  |
 IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Features  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Ring Network Protocol  |
 STP/RSTP/MSTP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Routing  |
 Static routing  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Function  |
 Port-based VLAN  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Link Aggregation  |
 Static link aggregation  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IEEE 802.3x Flow Control  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Multicast  |
 IGMP Snooping v1/v2/v3  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Reliability  |
 IRF; VRRP; DLDP; LLDP; VCT  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 ARP  |
 ARP source suppression  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 DHCP Function  |
 DHCP Client  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Security  |
 Multi-level user management and password protection  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 QoS/ACL  |
 802.1p/DSCP priority tag  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IPv6  |
 ICMPv6  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Equipment Management  |
 Load update files and update using Xmodem/FTP/TFTP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Statics Protection  |
 Air discharge: 8 kV  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Lighting Protection  |
 Common mode: 1 kV  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 ≤ 2.6 kg (5.62 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 ≤ 3.0 kg (6.61 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 440 mm × 160 mm × 43.6 mm  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packaging Dimensions  |
 540 mm × 280 mm × 86 mm (21.26" × 11.02" × 3.39") (L × W × H)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Casing Material  |
 Sheet metal  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Installation  |
 Desktop mount; rack mount  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE; FCC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
