Il S5500-48GT4XF-E-V2 di Dahua, è uno switch di rete Gestionabile Layer 2+ con 48 porte Ethernet 10/100/1000Mbps e 4 porte ottiche Base-X 1/10Gbps - MAC Table Size 16K - Packet Buffer 24Mbit - Switching Capacity 336Gbps - Intelligent Resilient Framework 2 (IRF2) - 1x Console Port - A prova di fulmini 2kV - Per estendere la rete aziendale - Versione V2.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

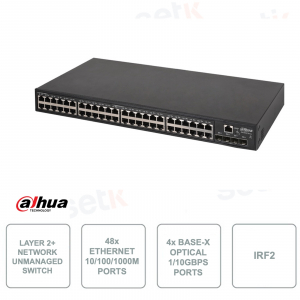

SWITCH DI RETE POE DA 48 PORTE + 4 PORTE BASE-X + - THUNDERPROOF 2KV - VERSIONE V2 - DAHUA - S5500-48GT4XF-E-V2

Versione V2 - 48 Porte Ethernet 10/100/1000M + 4 Porte ottiche Base-X 1/10Gbps - Layer 2+ - Gestionabile - Switching Capacity 336Gbps - MAC Table Size 16K - Packet Buffer Size 24Mbit - Intelligent Resilient Framework 2 (IRF2) - 1x Console Port - Thunder-proof 2kV - Alimentazione: 100–240V AC 50–60 Hz (internal) - Ideale per estenndere la rete aziendale.
Dettagli prodotto

- Switch di rete - Dahua - S5500-48GT4XF-E-V2
- Versione V2
- 48 Porte 10/100/1000M + 4 Porte ottiche Base-X 1/10Gbps
- Layer 2+
- Gestionabile
- 1x Console Port
- Packet Buffer Memory 24Mbits
- MAC Table SIze 16K
- Capacità di switching 336Gbps
- Consumi: Idling: 19W Full load: 44W
- Protezione dai fulmini: 2kV Common / 1kV differenziale
- Dimensioni: 440 mm ×230 mm×43.6 mm
- Peso netto del prodotto: 3.5 kg
- Temperatura di funzionamento supportata: 0°C to 45°C
Scheda tecnica
| S5500-48GT4XF-E-V2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hardware Feature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 48 x 10/100/1000 Mbps ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port | 4 x 1/10 Gbps Base-X ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Console Port | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | One power inclued | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Support single power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 100–240V AC 50–60 Hz (internal) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Idling: 19W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%RH–95%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | –40°C to 70°C (–40°F to 158°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Layer | Layer 2+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Managed | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Capacity | 336 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Forwarding Rate | 132Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Buffer Memory | 24 Mbit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table Size | 16K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Amount | 4094 Entries | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ARP Table | 1K Entries | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IPv4 Routing Table | 1024 Entries | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| QoS Queue | 8 Entries | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Jumbo Frame | 10,000 Byte | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ACL Table | 1024 Entries (IPV4) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN | Port-based VLAN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ring Network Protocol | STP/RSTP/MSTP/PVST | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DHCP | DHCP client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port Aggregation | 1GE/10GE port aggregation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirroring | Port mirroring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multicast | IGMP Snooping /MLD Snooping | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IRF | Distributed device management, distributed link aggregation, and distributed resilient routing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | Hierarchical user management and password protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ACL/QoS | 802.1p/DSCP priority marking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System Maintenance | Debugging information output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Management | Command line interface (CLI) configuration | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thunderproof | Common mode: 2kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 3.5 kg (7.72 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 4.40 kg (9.70 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 440 mm ×230 mm×43.6 mm(17.32" × 9.06" × 1.72" ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 540 mm× 340 mm×90 mm (21.26" × 13.39" × 3.54" ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
