Il DS-3E3730 di Hikvision, è uno switch di rete Gestito Layer 4 con 24 Porte Ethernet Gigabit + 6 Porte ottiche SFP+ 10Gigabit - Capacità di switching: 598Gbps - Packet Forward Rate: 222MBps - Supporta autenticazione IEEE 802.1x - MAC Adress Table Size 32K.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

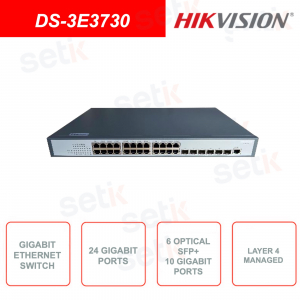

SWITCH DI RETE - LAYER 4 - GESTITO - 24 PORTE ETHERNET GIGABIT - 6 PORTE SFP+ 10 GIGABIT - HIKVISION - DS-3E3730

24 Porte Gigabit Ethernet - 6 Porte SFP+ 10Gigabit ottiche - MAC Adress TAble SIze 32K - Packet Forwrding Rate 222Mbps - Capacità complessiva di switching: 598Gbps - Management via web browser, Console, Telnet, SSH - QoS - Supporta autenticazione IEEE 802.1x.
Dettagli prodotto
- Switch di rete - HIKVISION - DS-3E3730
- Layer 4
- Gestionabile
- 24 Porte Ethernet Gigabit
- 6 Porte ottiche SFP+ 10 Gigabit
- MAC Table Adress SIze 32K
- Packet Forward Rate: 222Mbps
- Capacità totale di switching: 598Gbps
- Management: web browser, Console, Telnet, SSH
Scheda tecnica
|
Model |
DS-3E3730 |
|
Network Parameters |
|
|
Port Number |
24 Gigabit electrical ports and 6 10 Gigabit SFP+ optical port |
|
Forwarding Mode |
Store-and-forward switching |
|
MAC Address Table |
32 K |
|
Switching Capacity |
598 Gbps |
|
Packet Forwarding Rate |
222 Mpps |
| Software Functions | |
| Device Maintenance |
Support Console, Telnet, SSH Support web, http,https Support FTP, TFTP, Xmodem, SFTP Support SNMP V1/V2c/V3 Support RMON Support NTP |
| Reliability |
Support STP/RSTP/MSTP Support EAPS/MEAPS Support MRD-Ring Support ERPS Support VRRP Support BFD for OSPF Support BFD for BGP |
| VLAN |
Support IEEE 802.1Q (VLAN), 4096 VLAN IDs Support GVRP Support QinQ Support VLAN based on MAC/ protocol /IP subnet / policy / port Support Private VLAN Support 1:1 and N:1 VLAN Mapping functions |
| Port Miroring |
Support local and remote port mirroring Support N:4 port mirroring Support flow mirroring Support MAC mirroring |
| Routing |
Support Static routing, RIP, OSPF,BGP,MPLS Support IPv4/IPv6 ECMP Support VRRP, VRRP v3 Support IPv4/IPv6 Policy-based routing Support IPv4/IPv6 Routing policy Support IPv4/IPv6 dual stack Support IPv6 static routing, RIPng, OSPFv3 |
| QoS |
Support Diff-Serv QoS Support 802.1p/DSCP priority mapping Support Queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ Support Priority marking and remarking Support Traffic shaping Support Congestion avoidance, Tail-Drop and WRED Support 802.1p, TOS, DSCP, and EXP priority mapping Support Port/Flow- based Rate Limiting |
| Multicast |
Support IGMP v1/v2/v3 Snooping Support IGMP V1/V2/V3 Support MLD Snooping v1/v2 Support MLD v1/v2 |
| ACL |
Support IP-based ACL/MAC-based ACL Support based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority Support up to 256 ACLs |
| Link Aggregation | Support IEEE 802.3ad LACP/static link aggregation |
