Il S4220-16GT-240 di Dahua, è uno switch di rete Layer 2 gestito con 16 Porte Ethernet PoE (10/100/1000Mbps - RJ45) - 18 porte ethernet totali RJ45 + 2 Porte SFP 1000M) - Capacità di Switching: 56Gbps - MAC Size 8K - Packet Buffer 4.1Mbits - POE+ fino a 90W (porte 1-2) - Protezione dai fulmini 4kV.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

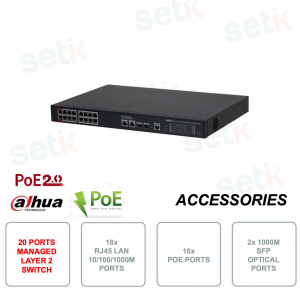

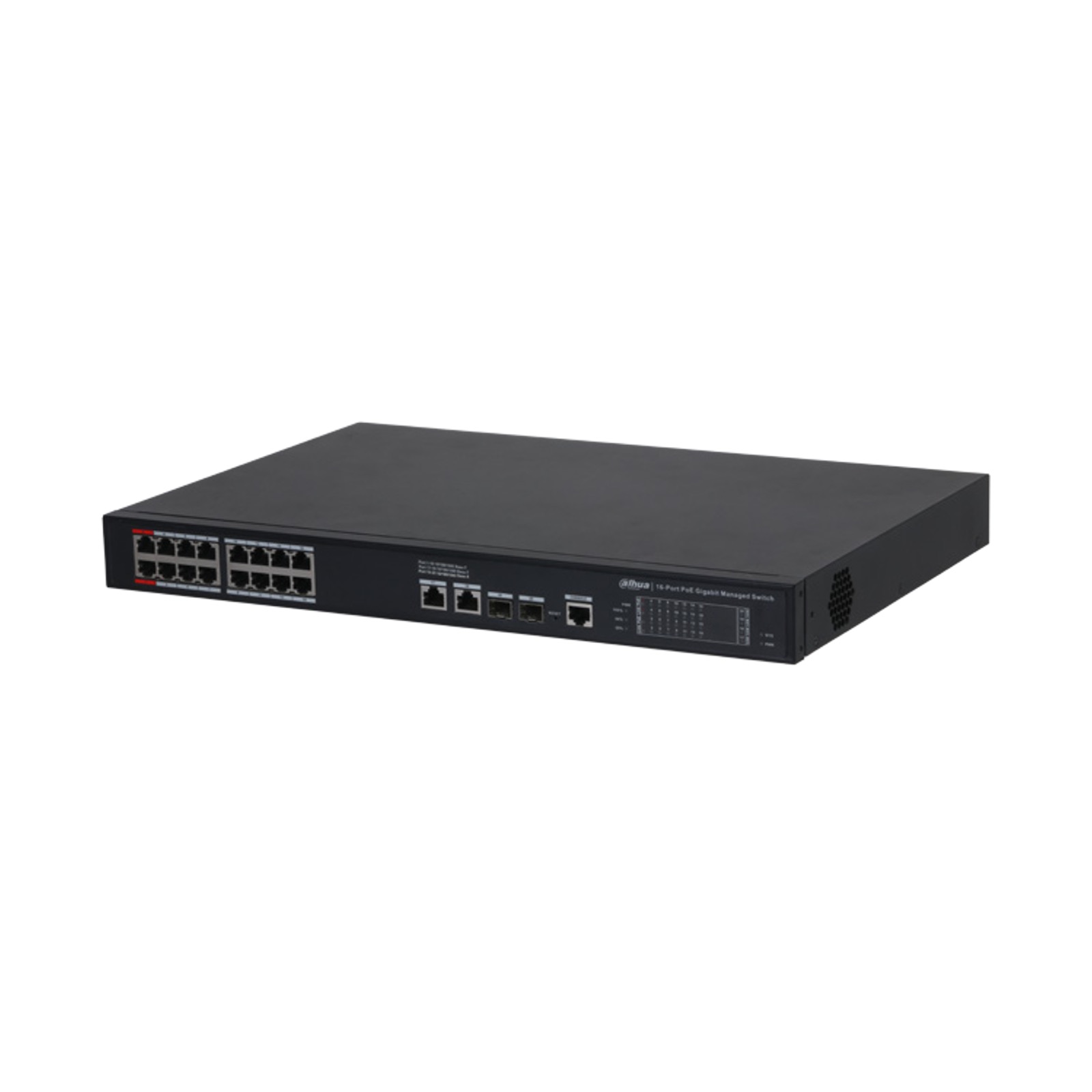

DAHUA S4220-16GT-240 | SWITCH DI RETE LAYER 2 GIGABIT 20 PORTE (16 POE + 2X LAN + 2X SFP) - FINO A 250 METRI!

20 porte: 16 Porte LAN PoE (10/100/1000M) + 2 porte LAN (No PoE 10/100/1000M) + 2 porte SFP ottiche 1000Mbps
Capacità di switching 56Gbps - Packet Buffer Size 4.1Mbits - MAC Table Size 8K - Protezione dai fulmini fino a 4kV
Supporta PoE / PoE+ e Hi-PoE (PoE++) Red Port 90W / Trasmissioni PoE a lunga distanza fino a 250m.
POE 2.0PoE 2.0 è la nuova generazione di switch Dahua progettati appositamente per gli scenari di videosorveglianza. Questi modelli presentano notevoli ottimizzazioni come PoE Watchdog, porte BT 90W e trasmissione estesa per il massimo della flessibilità e della convenienza. Continua a leggere...  |
Dettagli prodotto
- Switch industriale di rete Dahua - S4220-16GT-240
 - Layer 2
 - Gestionabile
 - 16 Porte LAN (10/100/100MM)
 - 18 porte RJ45 totali 10/100/100M
 - 2 porte ottiche SFP 1000M
 - Dettaglio porte PoE:
Port 1-2: ≤ 90 W
Port 3-16: ≤ 30 W
Total: ≤ 240 W - Standard PoE supportati: IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt (PoE++)
 - Trasmissione dati su lunghissime distanze, fino a 250m
 - MAC Adress Size 8K
 - Packet Buffer Size: 4.1Mbits
 - Protezione contro fulmini fino a 4KV (2KV in modalità differenziale)
 - Dimensioni: 440 mm × 300 mm × 44 mm
 - Peso netto: 3.405 kg
 - Temperatura di funzionamento: –10°C to 55°C
 - Consumi:
Idling load: ≤ 20 W
Full load: 240 W - Alimentazione: 100-240 VAC, 50/60 Hz, 3.5 A
 - Integra tasto di reset

| S4220-16GT-240 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Hardware  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Included Power Adapter  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PoE  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Ethernet Port  |
 18  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Optical Port  |
 2  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Ethernet Port Speed  |
 10/100/1000 Mbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Optical Port Speed  |
 1000 Mbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Description of Function Slots  |
 Port 1-16: 16 × RJ45 10/100/1000 Mbps(PoE)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Debugging  |
 Console × 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Reset Button  |
 1  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 100-240 VAC, 50/60 Hz, 3.5 A  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 –10°C to 55°C (+14°F to +131°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 5%–95% (RH)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 Idling load: ≤ 20 W;  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Management Type  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 MTBF  |
 467125.73 hours  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Switching Capacity  |
 56 Gbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packet Forwarding Rate  |
 29.76 Mpps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packet Buffer Size  |
 4.1 Mbit  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Jumbo Frame  |
 10K Byte  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 MAC Table Size  |
 8K  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Number  |
 4K  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Interface  |
 10  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Dynamic ARP  |
 512  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Communication Standard  |
 IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Feature  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PoE Protocol  |
 IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt (PoE++)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PoE Power  |
 Port 1-2: ≤ 90 W Port 3-16: ≤ 30 W Total: ≤ 240 W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PoE Power Consumption Management  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 PoE Pin Assignment  |
 1,2,4,5 (V+),3,6,7,8 (V-)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Long Distance PoE Transmission  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Spanning Tree Protocol  |
 STP; RSTP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 VLAN Function  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Link Aggregation  |
 Static link aggregation; LACP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IEEE 802.3x Flow Control  |
 IEEE 802.3X-based flow control (full-duplex)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Multicast  |
 IGMP Snooping  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 DHCP Function  |
 DHCP client  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Security  |
 IEEE 802.1x  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Equipment Management  |
 WEB(http and https)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Statics Protection  |
 Air discharge: 8 kV;  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Lighting Protection  |
 Common mode: 4 kV;  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 3.405 kg (7.51 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 4.51 kg (9.94 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packaging Dimensions  |
 525 mm × 410 mm × 110 mm (20.67" × 16.14" × 4.33")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Certifications  |
 CE, FCC  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
POE 2.0PoE 2.0 è la nuova generazione di switch Dahua progettati appositamente per gli scenari di videosorveglianza. Questi modelli presentano notevoli ottimizzazioni come PoE Watchdog, porte BT 90W e trasmissione estesa per il massimo della flessibilità e della convenienza. PIU' POTENZA E PROTEZIONE
 PIU' PORTATA
 GESTIONE INTELLINGENTE
  |
