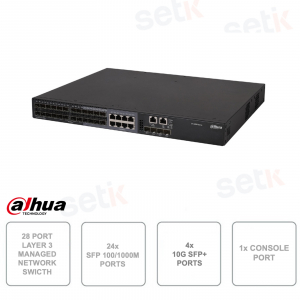

Switch di rete gestito - 28 porte - 24 porte SFP 100/1000Mbps + 4 porte Porte 10G SFP+ - Console port
Il S5500-24GF4XF-E di Dahua, è uno switch di rete industriale 28 Porte (24 × SFP 100/1000 Mbps + 4x 10G SFP+) - Capacità di switching 128Gbps - MAC Table Size 16K - Packet Forwarding Rate 95.232Mbps - Protezione 2kV dai fulmini - 1x Console Port - 1x MGT Port - 1x micro USB Console.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
SWITCH DI RETE INDUSTRIALE 18 PORTE SFP 100/1000M + 4 PORTE SFP+ 10G - DAHUA - S5500-24GF4XF-E

Switch industriale - Dahua - S5500-24GF4XF-E
28 Porte totali - 24 SFP 100/1000M + 4 Porte SFP+ 10G - Gestionabile, Layer 3 - Packet Forward Rate 95.232Mbps - MAC Table Size 16K - Switching Capacity: 128Gbps - Protezione 2KV dai fulmini - Peso netto 4Kg - Dimensioni: 440 mm × 360 mm × 43.6 mm - Potenza totale 240W max
Dettagli prodotto
- Switch di rete industriale - Dahua - S5500-24GF4XF-E
- 28 Porte (24 Ethernet + 8 Combo SFP/RJ45 + 4 Porte SFP+)
- Standard supportati: IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae
- MAC Table Size 16K
- Packet Forwarding rate: 95.232Mbps
- Capacità complessiva di switching 128Gbps
- 1x Console Port
- 1x MGT Port
- 1x micro USB Console
- Temperatura di funzionamento: –5 °C to 45 °C
- Peso netto dell'articolo: 4Kg
- Dimensioni senza imballaggio: 440 mm × 360 mm × 43.6 mm
- Alimentatore incluso nella confezione
- Trasmissioni video senza interruzioni
Scheda tecnica
| S5500-24GF4XF-E | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hardware |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Included Power Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CPU Clock Speed |
800 Mhz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory Size |
512 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flash Size |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port |
24 × SFP 100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Speed |
100/1000 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Optical Port Uplink Speed |
1/10 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Description of Function Slots |
Port 1-24: 24 × SFP 100/1000 Mbps Port 16-24: 8 x 10/100/1000 Mbps BASE-T (combo) Port 25-28: 4 × SFP+ 1/10 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Debugging |
1 × Console port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
100–240 VAC, 50/60 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–5 °C to 45 °C (23 °F to 113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
AC Idling: 15 W; Full load: 55 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer |
Layer 3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management Type |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
128 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
95.232 Mpps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Size |
1.5Mbytes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Jumbo Frame |
10K Byte |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MAC Table Size |
16K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Number |
4K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Interface |
32 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IPv4 Routes |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dynamic ARP |
1K |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Standard |
IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad; IEEE 802.3ae |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Features |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ring Network Protocol |
STP/RSTP/MSTP/PVST |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Routing |
Static routing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VLAN Function |
Port-based VLAN |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Link Aggregation |
Static link aggregation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IEEE 802.3x Flow Control |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multicast |
IGMP Snooping v1/v2/v3 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reliability |
IRF; VRRP; DLDP; LLDP; VCT |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ARP |
ARP source suppression |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DHCP Function |
DHCP Client |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security |
Multi-level user management and password protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
QoS/ACL |
802.1p/DSCP priority tag |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IPv6 |
ICMPv6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Equipment Management |
Load update files and update using Xmodem/FTP/TFTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
4.00 kg (8.82 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
440 mm × 360 mm × 43.6 mm (17.32" × 14.17" × 1.72" ) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
572 mm × 554 mm × 115 mm (22.52" × 21.81" × 4.53" ) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE EMC: FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
