Lo switch S7803 della serie S78 di Dahua offre ricche funzionalità Layer 3, facilità di gestione, supporto per Intelligent Resilient Framework, politiche di controllo della sicurezza complete, sostituzione a caldo per tutti i componenti, elevate capacità di servizio IPv4 e IPv6 con tecnologia MACsec per crittografia hardware, e un design modulare con diverse porte Ethernet.
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

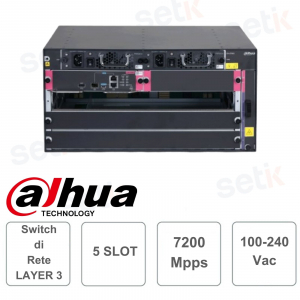

SWITCH DI RETE INDUSTRIALE - LAYER 3 - GESTITO - SUPPORTA PORTE OTTICHE-PORTE ELETTRICE-PORTE ETHERNET - DAHUA - S7803

Switch di rete - Layer 3 - Gestionabile - Dahua - S7803
Dettagli prodotto
- Switch di rete - Layer 3 - Gestionabile - Dahua
 - 5 slot (3 per le schede di linea e 2 per le MPU).
 - Supporta il routing statico, RIP, OSPF, IS-IS, BGP4, VRRP, ECMP, policy-based routing e altre funzionalità di livello 3.
 - Supporta la sostituzione a caldo
 - 1 porta console RJ45
 - 1 porta micro USB.
 - La fornitura di energia è doppia e supporta una potenza doppia da 100-240V AC 50-60 Hz (interna).
 - Il consumo energetico è di 7.5W a riposo e 490W a pieno carico.
 - La temperatura di funzionamento va da 0°C a 45°C (32°F a 113°F) e l’umidità operativa è tra il 5%RH e il 95%RH
 - La capacità di switching è di 38.4Tbps e la velocità di inoltro dei pacchetti è di 7200Mpps.
 - La memoria del buffer dei pacchetti è di 24 Mbit
 - IEEE 802.1AE MACsec.
 - Dimensioni 216 mm × 436 mm × 420 mm (8.50" × 17.17" × 16.54")
 - Peso netto del prodotto: 20,20 kg
 - Doppio gruppo interno di alimentazione 100–240 VAC, 50/60 Hz, Temperatura di funzionamento: –0°C to 45°C (32°F to 113°F)

Scheda tecnica
|
 Hardware Feature  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Total Number of Slots  |
 5  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Number of Line Card Slots  |
 3  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Number of MPU Slots  |
 2  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Hot Swapping  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Console Port  |
 1 × RJ45 console port  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Supply  |
 Two powers included  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Supports dual power  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 100-240V AC 50-60 Hz (Internal)  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Power Consumption  |
 Idling: 7.5W  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Temperature  |
 0°C to 45°C (32°F to 113°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Operating Humidity  |
 5%RH–95%RH  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Storage Temperature  |
 –40°C to 70°C (–40°F to 158°F)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Redundancy  |
 Redundant MPUs, power modules  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Performance  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Layer  |
 Layer 3  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Managed  |
 Yes  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Switching Capacity  |
 38.4Tbps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packet Forwarding Rate  |
 7200Mpps  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packet Buffer Memory  |
 24 Mbit  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Jumbo Frame  |
 9,600 Byte  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Features  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Ethernet  |
 IEEE 802.1P (CoS priority)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Routing  |
 Static routing, RIP, OSPF, IS-IS, and BGP4  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 DHCP  |
 DHCP client  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IP routing  |
 80K IPV4 routing entries  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Mirroring  |
 Flow mirroring  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Multicast  |
 PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, and Any-RP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 IRF  |
 IRF2  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Security  |
 Hierarchical user management and password protection  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 ACL/QoS  |
 Standard and extended ACLs  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 System Management  |
 Loading and upgrading through XModem/FTP/TFTP  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Network Management  |
 Command line interface (CLI) configuration  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 HA  |
 1+1 redundancy for key components such as MPUs  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 General  |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Thunderproof  |
 Common mode: 2kV  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Net Weight  |
 18 kg (39.68 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Gross Weight  |
 20.20 kg (44.53 lb)  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Product Dimensions  |
 216 mm × 436 mm × 420 mm (8.50" × 17.17" × 16.54")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
 Packaging Dimensions  |
 650 mm × 590 mm × 375 mm (25.59" × 23.23" × 14.76")  |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
