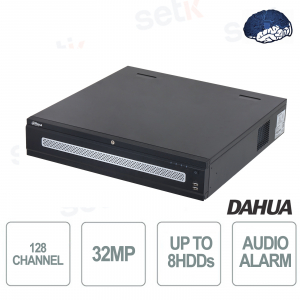

NVR IP ONVIF PoE Professionale Dahua NVR58128RH-XI Serie XI WizSense Registratore 128 Canali con risoluzione fino a 32MP. Smart H.265+, Fino a 512Mbps larghezza di banda in entrata/registrazione/uscita. Intelligenza Artificiale: Rilevamento e riconoscimento volto, protezione perimetro, SMD plus, Video metadata, ANPR, analisi stereo, mappa di calore, conteggio persone. 2U Fino a 8HDDs (20TB - non inclusi), 1 ingresso/2 uscita audio, 16 ingressi/8 uscite allarme, 2xHDMI, 2x VGA, 2x USB 2.0, 2x USB 3.0, 1x RS232, 1x RS485. Supporta montaggio rack o scrivania.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

NVR 128 CANALI ONVIF® IP DAHUA - SERIE XI INTELLIGENZA ARTIFICIALE - FINO A 32 MEGAPIXEL

Fino a 32MP di risoluzione - 512Mbps banda massima - Video Compressione fino H.265+
Uscita 2x HDMI - 2x VGA - 4x USB - Audio e Allarme - 2U Fino a 8HDDs SATA III 3.5"
Intelligenza Artificiale: Rilevamento e riconoscimento volto, protezione perimetro, SMD plus, metadata, ANPR, analisi stereo, mappa di calore, conteggio persone, Video metadata
|
TECNOLOGIA WIZSENSE: |
Dettagli prodotto

|
Dahua serie XI La serie NVR5000-XI di Dahua, offre una tecnologia di registrazione avanzata e dispone di funzionalità AI che lo rendono ideale per la videosorveglianza IP. È dotata di un potente processore con potenti capacità di decodifica che offre accesso elevato di larghezza di banda, in entrata e uscita, d'inoltro e forti capacità di decodifica che insieme producono flussi senza ostacoli e accedere a video fino a 32MP. Grazie agli algoritmi avanzati di deep learning e alla tecnologia dei metadati video di Dahua, l'NVR offre:
|
Scheda tecnica
| Model: DVR | NVR58128RH-XI |
| SYSTEM | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat map; PPE detection |
| AcuPick AI by Camera + Recorder | Max. 36-channel, 1 combined event per channels |
| PERIMETER PROTECTION | |
| Perimeter Performance AI by Recorder (Number of Channels) | 24 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (32 targets/s) |
| FACE DETECTION |
|
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | Sub screen 4K enabled:4 channels (up to 12 face images/s each channel) Sub screen 4K disabled:8 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 32 channels |
| FACE RECOGNITION |
|
| Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | Sub screen 4K enabled: 16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s 4-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Sub screen 4K disabled: 16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 32 channels |
| SMD PLUS |
|
| SMD Plus by Recorder | 32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (128 targets/s) |
| VIDEO METADATA |
|
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels, 23 attributes extraction. |
| Metadata Performance of AI by Camera (Number of Channels) | 32 channels |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle Attributes | 4 attributes |
| VEHICLE LICENSE PLATE COMPARISON |
|
| ANPR by Camera (Number of Channels) | All channels (32 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| AUDIO AND VIDEO | |
| Access Channel | 128 channels |
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@30fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8- channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;6- channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 16-channel 1080p@30 fps |
| Video Output | 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64/128 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| COMPRESSION STANDARD |
|
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| NETWORK | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| RECORDING PLAYBACK |
|
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| STORAGE | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| ALARM | |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |
| PORT | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels (1-channel 12 V 1 A output) |
| HDD Interface | 8 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2(10/100/1000 Mbps Ethernet port, RJ-45) |
| GENERAL | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Redundant Power | Yes |
| Power Consumption | <13 W (without HDD) |
| Net Weight | 8.79 kg (19.38 lb) |
| Gross Weight | 11.82 kg (26.06 lb) |
| Product Dimensions | 440.0 mm × 476.0 mm x 95.0 mm (17.32" × 18.09" × 3.74") (W ×D × H) |
| Packaging Dimensions | 618.0 mm × 571.0 mm x 219.0 mm (24.33" × 22.48" × 8.62")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| CERTIFICATIONS | |
| Certifications |
Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN |
Ulteriori dettagli
![]() |
Questo registratore IP NVR presenta 128 Canali per collegamento telecamere IP Risoluzione di registrazione fino a 32Megapixel Fino a 512Mbps larghezza di banda |
|
|
Smart H.265+ Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete. Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard
|
![]() |
Questo NVR supporta lo standard ONVIF® 23.06 |
![]() |
ANPR | Riconoscimento automatico targa auto Ideale per gestione entrate e uscite. Compatibile con telecamere Dahua ANPR, integra funzioni di lista nera / bianca, importazione/esportazione dati, aggiunta/cancellazione numeri targa nelle liste, ricerca risultati da un video registrato. ![]() |
|
Possibilità di collegare dispositivi POS, ottenendo tutte le informazioni in sovraimpressione sul canale. Possibilità di ricerca pos per data o transazione
|
|
| Supporta 8x Hard Disk SATA III 3,5" fino a 20 TB ciascuno ( hard disk non inclusi ) ATTENZIONE: sui sistemi NVR usate dischi specifici audio/video. Per avere maggiori informazioni, leggete il nostro articolo dedicato. |
|
![]() |
Questo NVR presenta 4 Porte USB (2x retro USB3.0 , 2x Frontale 2.0) |
|
|
Porta 2x HDMI e 2x VGA |
![]() |
Con Relè d'allarme 16 ingressi e 8 uscite per Ingressi da Antifurti o altri strumenti e per attivare periferiche esterne (cancelli, sirene, ecc.) |
| Questo NVR presenta 1 ingresso e 2 uscita audio RCA | |
| Dynamic DNS: permette di raggiugere l'NVR anche in caso di IP Dinamico | |
![]() |
Possibilità di far sovrascrivere sul disco quando è pieno o far sì che il disco sovrascriva dopo X giorni. Programmazione riavvio NVR per garantire maggior stabilità nel tempo |
![]() |
Questo NVR dispone di invio email. In caso di eventi (offuscamento telecamera, taglio segnale, motion, disco rotto, problemi di rete etc...), è in grado di inviare una segnalazione via email,una notifica sonora oppure caricare video & screeshot tramite FTP |
![]() |
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. |
![]() |
1x RJ-45 (10/100/1000 Mbps) |
| RS 485 per Comandi PTZ (Telecamere comandabili da remoto) | |
![]() |
RS 232 per comunicare con PC e keyboard |
|
Questo prodotto è coperto da Garanzia di 24 mesi. |
