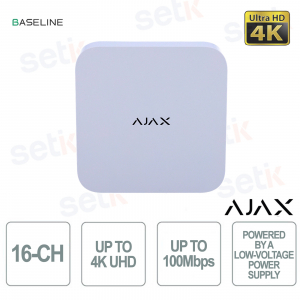

127058.122.WH #1270578| NVR DC 16-ch bianco a 16 canali è un network video recorder progettato per impianti di videosorveglianza professionali che richiedono alimentazione a bassa tensione e massima affidabilità. Supporta fino a 16 canali video in risoluzione 4K, garantendo immagini nitide e fluide grazie allo streaming peer-to-peer con tecnologia JetSparrow. Il sistema assicura crittografia avanzata TLS e mTLS e controllo completo della privacy, con accesso ai dati riservato esclusivamente al proprietario. L’esperienza utente è ottimizzata tramite live view immediata, navigazione rapida dell’archivio e verifica video degli allarmi. Compatibile con telecamere Ajax e ONVIF, integra supporto HDD fino a 16 TB e alimentazione DC 9–16 V, risultando ideale per installazioni avanzate e flessibili. Ajax
Riferimento: 127058.122.WH
Marca: Ajax Systems
EAN: 4823114071249
Disponibilità: 18
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
127058.122.WH | VIDEOREGISTRATORE DI RETE A 16 CANALI ALIMENTATO DA UNA FONTE DI ALIMENTAZIONE A BASSA TENSIONE

Ajax NVR DC, 127058.122.WH, bianco a 16 canali è un network video recorder professionale progettato per sistemi di videosorveglianza avanzati che richiedono alimentazione a bassa tensione e massima flessibilità di installazione. Consente la gestione di fino a 16 canali video in risoluzione 4K, offrendo immagini nitide e fluide grazie allo streaming peer-to-peer con tecnologia JetSparrow. Il sistema garantisce crittografia avanzata TLS e mTLS e controllo totale della privacy, con accesso ai dati riservato esclusivamente al proprietario. L’esperienza d’uso è ottimizzata con live view immediata, navigazione rapida dell’archivio e verifica video degli allarmi. Compatibile con telecamere Ajax e ONVIF, supporta HDD fino a 16 TB ed è ideale per installazioni professionali alimentate a 9–16 V DC.
Specifiche principali:
- Supporto fino a 16 canali video in risoluzione 4K
- Alimentazione a bassa tensione DC 9–16 V
- Streaming peer-to-peer JetSparrow rapido e stabile
- Crittografia TLS e mTLS con privacy avanzata
- Compatibilità con telecamere Ajax e IP ONVIF
- Supporto hard disk SATA da 3,5” fino a 16 TB
Ulteriori dettagli
Scheda tecnica
| 127058.122.WH | |
| Videostream | |
| NVR models | 16-channel With up to 4K resolution (25/30 FPS). |
| IP cameras |
|
| Storage | hard drive with a capacity of up to 16 TB (SATA connectivity, 3.5” size) HDD not included. |
| Decoding formats | H.265 H.264 |
| Bandwidth | up to 100 Mbps |
| Recommendations | The device's operating voltage is 9–16 V~. NVR is designed for indoor installation only |
| Communication channels | |
| Ethernet | up to 100 Mbps |
| Bluetooth | BLE frequency band: 2.400–2.4835 GHz To set up an Ethernet connection |
| Radio signal power | 2.5 mW (100 mW limit) |
| Key features | |
| Motion detection | NVR has built-in software to detect the motion in the frame. Possible to switch between image analysis by NVR or camera algorithms |
| In-app video management system |
|
| Visual verification of Ajax alarms | NVR allows setting up a scenario in which Ajax detectors trigger specific cameras to start recording This results straight in mobile and desktop (monitoring) apps |
| Support for ONVIF authorization | Profile S Profile T (partially) Ajax cameras and NVRs can be integrated into third-party video management systems (VMS) |
| Privacy | Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop |
| Power supply | |
| Without an installed jumper on the PSU board |
|
| With an installed jumper on the PSU board |
|
| Power consumption | up to 24 W |
| Clock battery | CR2032 battery, 3 V Only to power the system clock. |
| Anti-sabotage | |
| Tampering alarm | Notifications about attempts to detach the device from the surface or remove it from the mounting panel |
| Enclosure | |
| Color | White |
| Dimension | 193 × 193 × 47 mm |
| Weight | 583 g Without a hard drive |
| Operating temperature range | from 0 °C to +40 °C from 32 °F to 104 °F |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Complete set | NVR DC SmartBracket mounting panel Terminal adapter Ethernet cable Installation kit Quick start guide |
| Warranty | 24 months |
