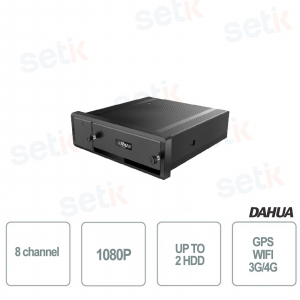

XVR MXVR6212-GCW Videoregistratore Dahua XVR a 8 Canali 5 tecnologie in 1 HDCVI/AHD/TVI/CVBS + 4 canali IP, risoluzione fino a 1080p. Compressione video fino a Smart H.265 MXVR. Uscite video: 1 VGA e 2 TV. Dotato di WIFI, GPS, 3G. Backup Mode: USB Esterno, Network Backup. Audio Bidirezionale, 9 ingressi/2 uscite Allarme. Supporta 2 HDD e 1 slot scheda SD. 2 USB 3.0, 1 USB 2.0. 1 RJ45, 2 RS485, 2 RS232. Dahua Technology
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
XVR 8 CANALI 5IN1 HDCVI/HDTVI/AHD/CVBS/ + 4 CANALI IP 1080P - WIFI - GPS - 3G - AUDIO - ALLARME - DAHUA
 XVR Registratore di sorveglianza 8 Canali 5in1 + 4 Canali IP - Dahua5 tecnologie in 1: "Hdcvi/Hdtvi/Ahd/Cvbs/Ip" - Risoluzione fino a 1080p - WIFI - GPS - 3G
Backup Mode: USB Esterno, Network Backup, Video Compressione fino a Smart H.264 - 1 VGA - 2 TV - 2 USB 3.0 - 1 USB 2.0 - 1 RJ45 - 2 RS485 - 2 RS232 - 2 HDD - 1 slot card SD
Allarme - Audio Bidirezionale - Garanzia 24 mesi
Dettagli prodotto

|   |
 DAHUA SERIE X Se vuoi conoscere meglio questa nuova serie di registratori XVR 5 in1 Dahua, leggi l'articolo che abbiamo scritto!  |
| 5 Tecnologie in 1! Questo DVR supporta 5 tecnologie differenti (HDCVI-HDTVI-AHD-CVBS-IP)  |
|
![]()  |
Onvif è lo Standard in assoluto più importante nel mondo IP. Essere Onvif garantisce una vasta gamma di dispositivi IP compatibili tra di loro (dvr/telecamere). Questo XVR supporta la versione ONVIF® 16.12  |
![]()  |
 Risoluzioni disponibili: 8 Canali + 4 Canali IP fino a 1080P  |
![]()  |
Supporta telecamere: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek e altre... (il funzionamento con i modelli qui proposti è da verificare di caso in caso)  |
|
 Supporta 2x Hard Disk SATA
  |
|
![]()  |
 Uscita VGA con risoluzione fino a 1080P  |
| Questo XVR presenta 1 Audio IN e 1 Audio OUT | |
![]()  |
Questo XVR presenta 3x Porte USB |
![]()  |
Questo XVR presenta 1 Porta RJ45 |
| 2 RS 485 per Comandi PTZ (Telecamere comandabili da remoto) | |
|
 Questo prodotto è coperto da Garanzia di 24 mesi.  |
Scheda tecnica
| Model: XVR | MXVR6212-GFW |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 8+4 channel |
| Standard |
 Analog:NTSC(525Line), PAL(625Line) HDCVI:1080P HDCVI camera IPC:1080P IPC  |
| Audio | |
| Input | 12 channel aviation connector, 1 external audio input |
| Output | 1 channel |
| Two-way talk | 1 channel Input, 1 channel Output |
| Display | |
| Interface | 1VGA, 2TV |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
| Display Split | 1/4/8/9/12 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Video/Audio Compression | smart264/H.264/G.711 |
| Record Rate |
 Main stream:12 ch@1080P(1~25/30fps) Sub stream:D1(1~6/8fps)/CIF(1~25/30fps)  |
| Bit Rate | 48~8192Kb/s |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Postrecord: 10~300 sec |
| Video Detection and Allarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
| Alarm input | 7 channels |
| Pulse input | 2 channels |
| Relay Output | 2 channels |
| Playback and Backup | |
| Playback | 4 |
| Search Mode | Time/Date, Alarm, Motion Detection & Exact search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 2 HDD |
| SD card | 1 SD card |
| Network | |
| Ethernet | RJ-45 Port (10/100Mbps) |
| Wireless Network | Built-in 3G/4G/Wi-Fi module(optional) |
| GPS | Built-in high accurate GPS module(optional) |
| Network Function | TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Auxiliary Interface | |
| USB | 3 Ports (1 rear), 2 USB 3.0 |
| RS232 | 2 Ports, for PC Communication and Keyboard |
| RS485 | 2 Ports, for PTZ Control |
| CAN | Support |
| Heater | Optional |
| Electrical | |
| Power Supply | DC 6V~36V |
| Power Consumption | <12W (Without HDD) |
| Enviromental | |
| Operating Conditions | -30°C (with heater)~ +60°C (+14°F ~ +131°F) |
| Storage Conditions | -30°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions |
 180mm×190mm×50mm (7.0" x 8.7" x 2.0")  |
| Net Weight | 2.65kg(whole package) |
| Certifications | |
| CE | FCC |
| EN50155 | ISO16750 |
