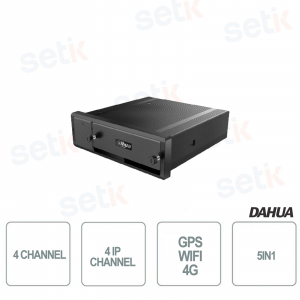

XVR Mobile MXVR4104-GFW Videoregistratore Dahua XVR a 4 Canali 5 tecnologie in 1 HDCVI/AHD/TVI/CVBS/IP + 4 Canali IP da 4 MP, risoluzione fino a 1080p. Compressione video fino a Smart H.265 MXVR. Uscite video: 1 VGA e 2 TV. Backup Mode: USB Esterno, Network Backup. Audio Bidirezionale, 9 ingressi/1 uscite Allarme. GPS,4G,WIFI, Supporta 1 HDD e 1 slot scheda SD. 3 USB 2.0. 1 RJ45, 1 RS485, 2 RS232. Dahua Technology
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>
XVR MOBILE 4 CANALI 5IN1 HDCVI/HDTVI/AHD/CVBS/IP - 4 CANALI IP - 1080P - AUDIO - ALLARME - 4G - WIFI - GPS - DAHUA
 XVR Mobile Registratore di sorveglianza 4 Canali + 4 Canali IP - 5in1 - Dahua5 tecnologie in 1: "Hdcvi/Hdtvi/Ahd/Cvbs/Ip" - Risoluzione fino a 1080p
Backup Mode: USB Esterno, Network Backup, Video Compressione fino a Smart H.265 - 1 VGA - 2 TV - 3 USB 2.0 - 1 RJ45 - GPS - 4G - WIFI - 1 RS485 - 2 RS232 - 1 HDD - 1 slot card SD
Allarme - Audio Bidirezionale - Garanzia 24 mesi
Dettagli prodotto

|   |
 DAHUA SERIE X Se vuoi conoscere meglio questa nuova serie di registratori XVR 5 in1 Dahua, leggi l'articolo che abbiamo scritto!  |
| 5 Tecnologie in 1! Questo DVR supporta 5 tecnologie differenti (HDCVI-HDTVI-AHD-CVBS-IP)  |
|
![]()  |
Onvif è lo Standard in assoluto più importante nel mondo IP. Essere Onvif garantisce una vasta gamma di dispositivi IP compatibili tra di loro (dvr/telecamere). Questo XVR supporta la versione ONVIF® 16.12  |
![]()  |
 Risoluzioni disponibili: 4 Canali + 4 Canali IP fino a 1080P  |
![]()  |
Supporta telecamere: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek e altre... (il funzionamento con i modelli qui proposti è da verificare di caso in caso)  |
|
 Supporta 2x Hard Disk SATA
  |
|
![]()  |
 Uscita VGA con risoluzione fino a 1080P  |
| Questo XVR presenta 1 Audio IN e 1 Audio OUT | |
![]()  |
Questo XVR presenta 3x Porte USB 2.0 |
![]()  |
Questo XVR presenta 1 Porta RJ45 |
| 1 RS 485 per Comandi PTZ (Telecamere comandabili da remoto) | |
|
 Questo prodotto è coperto da Garanzia di 24 mesi.  |
Scheda tecnica
| Model: XVR | MXVR4104-GFW |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 4 channels HDCVI/AHD/TVI/CVBS (Don’t support audio in when connecting AHD/TVI cameras) + 4 channel 4MP IPC |
| Two Way Talk | 1 channel Input, 1 channel Output |
| Display | |
| Interface | 1 VGA, 2 TV |
| Resolution | 800×600 |
| Display Split | 1/4/8/9 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Channel name, time, GPS, license No |
| Recording | |
| Video Compression | H.265/smart H.265 /H.264/smart H.264 |
| Audio Compression | G.711A/G.711U/PCM |
| Resolution | 4 ch@1080P realtime recording |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Postrecord: 10~300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones:396(PAL:22×18,NT SC:22×15), Video Loss & Tampering |
| Alarm input | 9 channels,Alarm1–8 are local alarm input, Alarm 9 is pulse input. |
| Alarm Output | 2 channels,1 relay out, 1 Controllable 12V out |
| Playback and Backup | |
| Playback | 1 channel |
| Search Mode | Time/Date, Alarm, Motion Detection & Exact search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 HDD |
| SD card | 1 SD card, Up to 256 GB |
| Network | |
| Ethernet | 1 RJ-45 Port (10/100Mbps) and 1 6-pin aviation connector |
| Wireless Network | Built-in 3G/4G/Wi-Fi module(optional) |
| GPS | Built-in high accurate GPS module(optional) |
| Network Function | TCP/IP, UDP, DHCP, FTP, Email, Alarm Server |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Auxiliary Interface | |
| USB | 3 USB 2.0 |
| RS232 | 2 Ports |
| RS485 | 1 Port |
| Heater | Optional |
| Electrical | |
| Power Supply | DC 6V~36V |
| Power Consumption | <8.4W (Without HDD) |
| Enviromental | |
| Operating Conditions | -30°C (with heater)~ +70°C (-22°F ~ +158°F) |
| Storage Conditions | 10 ~ 90% RH |
| Construction | |
| Dimensions |
 180mm×190mm×50mm (7.0" x 8.7" x 2.0")  |
| Net Weight | 1.92Kg (4.23 lb) (without HDD) |
| Gross Weight | 2.83Kg (6.24 lb) |
| Certifications | |
| CE | FCC |
| EN50155 | ISO16750 |
